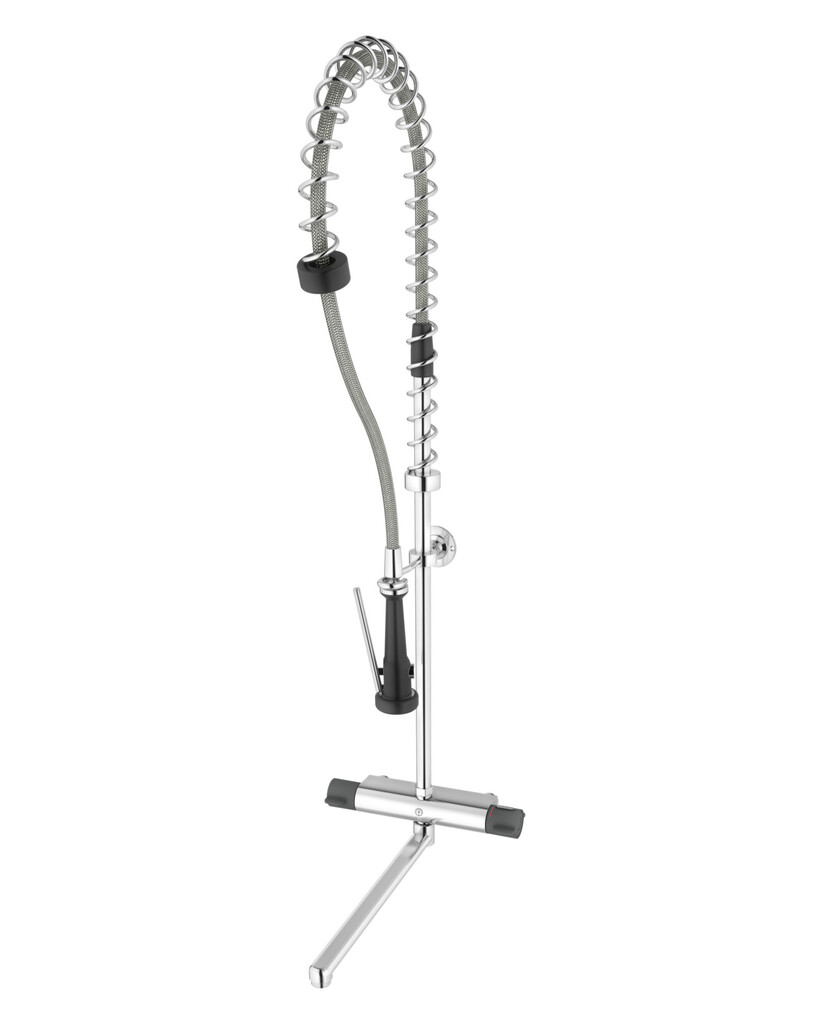

Pre rinse set New Nautic - thermostat

Pre rinse set New Nautic - thermostat

  • RSK-nr: |
  • ART-nr: GB41202372B |
  • EAN-nr: 7391530082004
ECO Flow max 5 l/m, 350 mm spout, 160 c-c
  • ECO Flow that meet market requirements
  • Hand-held rinsing nozzle that minimizes pressure surges
  • The nozzle features two different spray patterns
Smart_inside Safe_touch Even_temperature
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • Complies with Safe Water installation requirements.
Specifications Product datasheet PDF with product image Product image Flow diagram
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 70°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

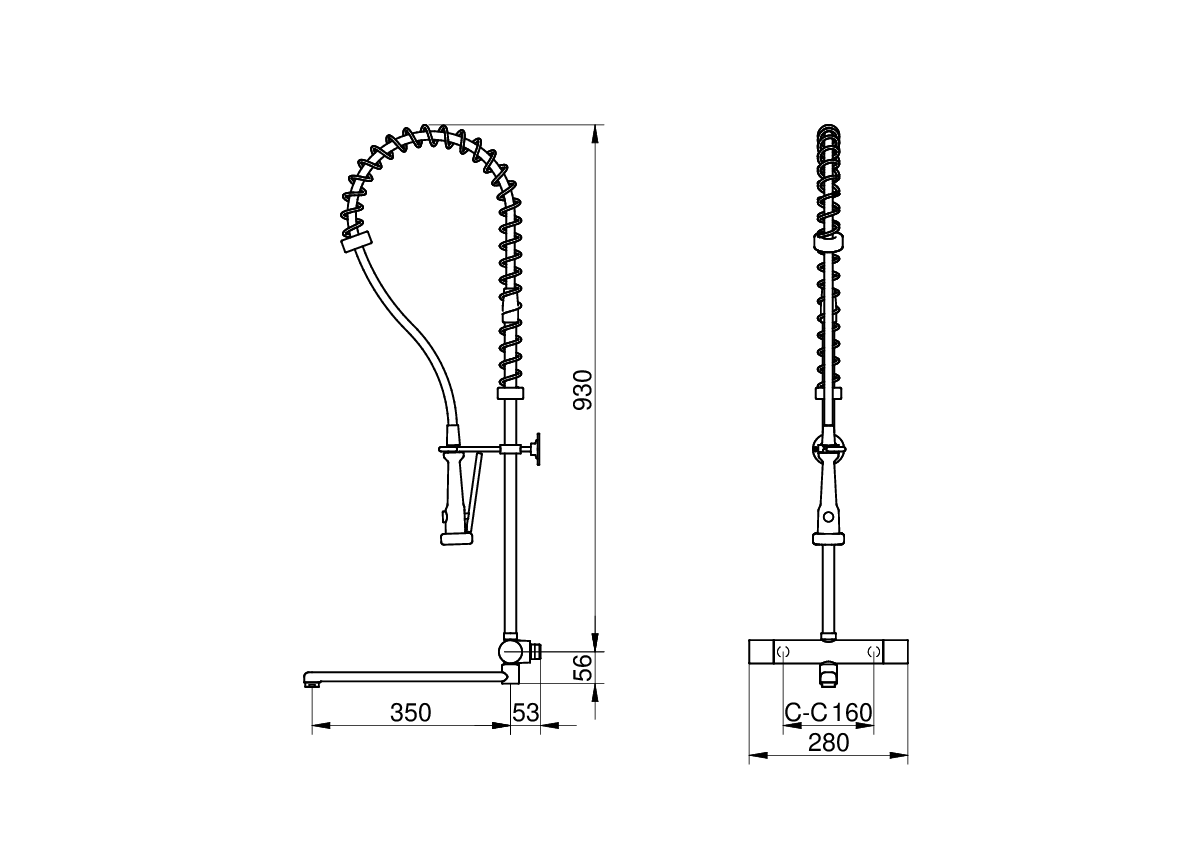

Drawing Assembly instruction Care instruction
Other info
Deep - 1000 mm
Length - 420 mm
Width - 285 mm
Features
  • Functional, ergonomic design
  • Hand-held rinsing nozzle that minimizes pressure surges when the water flow is opened and closed, can be locked for longer flushes
  • The nozzle features two different spray patterns, both with optimized rinsing capacities
  • Diverter function built into the thermostatic mixer
  • Safe Touch function minimizes the heat on the front side of the mixer
  • Responds quickly to changes in pressure and temperature, maintaining even water temperature
  • Built-in automatic hot water block for complete scald protection
  • Easy to install
