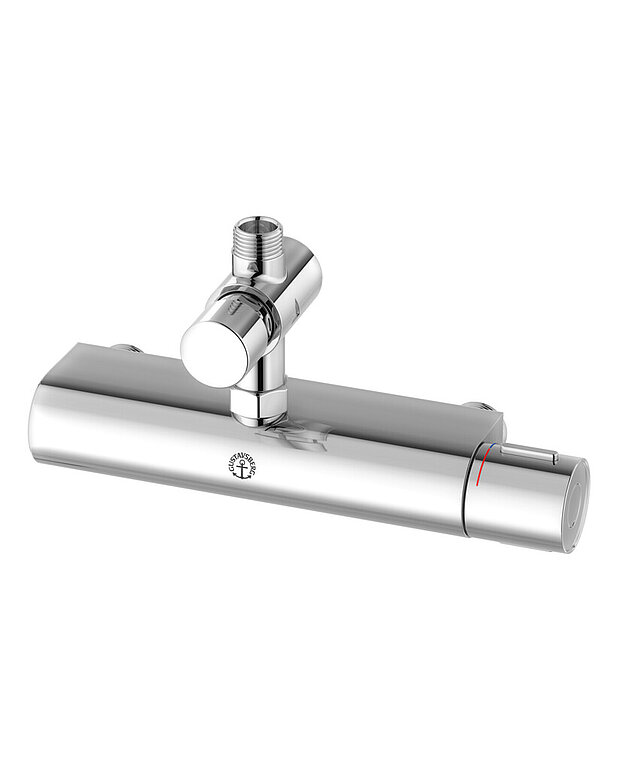

Shower mixer New Nautic - thermostat

Shower mixer New Nautic - thermostat

  • RSK-nr: |
  • ART-nr: GB41202364 |
  • EAN-nr: 7391530075709
Time valve, 160 c-c
  • Preset flushing time ~ 30 sek.
  • Flow 9 l/min at 3 bar
  • Built-in automatic hot water block for scald protection
Smart_inside Safe_touch Even_temperature Electronic.DW
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
Specifications Product datasheet PDF with product image Product image
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

Drawing Assembly instruction Care instruction
Other info
Deep - 125 mm
Length - 80 mm
Width - 235 mm
Features
  • Preset flushing time ~ 30 sek.
  • Flow 9 l/min at 3 bar
  • Built-in automatic hot water block for scald protection
  • Adjustable max. temperature for improved scald protection
  • Block button on the temperature side at comfort temperature 38°C
  • Safe Touch, minimizes the heat on the front side of the mixer
  • Reacts quickly to changes in the flow pressure and temperature to maintain a constant water temperature
  • Type-approved non-return valves in the inlet
  • Backflow protection in accordance with SS-EN 1717 [EB]
