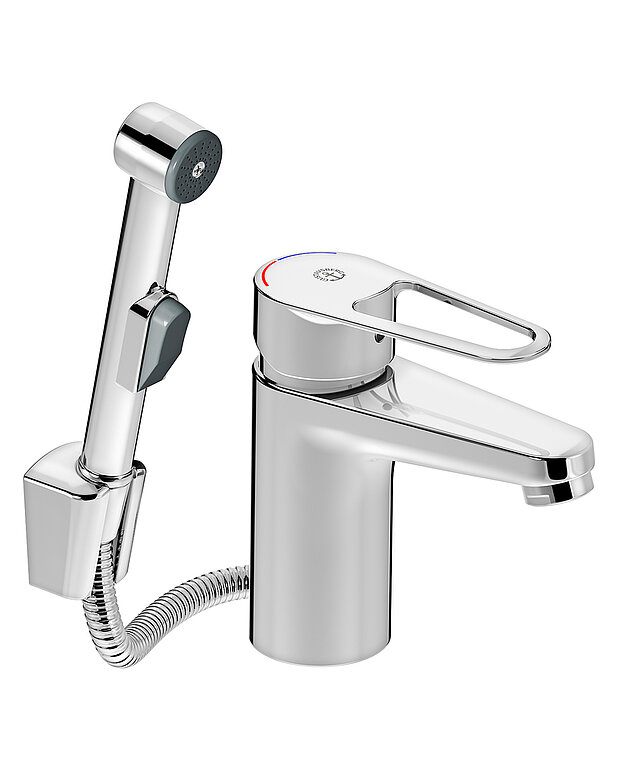

Washbasin mixer New Nautic

Washbasin mixer New Nautic

  • RSK-nr: |
  • ART-nr: GB41216151 |
  • EAN-nr: 7393792234979
With side spray and wall bracket
  • Easy grip lever with clear colour marking for hot and cold
  • Soft move, technology for smooth and precise handling
  • Patented quick fixation nut for easy installation
AdjustableFlow Smart_inside Quick fit
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
Specifications Product datasheet PDF with product image BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Product image Flow diagram
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 70°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

Drawing Assembly instruction
Other info
Deep - 75 mm
Length - 295 mm
Width - 290 mm
Max. tap capacity (at 300 kPa): 0,145 l/s
Pressure loss with flow (0,1 l/s) 143 kPa
Features
  • Easy grip lever with clear colour marking for hot and cold
  • Sidodusch inkl väggfäste underlättar rengöring och intimhygien
  • Soft move, technology for smooth and precise handling
  • Eco-flow for water and energy efficiency
  • Eco-stop, adjustable maximum flow
  • Ceramic seal to prevent dripping and ensure a long service life
  • Smart inside, sustainable construction for future requirements

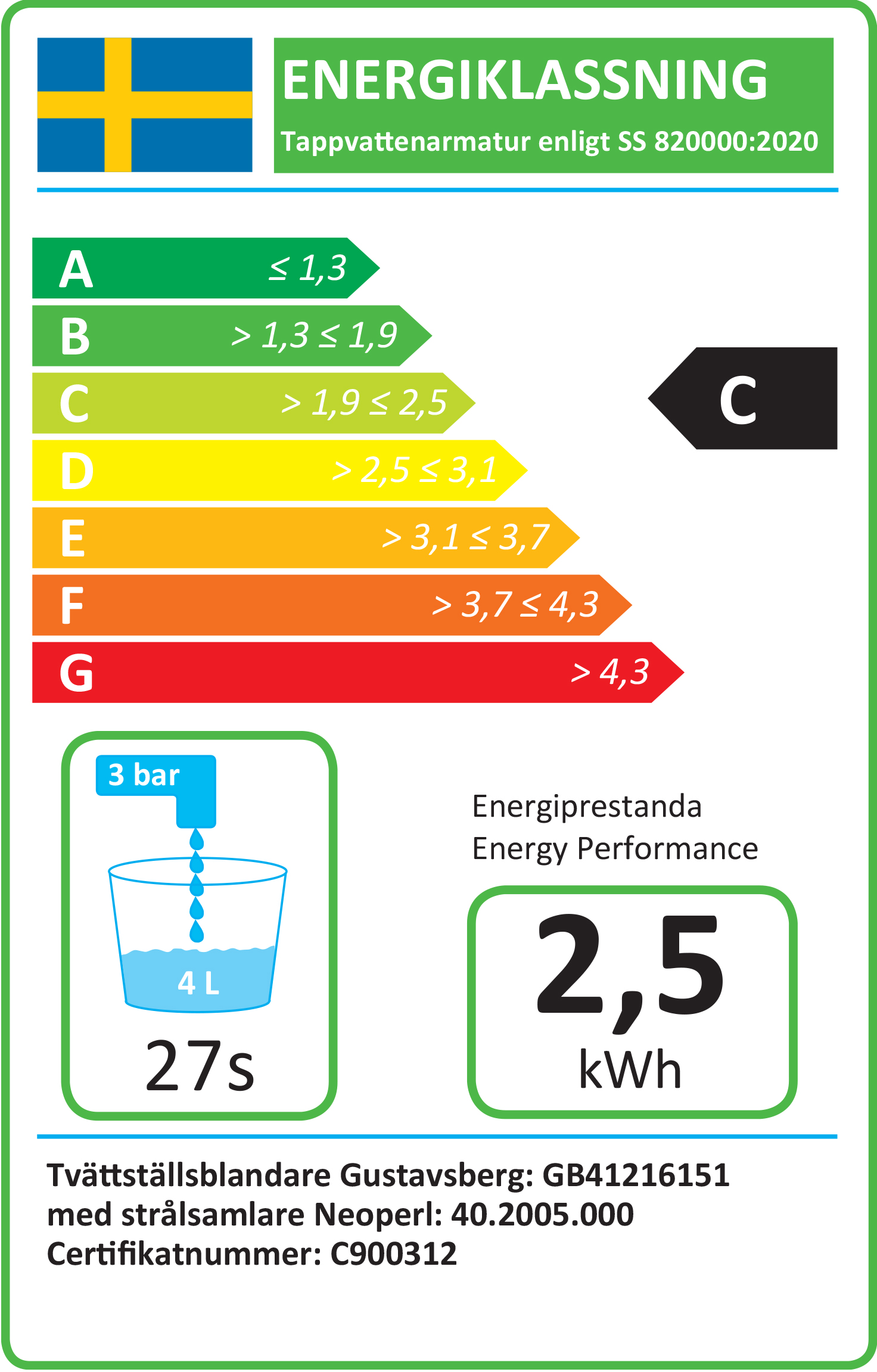

  • Energy class C
  • Adjustable max temperature for improved scald protection
  • All components made in food approved materials
  • Brass in DZR quality
  • Patented quick fixation nut for easy installation
  • Type-approved flexible water connection for simpler installation
  • Backflow protection in accordance with SS-EN 1717 [AA]
  • Can be equipted with elongated lever
  • Design Propeller AB
