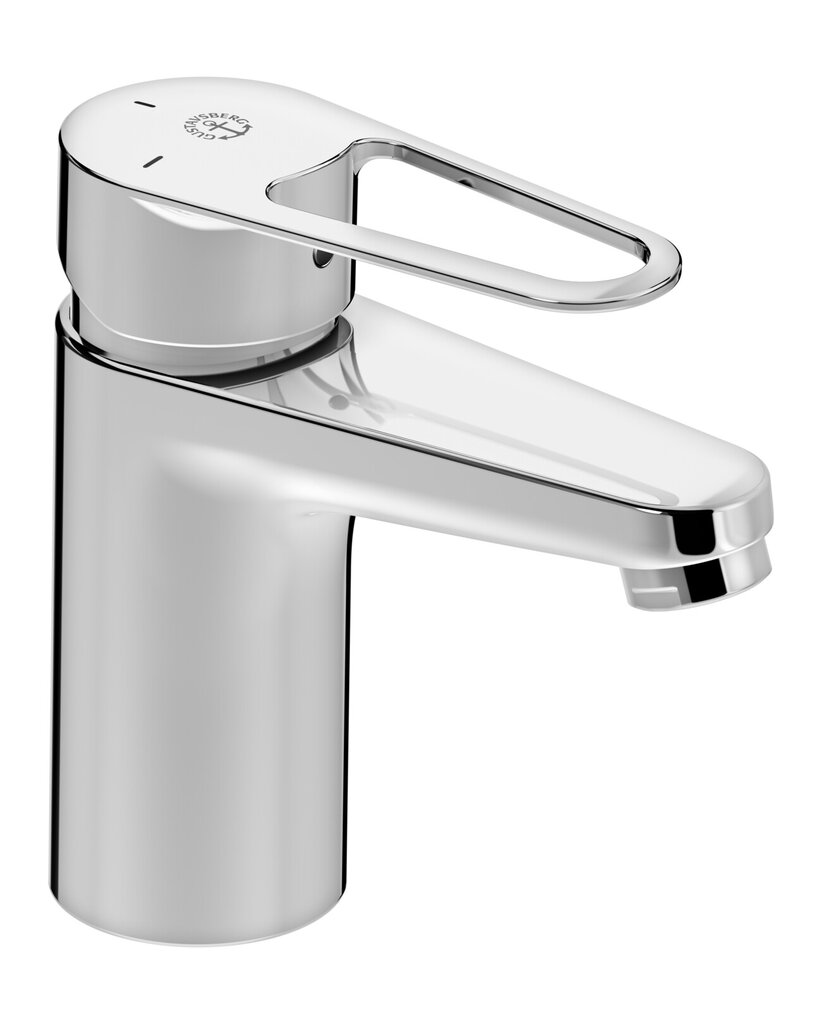

Specifications Product datasheet PDF with product image BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Product image Flow diagram

Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 70°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

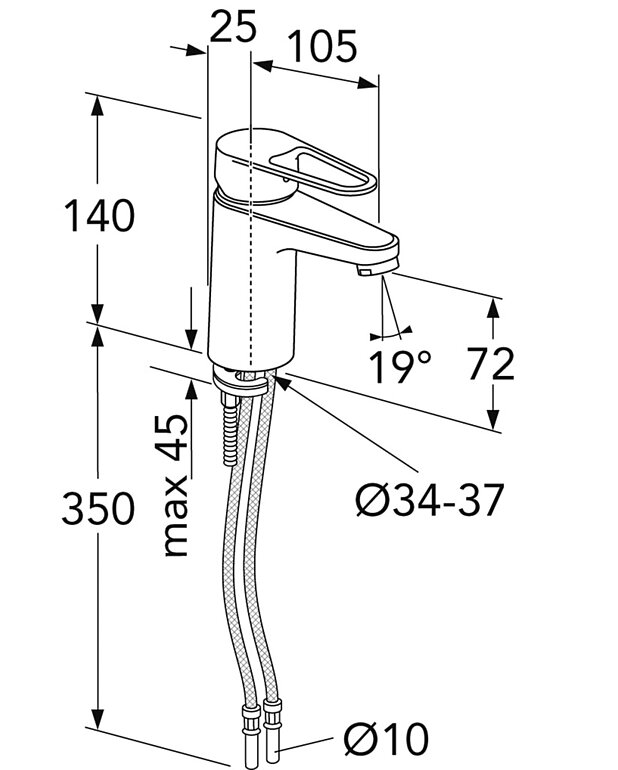

Drawing Assembly instruction

Other info

Deep - 70 mm

Length - 225 mm

Width - 205 mm

Max. tap capacity (at 300 kPa): 0,0317 l/s

Features

Energy class ACold-start, only cold water when the lever is in straight forward position
Easy grip lever with clear colour marking for hot and cold
Soft move, technology for smooth and precise handling
Eco-flow for water and energy efficiency
Eco-stop, adjustable maximum flow
Ceramic seal to prevent dripping and ensure a long service life
Smart inside, sustainable construction for future requirements
Water projection 19°, makes space for hands
Adjustable max temperature for improved scald protection
All components made in food approved materials
Lead free brass in DZR quality
Patented quick fixation nut for easy installation
Type-approved flexible water connection for simpler installation
Backflow protection in accordance with SS-EN 1717 [AA]
Can be equipted with elongated lever
Design Propeller AB
