Bathroom sink faucet Nautic

Energy class A, saves water and energy

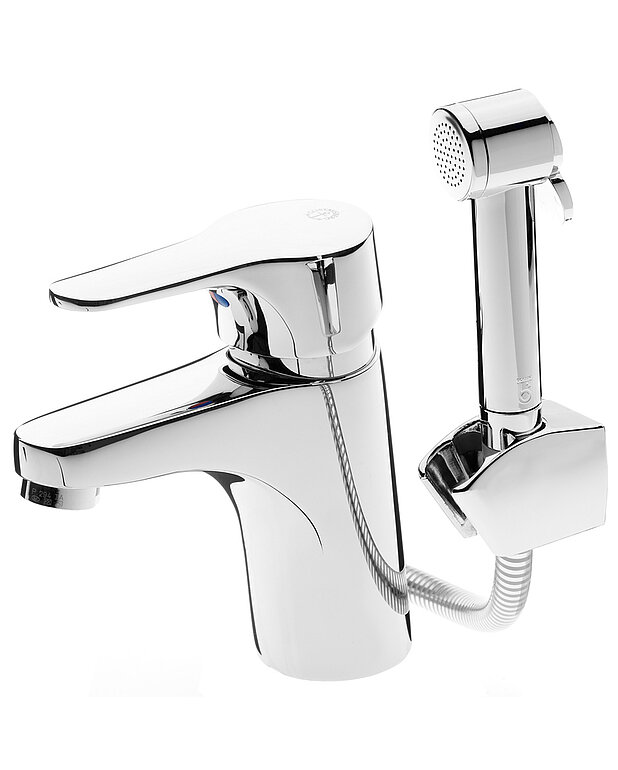

Bathroom sink faucet Nautic

With side spray, wall holder and lifting shaft

  • Energy class A, saves water and energy
  • Eco-start, 17°C when lever straight forward
  • Adjustable comfort flow and comfort temperature

Article number: GB41214141
EAN-number: 7393792217644

PRODUCT INFORMATION

Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

Assembly Instruction

Drawing

Standards & Approvals

    • Complies with Safe Water installation requirements
    • Energy class A, 1.41 kWh

    Other info

    • Deep - 75 mm
    • Length - 295 mm
    • Width - 285 mm

    Features

    • Timeless and harmonic design by Rolf Herrström
    • Energy class A, saves water and energy
    • All components made with food-safe materials
    • Side sprayer incl. wall holder facilitates cleaning and intimate hygiene
    • Adjustable comfort flow (water-saving)
    • Adjustable comfort temperature (energy-saving)
    • Spring return to comfort position (water-saving)
    • Eco-start, 17°C when lever straight forward
    • Adjustable max temperature for increased scald protection
    • Ceramic cartridge ensures non-drip operation and longevity
    • Backflow protection in accordance with SS-EN 1717 [AA]
    Show moreShow less

    Included in the delivery

    • Side spray, GB41633860 33
    • Shower hose, GB636263 00
    • Wall holder, GB41637575

    Acessories and assembly products
