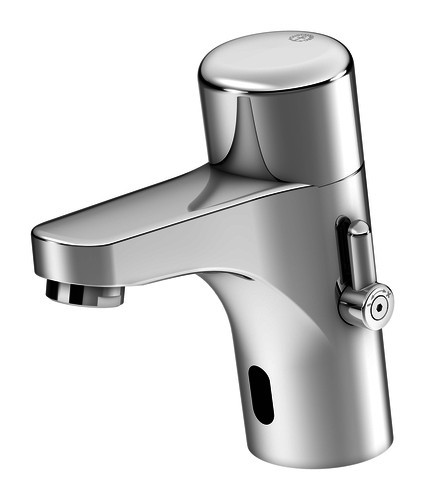

Bathroom sink faucet Nautic - sensor-controlled

Batteries included, installed in the faucet

Bathroom sink faucet Nautic - sensor-controlled

  • Batteries included, installed in the faucet
  • Simple installation with self-calibration
  • Smart function for cleaning and prevention of sabotage

Article number: GB41214081
EAN-number: 7393792228824

Remove from listADD TO WISHLISTLoading...

FIND A RETAILER

PRODUCT INFORMATION

Specifications

Product datasheet

Product datasheet with product image

BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa)

Flow chart

Product image

Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 70°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

Assembly Instruction

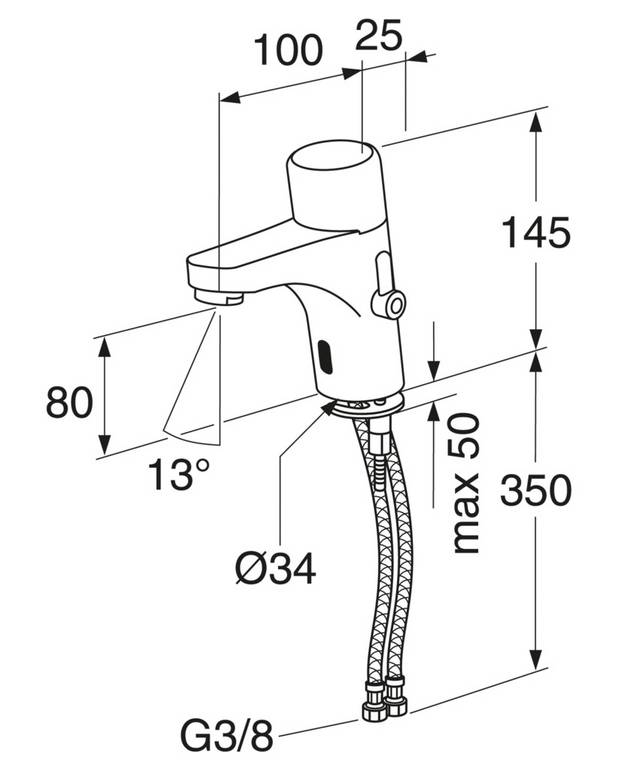

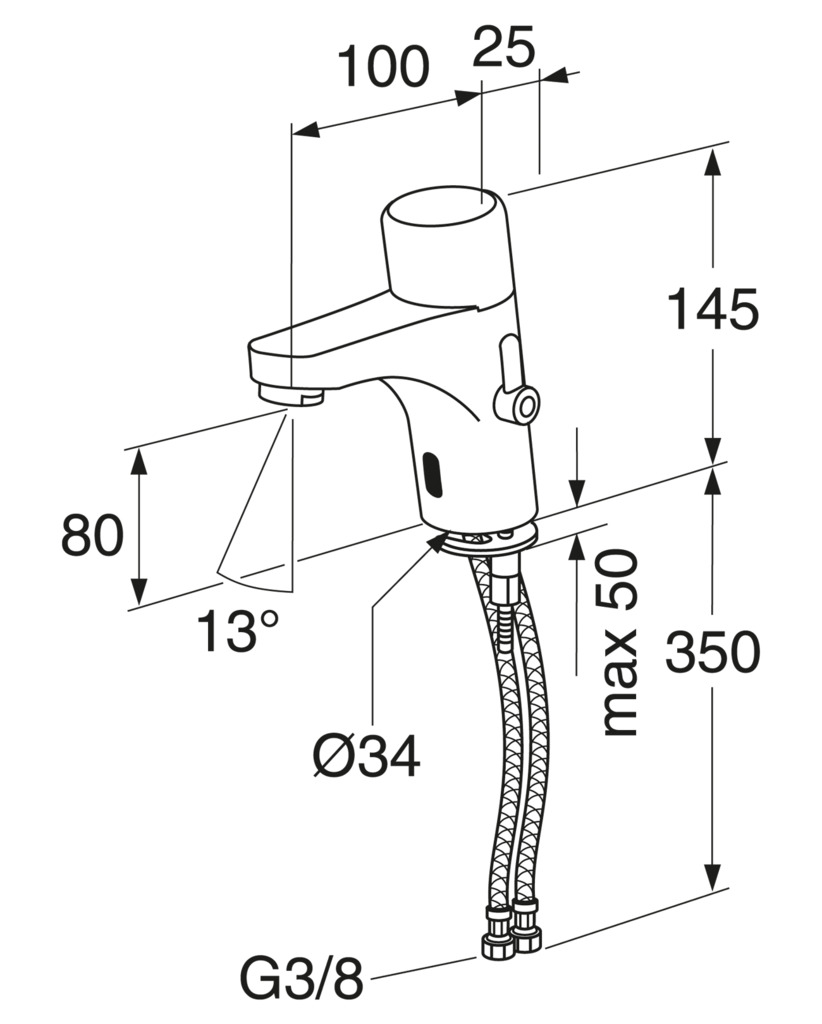

Drawing

Care instruction

video1

Standards & Approvals

    • Complies with Safe Water installation requirements.

    Other info

    • Deep - 70 mm
    • Length - 225 mm
    • Width - 205 mm

    Features

    • All components made with food-safe materials
    • Simple installation with self-calibration
    • Possibility to activate legionella flushing (automatically flushes for 10 seconds when the faucet has not been used for 24 hours)
    • Smart function inactivates the faucet for one minute so faucet and sink can be easily cleaned
    • Sabotage-proof: if an unmovable object is placed in front of sensor, the faucet only runs for 15 seconds
    • Batteries included, installed in the faucet
