Sink lift 1704

Sink lift 1704

  • RSK-nr: |
  • ART-nr: GB88170401 |
  • EAN-nr: 7393792212137
  • Fits all bolt-mounted sinks
  • Can be raised and lowered (up to 315 mm)
  • Control arm can be placed to either right or left side
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
Specifications Product datasheet PDF with product image BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Product image
Assembling & Care

Installation instructions included with offset dimensions for recommended height. Flexible water and waste pipes available as options. Unit´s frame is mounted by hanging directly on wall. Anchor pins for solid wall materials included.

Drawing Care instruction
Other info

Steel with Rilsan finish. Rilsan is a powder-coat finish (thermoplastic polyamide) with very high performance properties against rust, corrosives, impact,wear and chemical effect.

Deep - 895 mm
Length - 120 mm
Width - 552 mm

Control arm can be placed to either right or left side. Height adjustment 315 mm. Fits all bolt-mounted sinks. NB! Sink, faucet and tubes not included.

Features
  • Made from steel with Rilsan finish. High performance against rust, corrosives, impact and chemical effect
  • Fits all bolt-mounted sinks
  • Can be raised and lowered up to 315 mm
  • Control arm can be placed to either right or left side

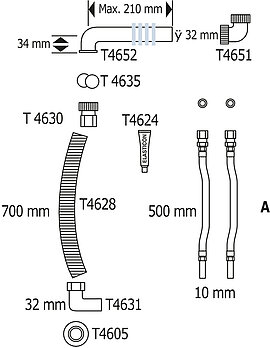

  • Compatible with flexible water and waste pipe tubes, tube set 1708
