Shower column New Nautic Square

Shower column New Nautic Square

  • RSK-nr: |
  • ART-nr: GB41202335 |
  • EAN-nr: 7391530085227
160 c-c
  • Super slim head shower with generous water flow
  • 3-functional hand shower with a pushbutton
  • A stylish mixer with grip-friendly handles in innovative design
Smart_inside Safe_touch Even_temperature
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
Specifications Product datasheet PDF with product image Product image Flow diagram Additional info Mounting instruction ceiling shower
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

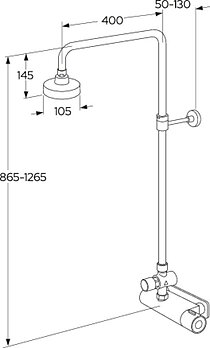

Drawing Assembly instruction Care instruction
Other info
Deep - 1265 mm
Length - 655 mm
Width - 285 mm
Max. tap capacity (at 300 kPa): 0,465 l/s
Pressure loss with flow (0,2 l/s) 56 kPa
Features
  • Delivered with New Nautic thermostatic mixer 160 c-c
  • Super slim square head shower 250x250 mm
  • Easy clean – designed with smart nozzles that make it simple to wipe off any limescale deposits
  • The head shower and shower arm are turnable and can be adjusted completely individually
  • 400 mm long shower arm provides a generous shower area
  • Telescopically adjustable height 770-1165 mm
  • Flexible wall bracket 50-130 mm for easy installation
  • 3-functional hand shower with a button
  • Hand shower on slider
  • 1,75 m metal braided shower hose
  • Diverter function in the flow handle
  • Built-in automatic hot water block for scald protection
  • Block button at comfort temperature 38°C
  • Safe Touch reduces heat on the front of the mixer
  • Reacts quickly to changes in heat and pressure so as to maintain the correct temperature at all times
  • Ceramic shutdown for drip fuse and long service life, as well as simplifying use for small and weak hands
  • Type-approved non-return valves in the inlet
  • Backflow protection in accordance with SS-EN 1717 [EB]
  • The shower set can be mounted with screws or glue
  • Can be combined with Gustavsberg bathtub spout
