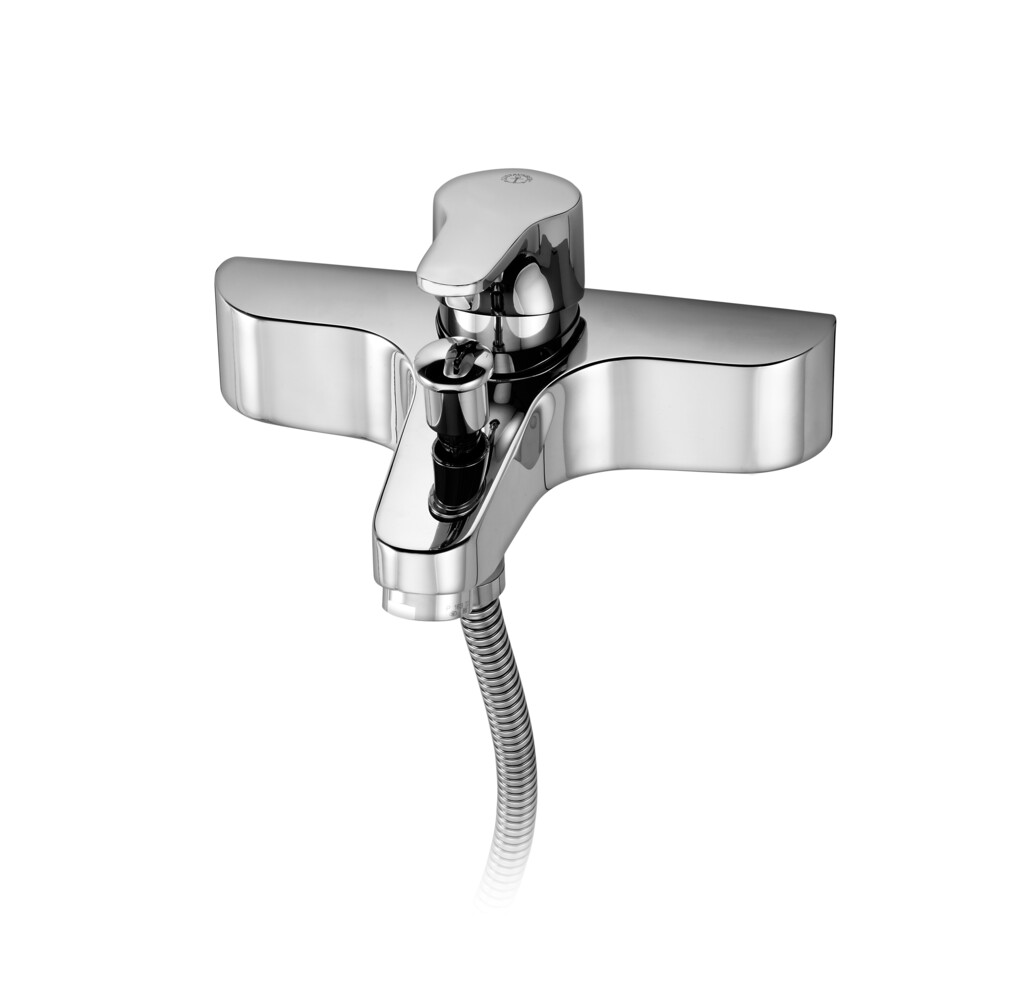

Tub faucet Nautic - single-lever

Tub faucet Nautic - single-lever

  • RSK-nr: |
  • ART-nr: GB41204023 |
  • EAN-nr: 7393792217736
160 c-c
  • Adjustable comfort flow can be activated as needed
  • Adjustable max temperature for increased scald protection

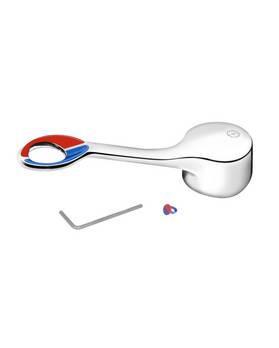

  • Can be adjusted for universal accessibility with extended lever
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • Complies with Safe Water installation requirements.
Specifications Product datasheet PDF with product image Product image Flow diagram
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

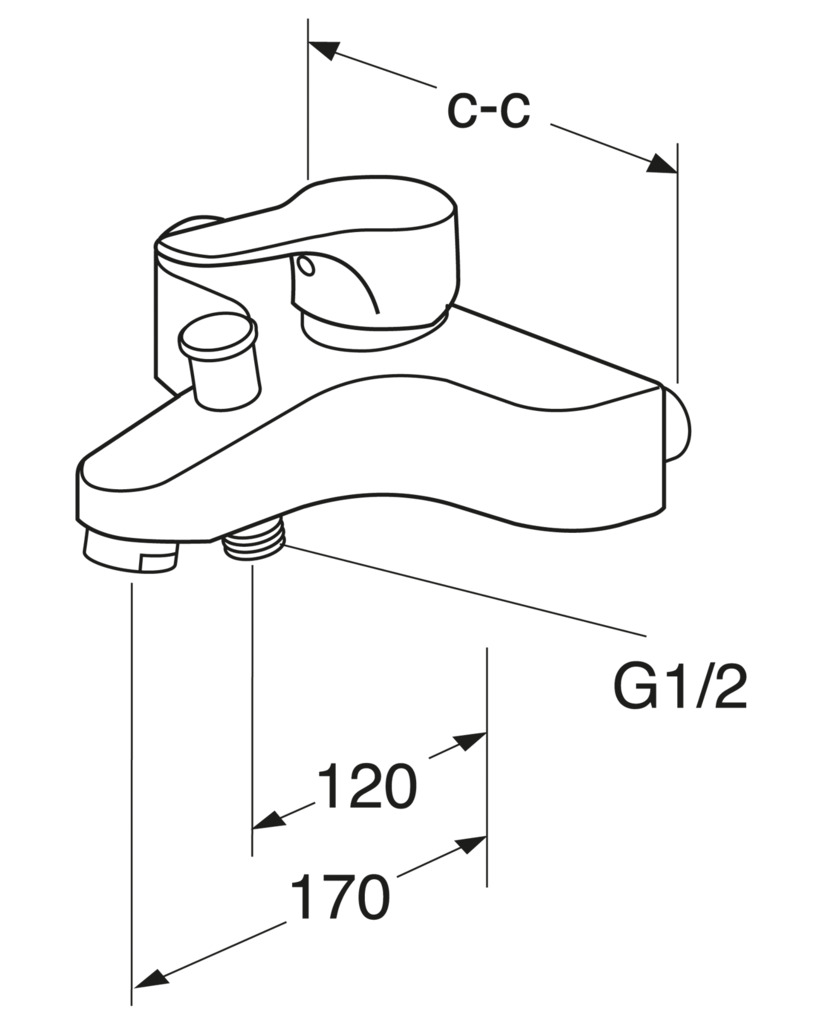

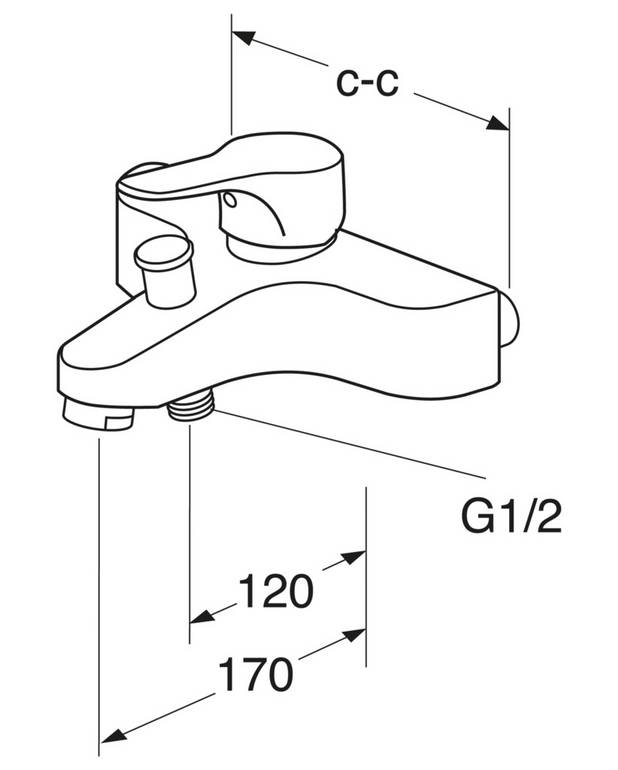

Drawing Assembly instruction Care instruction
Other info

The faucet is also available as 150 c-c with item number GB41214023, RSK-no. 811 41 72.

Deep - 115 mm
Length - 230 mm
Width - 185 mm
Features
  • Timeless and harmonic design
  • All components made with food-safe materials
  • Pull diverter located on spout changes flow path from bath to shower with automatic return to bath
  • Adjustable comfort flow (water-saving) is deactivated for full flow, can be activated
