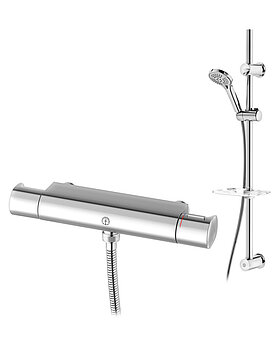

Shower package Atlantic 2.1 - Thermostat

Shower package Atlantic 2.1 - Thermostat

  • RSK-nr: |
  • ART-nr: GB412113870 |
  • EAN-nr: 7391530076461
Incl. Shower set, lead-free, energy class A, 150 c-c
  • Safe Touch, minimizes the heat on the front of the mixer
  • Even water temperature during pressure and temperature changes
  • Contains less than 0.1% lead
Smart_inside Safe_touch Even_temperature Lead_free
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • 2021:1

    2021:1

  • saker vatten
  • 3816

    3816

  • EUFI29-22005583-TH

    EUFI29-22005583-TH

  • C900798

    C900798

Specifications Product datasheet BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Product image Flow diagram
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

Drawing Assembly instruction Care instruction
Packaging information
Length : 775 mm | Width : 145 mm | Height : 80 mm
Weight : 3 kg
Quantity in the package : 1

For product specific measurement, see drawing in the carousel.

Other info
Max. tap capacity (at 300 kPa): 0,1 l/s
Pressure loss with flow (0,1 l/s) 300 kPa
Features
  • Knob with clear color marking for hot and coldBuilt-in automatic hot water shut-off for scalding protection
  • Adjustable maximum temperature for increased scalding protection
  • Lock button on the temperature side at a comfort temperature of 38°C
  • Safe Touch, minimizes the heat on the front of the mixer
  • Reacts quickly to pressure and temperature changes in the water flow, which provides an even water temperature
  • Ceramic shut-off for drip protection and long life, also simplifies use for small and weak hands
  • Type-approved non-return valves in the inlets
  • Backflow protection according to SS-EN 1717 [EB]
  • Can be completed with Gustavsberg bathtub spout
