Product information

Standards & Approvals

Specifications Product datasheet PDF with product image Product image Flow diagram

Assembling & Care

Mounted according to the instructions. Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

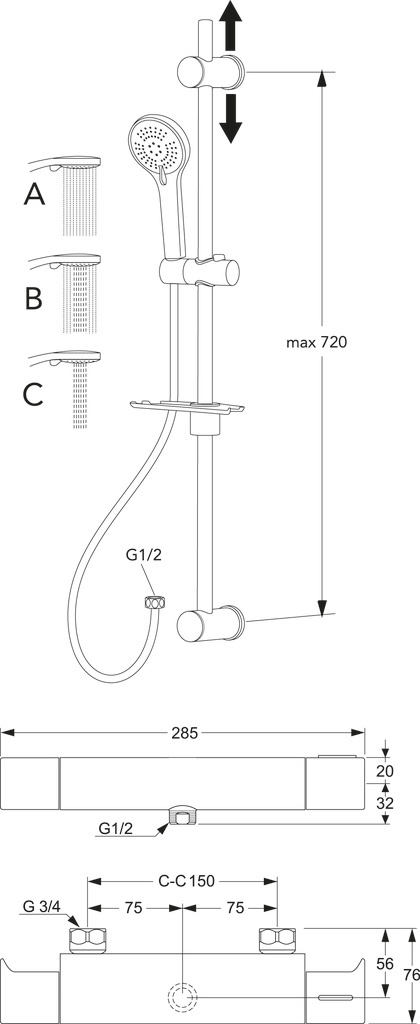

Drawing Assembly instruction

Other info

Deep - 105 mm

Length - 930 mm

Width - 155 mm

Max. tap capacity (at 300 kPa): 0,11 l/s

Pressure loss with flow (0,1 l/s) 140 kPa

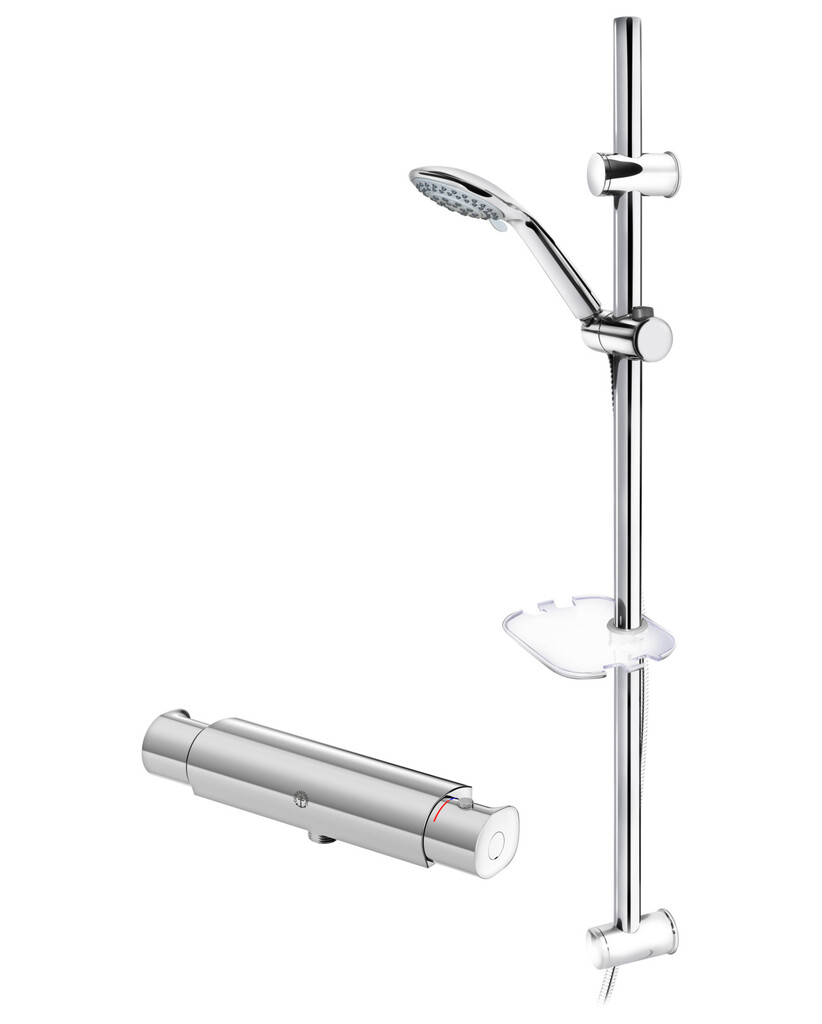

Termostatblandare GB41205004 0 / Duschset GB41103250.

Features

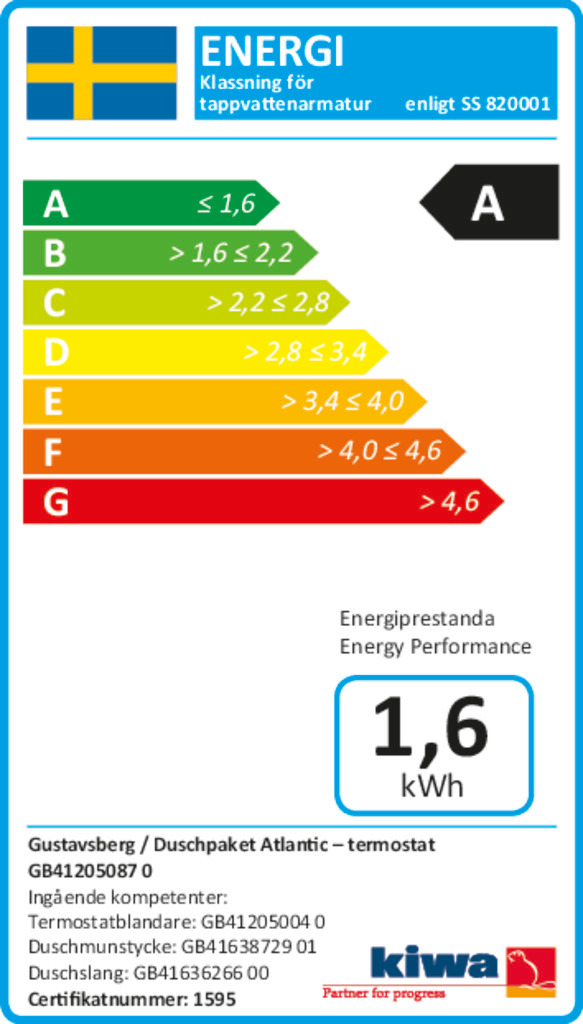

Energy class A, saves energy and water
Contains less than 0.1% lead
Water- and energy-saving hand shower
3-function hand shower, easy to wipe off any limescale deposits
PVC-free shower hose 1.75 m
Wall bracket with adjustable c-c measurement
The shower set can be mounted with screws or glue
Knob with clear color marking for hot and cold
Built-in automatic hot water block for scald protection
Adjustable max. temperature for improved scald protection
Block button on the temperature side at comfort temperature 38°C
Safe Touch, minimises the heat on the front side of the mixer
Reacts quickly to changes in the flow pressure and temperature to maintain a constant water temperature
Ceramic shut-off to prevent dripping, ensure a long service life and to simplify the use for small and weak hands
Type-approved non-return valves in the inlet
Backflow protection in accordance with SS-EN 1717 [EB]

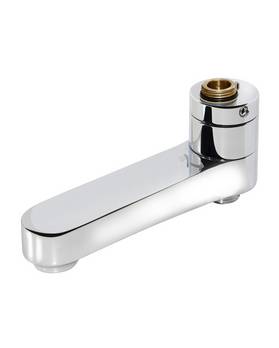

Can be supplemented with Gustavsberg bathtub spout
