Shower mixer Ducentic - thermostat

Shower mixer Ducentic - thermostat

  • RSK-nr: |
  • ART-nr: GB4121700419 |
  • EAN-nr: 7391530088709

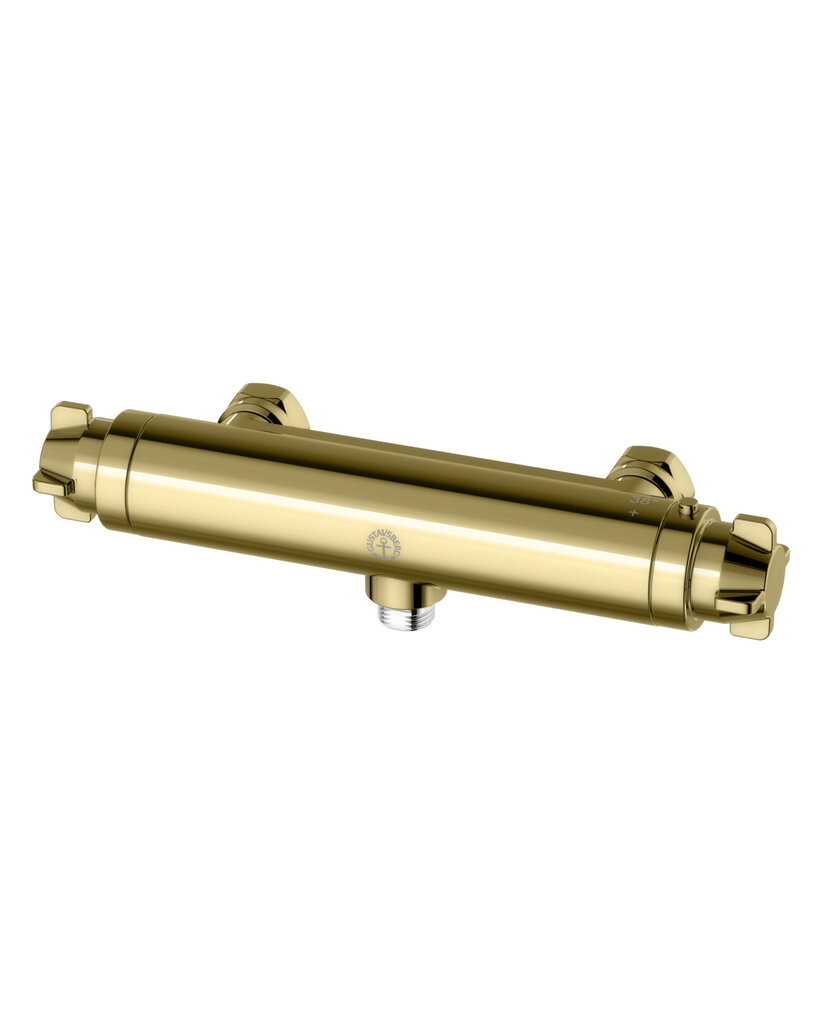

150 c-c, Polished brass
  • Inspired by traditional and modern design
  • Details that enhance the style
  • Available in Polished Brass and Chrome
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • 2026:1

    2026:1

Specifications Product datasheet Product image Flow diagram
Assembling & Care
Drawing Assembly instruction
Packaging information
Length : 292 mm | Width : 95 mm | Height : 74 mm
Weight : 1.75 kg
Quantity in the package : 1

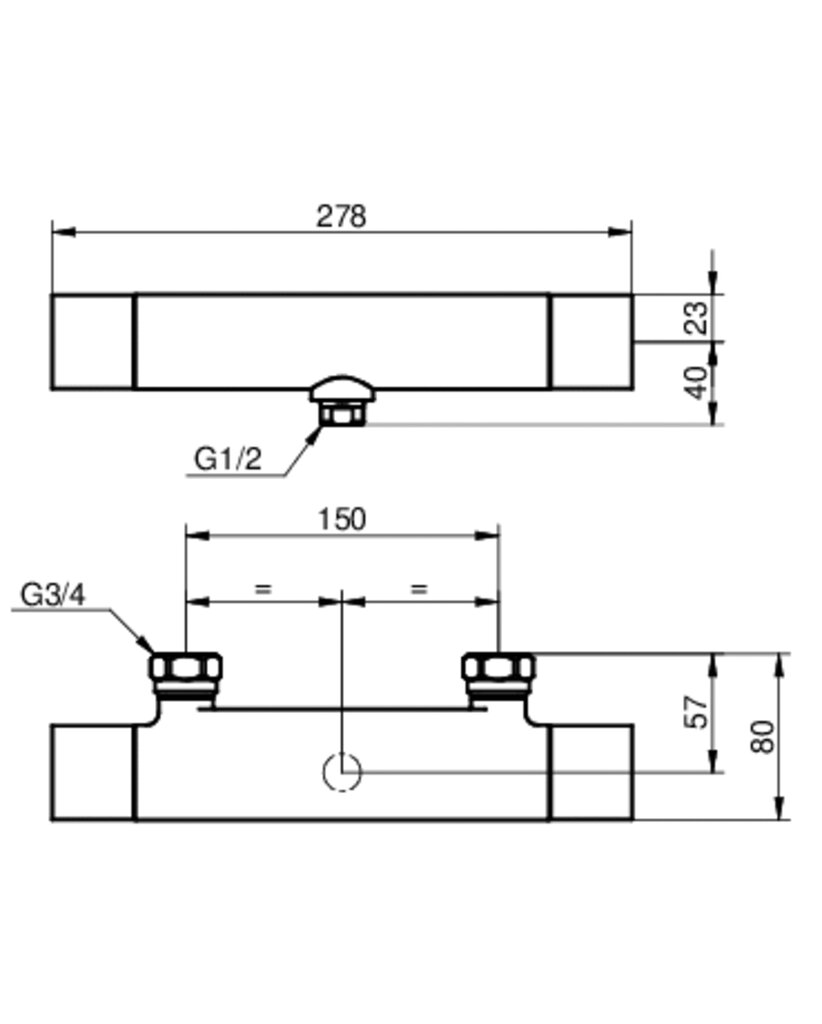

For product specific measurement, see drawing in the carousel.

Other info
Max. tap capacity (at 300 kPa): 0,352 l/s
Pressure loss with flow (0,33 l/s) 264 kPa
Features
  • Inspired by traditional and modern designBuilt-in automatic hot water shut-off for scalding protection
  • Lock button on the temperature side at a comfort temperature of 38°C
  • Adjustable maximum temperature for increased scalding protection
  • Safe Touch, minimizes the heat on the front of the mixer
  • Reacts quickly to pressure and temperature changes in the water flow, which provides an even water temperature
  • Ceramic shut-off for drip protection and long life, also simplifies use for small and weak hands
  • Type-approved non-return valves in the inlets
  • Backflow protection according to SS-EN 1717 [EB]
  • Available in chrome and polished brass
  • Can be supplemented with all outlet pipes

Inspired

Shower mixer Ducentic - thermostat - Details that enhance the style

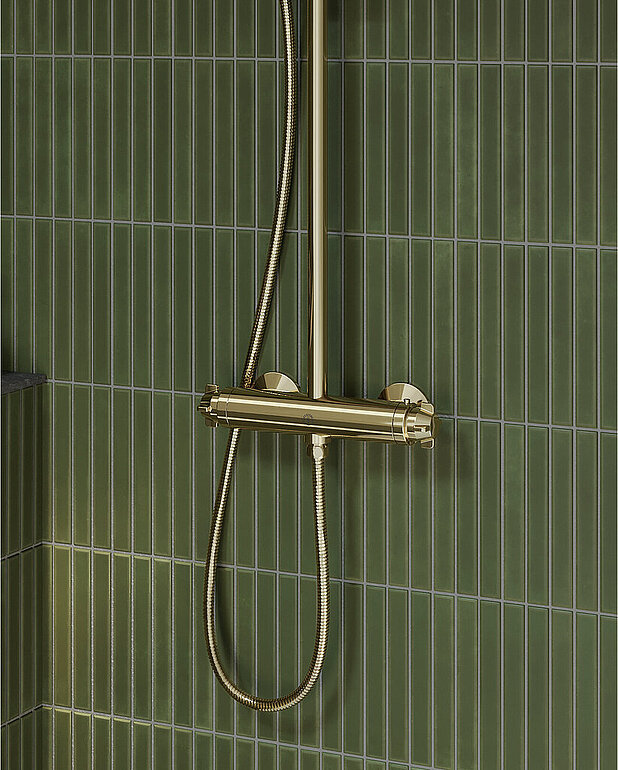

Shower mixer Ducentic - thermostat - Available in Polished Brass and Chrome
