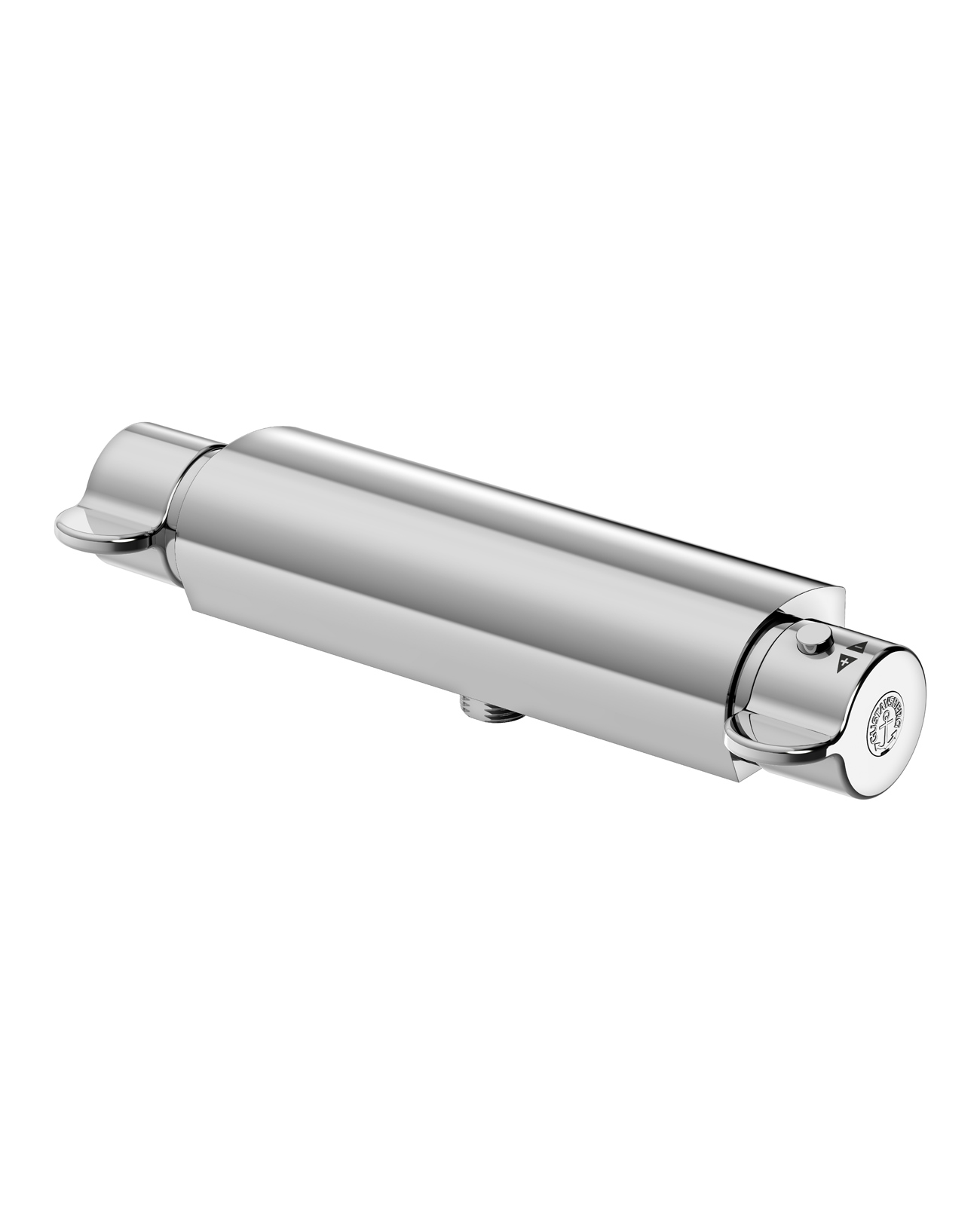

Shower mixer Nordic³ - thermostat

Shower mixer Nordic³ - thermostat

  • RSK-nr: |
  • ART-nr: GB41205604 |
  • EAN-nr: 7393792229418
Outlet downward, 160 c-c.
  • Safe Tough reduces the heat on the front of the faucet.Maintains even water temperature upon pressure and temperature changesCan be expanded with bathtub spout
Safe_touch Even_temperature
Product information Product information Spare parts Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • Complies with Safe Water installation requirements.
Specifications Product datasheet PDF with product image BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Product image Flow diagram
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

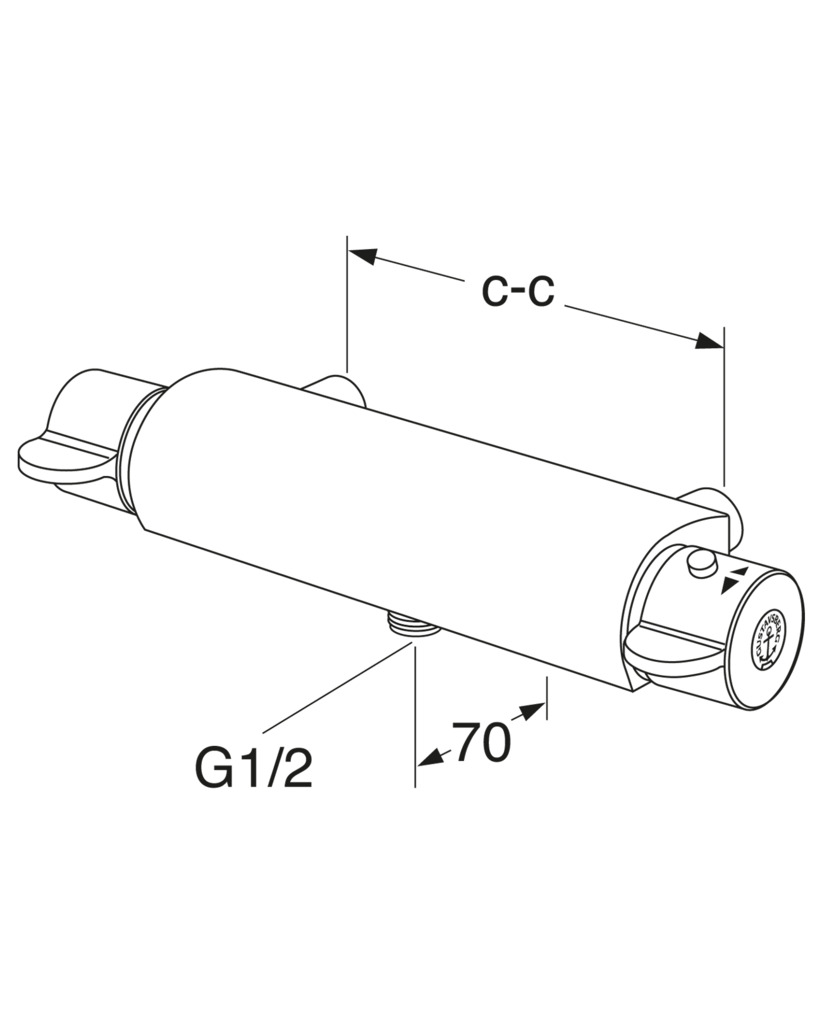

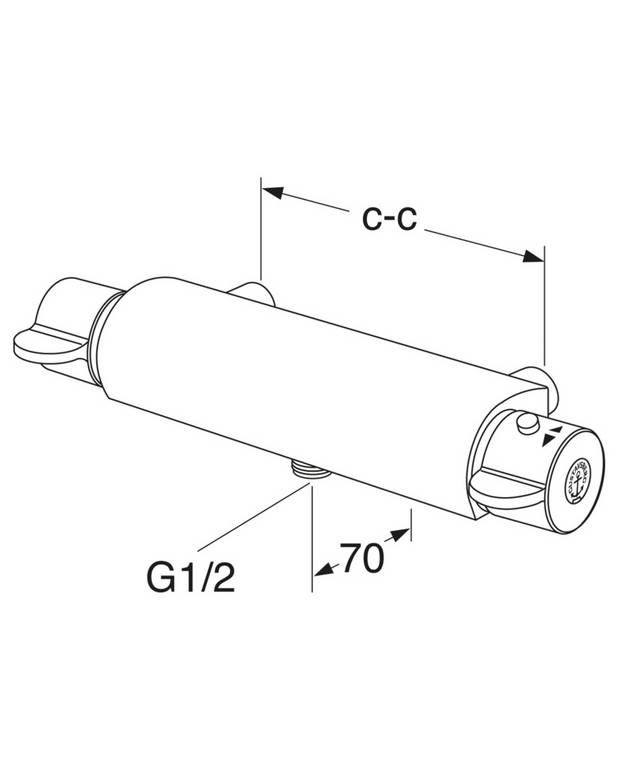

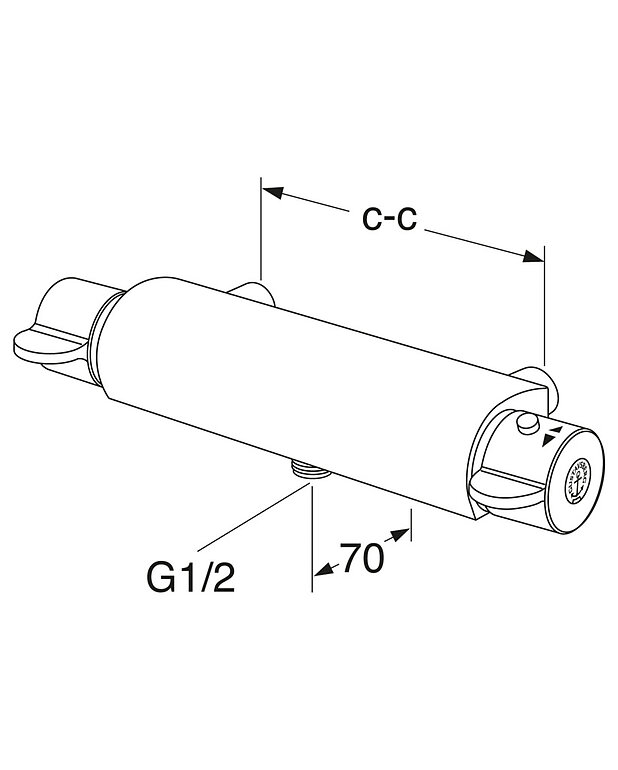

Drawing Assembly instruction Care instruction
Other info
Deep - 75 mm
Length - 370 mm
Width - 105 mm
Max. tap capacity (at 300 kPa): 0,46 l/s
Pressure loss with flow (0,2 l/s) 57 kPa
Features
  • Scandinavian design by Jon EliasonAll components made with food-safe materialsBuilt-in automatic hot water block for scald protectionBlock button on the temperature side at comfort temperature 38°CAdjustable max temperature for increased scald protectionSafe Touch f
