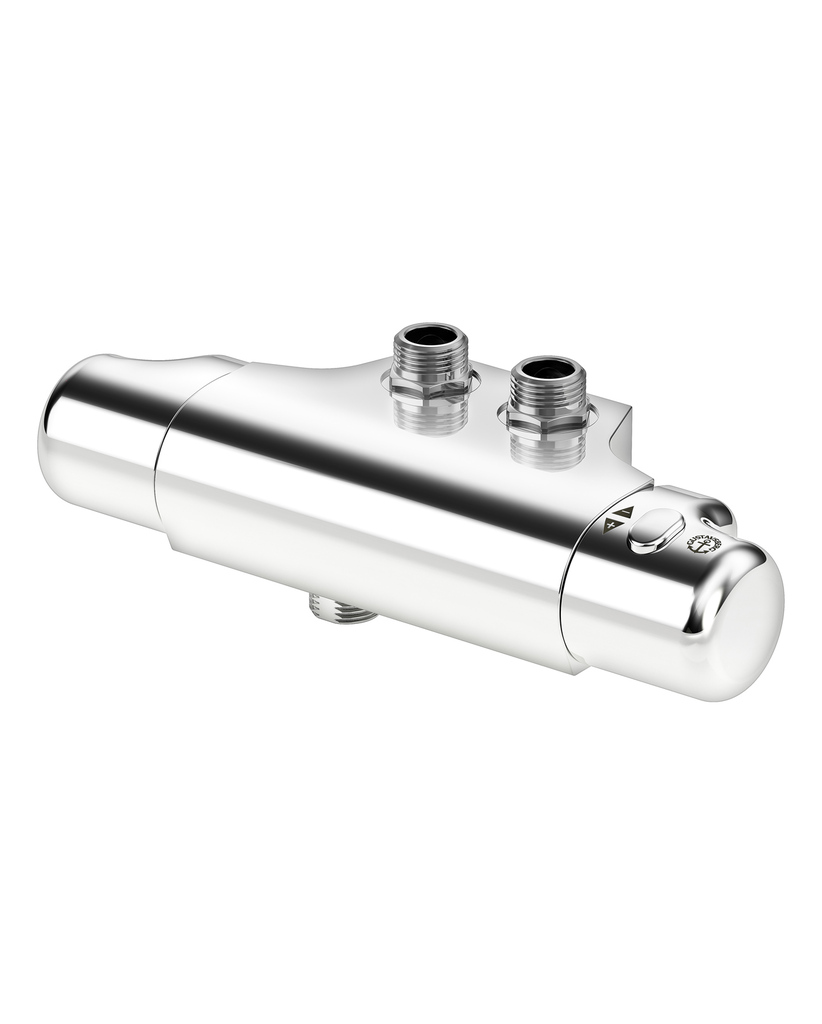

Shower mixer Logic - thermostat, 40 c-c

Shower mixer Logic - thermostat, 40 c-c

  • RSK-nr: |
  • ART-nr: GB41204944 |
  • EAN-nr: 7393792229944
With pipe connection upwards, can be shifted
  • Safe Touch reduces the heat on the front of the mixer
  • Maintains even water temperature
  • Can be expanded with bathtub spout
Safe_touch Even_temperature
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • Complies with Safe Water installation requirements.
Specifications Product datasheet PDF with product image Product image Flow diagram
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

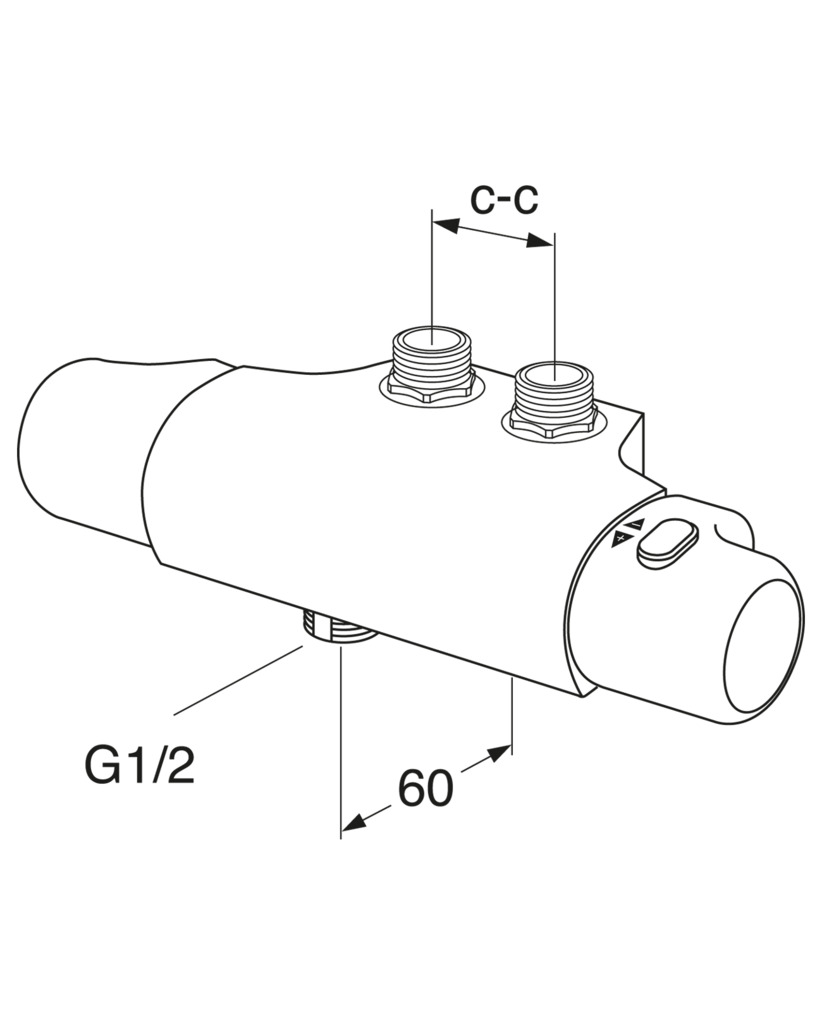

Drawing Assembly instruction Care instruction
Other info
Deep - 70 mm
Length - 225 mm
Width - 205 mm
Features
  • Organic design by Jon EliasonAll components made with food-safe materials
  • Easy-to-grasp knob
  • Built-in automatic hot water block for scald protection
  • Block button on the temperature side at comfort temperature 38°C
  • Adjustable max temperature for increased scald protection
  • Safe Touch reduces heat on the front of the faucet
  • Responds quickly to changes in pressure and temperature, maintaining even water temperature
  • Ceramic cartridge ensures non-drip operation and longevity
  • Type-approved non-return valves in the inlet
  • Backflow protection in accordance with SS-EN 1717 [EB]
  • Can be expanded with bathtub spout
