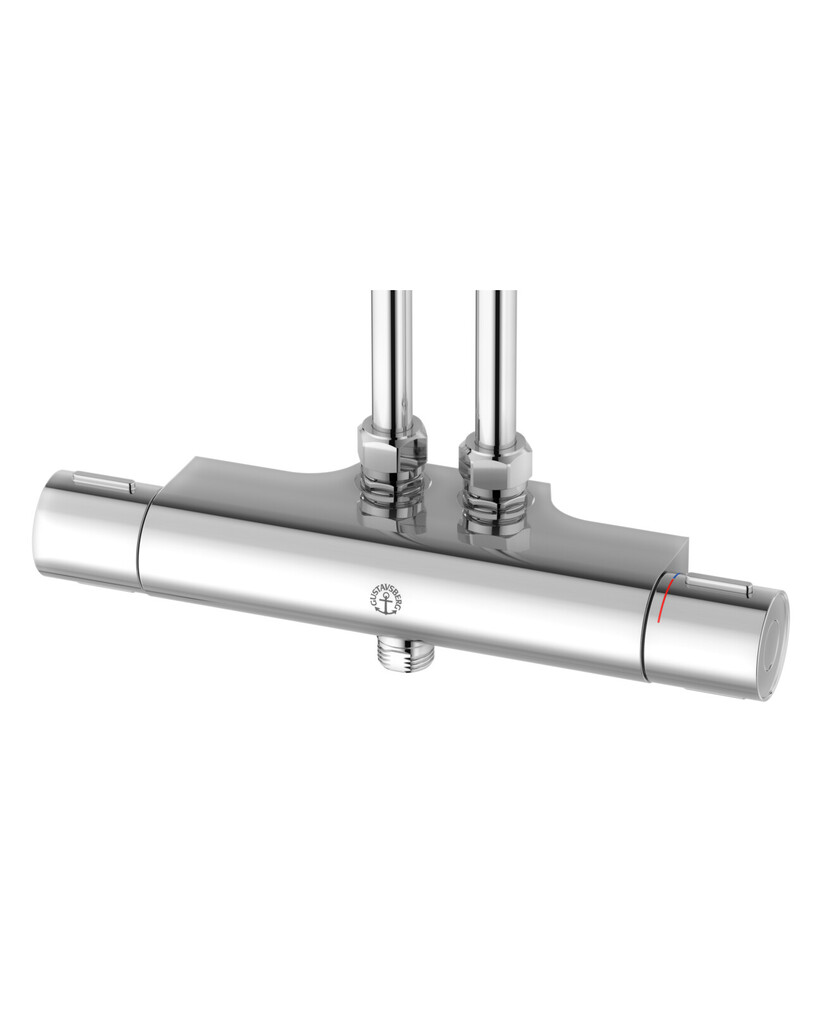

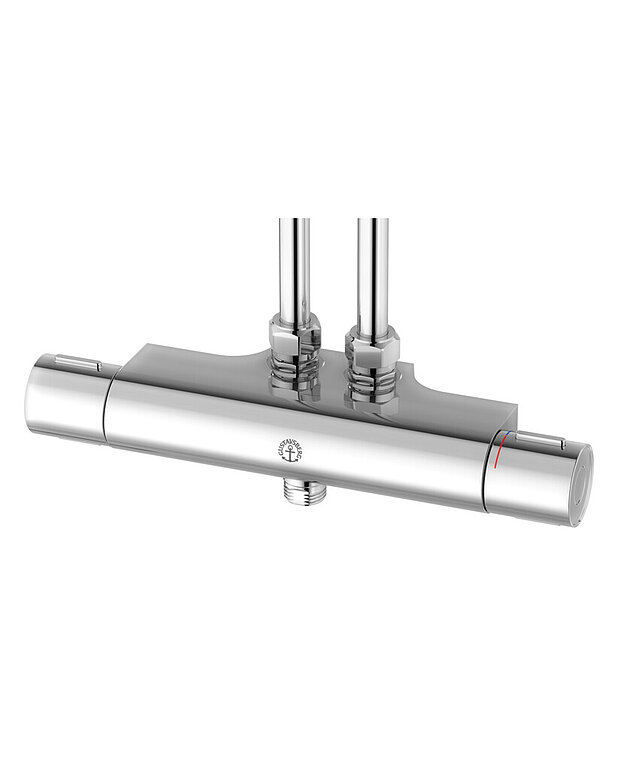

Shower mixer New Nautic - Thermostat

RSK-nr: |
ART-nr: GB41202427 |
EAN-nr: 7391530075839

With pipe connection upwards, can be shifted, 40 c-c

Safe Touch reduces the heat on the front of the faucet
Maintains even water temperature upon pressure and temperature changes
Can be expanded with bathtub spout

Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals

Complies with Safe Water installation requirements.

Specifications Product datasheet PDF with product image BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Product image Flow diagram

Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

Drawing Assembly instruction Care instruction

Other info

Deep - 55 mm

Length - 80 mm

Width - 285 mm

Max. tap capacity (at 300 kPa): 0,425 l/s

Pressure loss with flow (0,33 l/s) 181 kPa

Features

Timeless and harmonic design
All components made with food-safe materials
40 c-c for mounting with exposed plumbing
Pipe connection can be shifted downwards
Built-in automatic hot water block for scald protection
Block button on the temperature side at comfort temperature 38°C
Adjustable max temperature for increased scald protection
Safe Touch reduces heat on the front of the faucet
Responds quickly to changes in pressure and temperature, maintaining even water temperature
Ceramic cartridge ensures non-drip operation and longevity
Type-approved non-return valves in the inlet
Backflow protection in accordance with SS-EN 1717 [EB]
Can be expanded with bathtub spout
