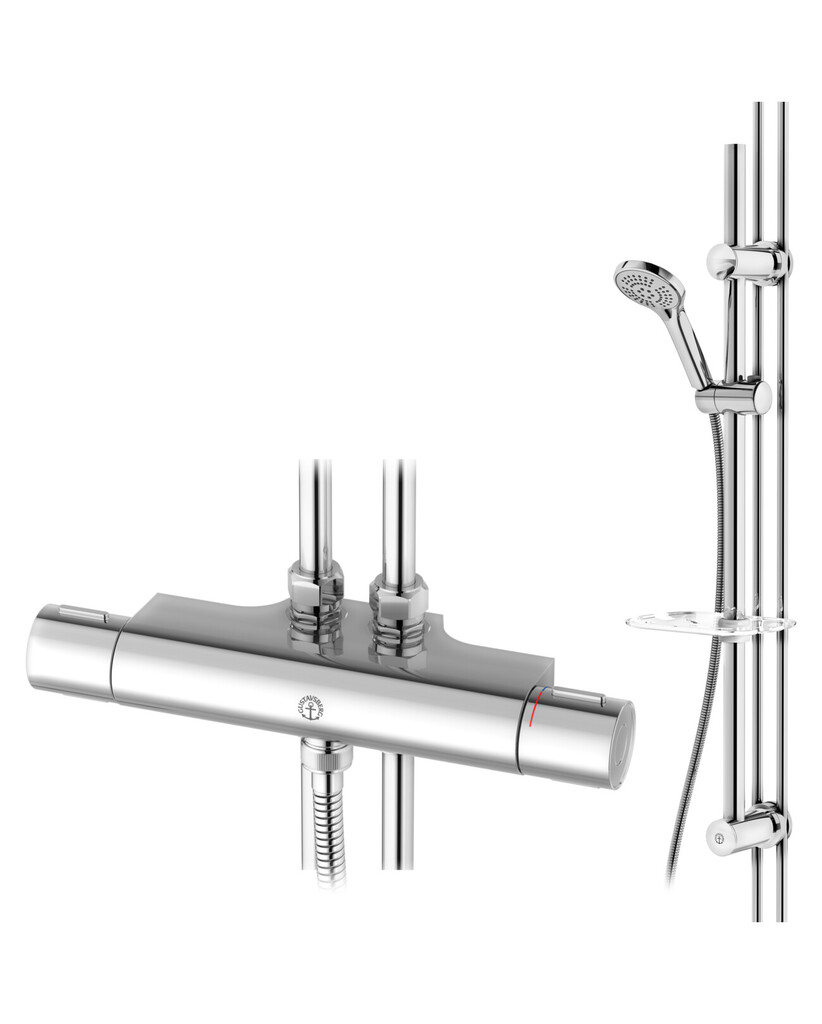

Shower package New Nautic 2.1 - Thermostat 40 c-c

Shower package New Nautic 2.1 - Thermostat 40 c-c

  • RSK-nr: |
  • ART-nr: GB41202487 |
  • EAN-nr: 7391530075846
Incl. Showerset, energy class A, pipe connection can be shifted, Vaska
  • Safe Touch reduces the heat on the front of the faucet
  • Maintains even water temperature upon pressure and temperature changes
  • Can be expanded with bathtub spout
Smart_inside Safe_touch Even_temperature
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • 2021:1

    2021:1

  • saker vatten
  • 3817

    3817

  • EUFI29-22005583-TH

    EUFI29-22005583-TH

  • C900798

    C900798

  • Complies with Safe Water installation requirements.
Specifications Product datasheet BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Product image Flow diagram
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

Drawing Assembly instruction Care instruction
Packaging information
Length : 775 mm | Width : 145 mm | Height : 80 mm
Weight : 3.15 kg
Quantity in the package : 1

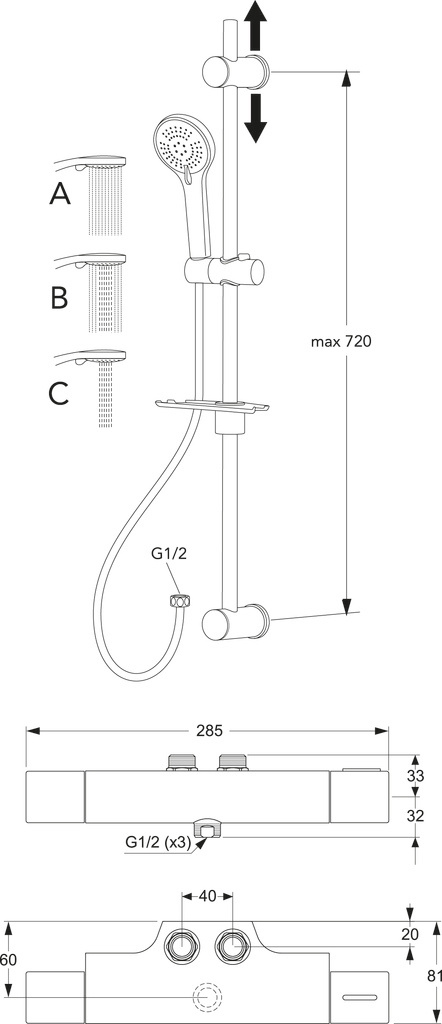

For product specific measurement, see drawing in the carousel.

Other info
Max. tap capacity (at 300 kPa): 0,1 l/s
Pressure loss with flow (0,1 l/s) 300 kPa
Features
  • Timeless and harmonic designAll components made with food-safe materials
  • 40 c-c for mounting with exposed plumbing
  • Pipe connection can be shifted downwards
  • Built-in automatic hot water block for scald protection
  • Block button on the temperature side at comfort temperature 38°C
  • Adjustable max temperature for increased scald protection
  • Safe Touch reduces heat on the front of the faucet
  • Responds quickly to changes in pressure and temperature, maintaining even water temperature
  • Ceramic cartridge ensures non-drip operation and longevity
  • Type-approved non-return valves in the inlet
  • Backflow protection in accordance with SS-EN 1717 [EB]
  • Can be expanded with bathtub spout
