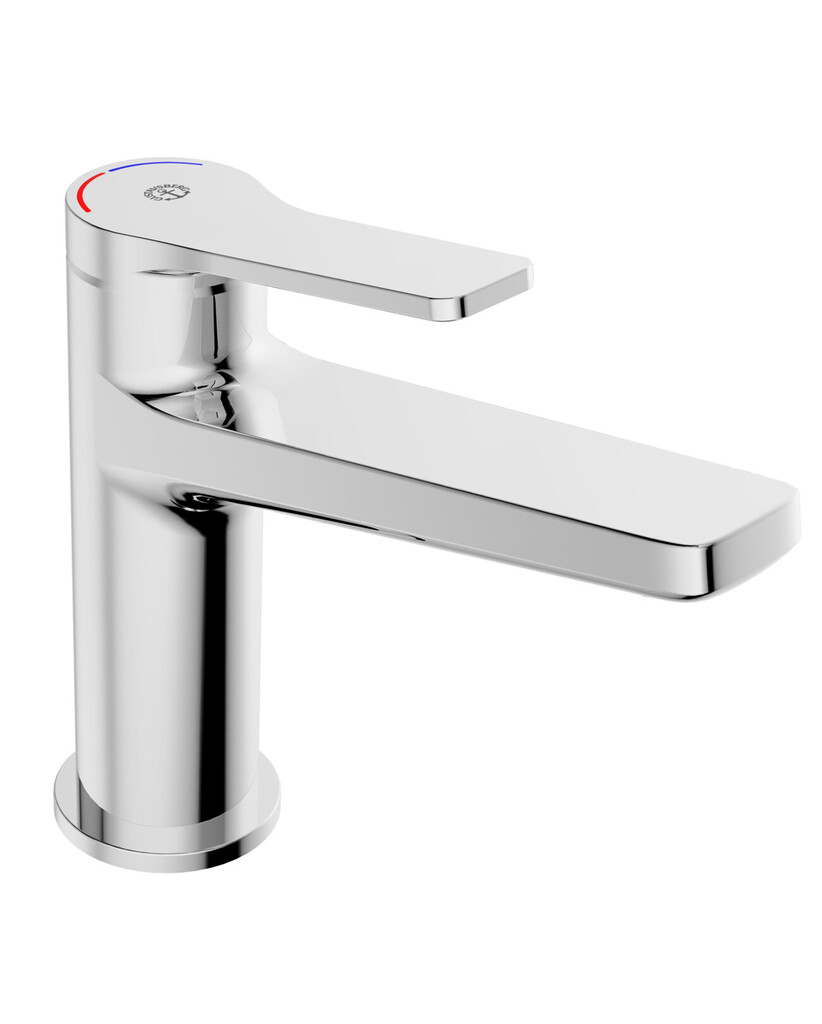

Washbasin mixer Epic

Washbasin mixer Epic

  • RSK-nr: |
  • ART-nr: GB41219951 |
  • EAN-nr: 7393792233736
Chrome
  • A washbasin mixer in modern design
  • Soft move, technology for smooth and precise handling
  • Eco-flow for water and energy efficiency
Eco_flow
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
Specifications Product datasheet PDF with product image Product image Flow diagram
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 70°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

Drawing Assembly instruction Care instruction
Other info
Deep - 40 mm
Length - 158 mm
Width - 175 mm
Max. tap capacity (at 300 kPa): 0,108 l/s
Pressure loss with flow (0,1 l/s) 256 kPa
Features
  • A washbasin mixer in modern design
  • All components made in food approved materials
  • Eco-flow for water and energy efficiency
  • Lever with clear color marking for hot and cold water
  • Soft move, technology for smooth and precise handling
  • Ceramic seal for drip-free operation and long service life
  • Type-approved flexible water connection with 3/8" for simpler installation
  • Backflow protection in accordance with SS-EN 1717 [AA]
  • Available in different colours
