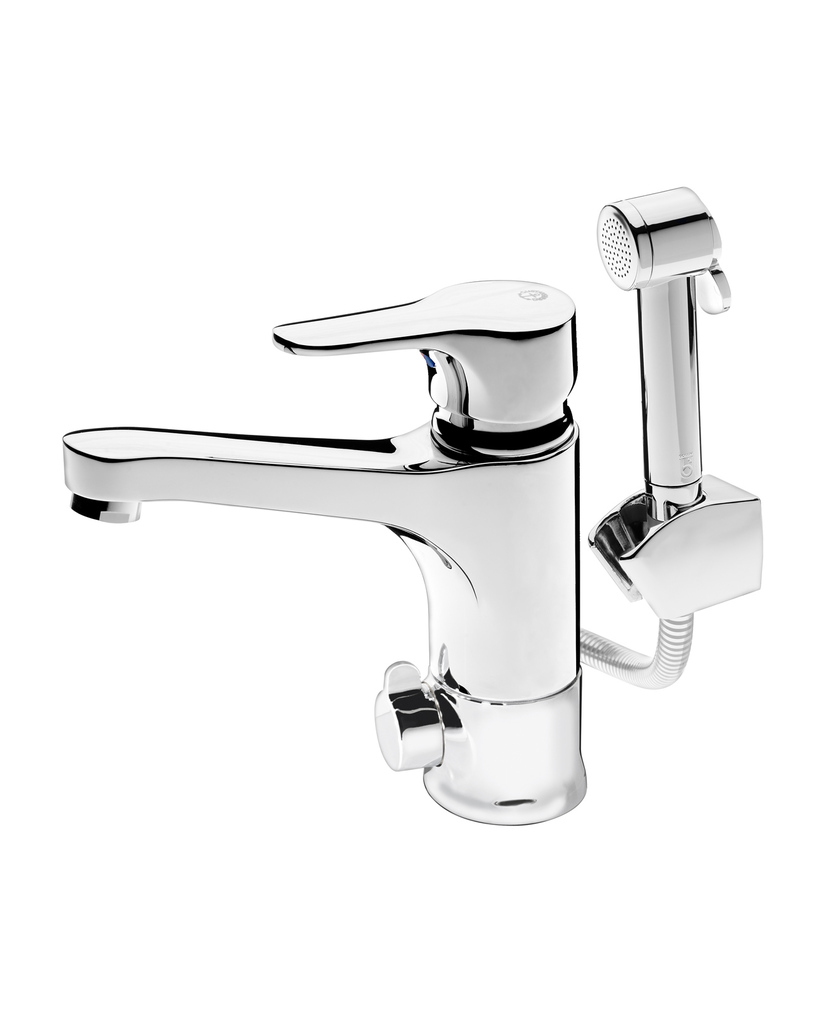

Bathroom sink faucet Nautic - 150 mm spout

Bathroom sink faucet Nautic - 150 mm spout

  • RSK-nr: |
  • ART-nr: GB41214185 |
  • EAN-nr: 7393792221870
With side sprayer, wall holder and washing machine shut-off
  • Energy class A, saves water and energy
  • Eco-start, 17°C when lever straight forward
  • Adjustable comfort flow and comfort temperature
ECO-TAP/ENERGY-SAVING ECO-TAP/WATER-SAVING ECO-START

Product information

Standards & Approvals
  • Complies with Safe Water installation requirementsEnergy class A, 1.41 kWh
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 70°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

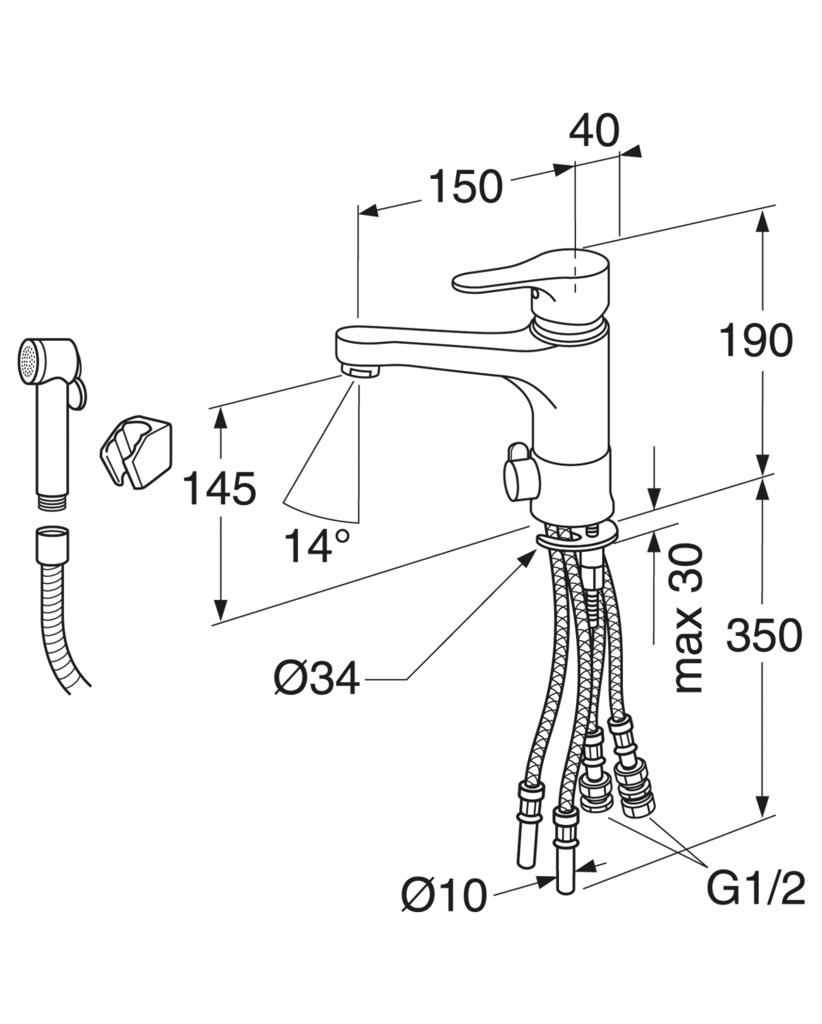

Drawing Assembly instruction Care instruction
Other info
Deep - 75 mm
Length - 290 mm
Width - 290 mm
Max. tap capacity (at 300 kPa): 0,147 l/s
Pressure loss with flow (0,1 l/s) 139 kPa
Features
  • Timeless and harmonic design by Rolf Herrström
  • Energy class A, saves water and energy
  • All components made with food-safe materials
  • 150 mm pout pivoting 60°
  • Side sprayer incl. wall holder facilitates cleaning and intimate hygiene
  • Adjustable comfort flow
