Bathroom sink faucet Nautic - 150 mm spout

Bathroom sink faucet Nautic - 150 mm spout

  • RSK-nr: |
  • ART-nr: GB41214045 |
  • EAN-nr: 7393792221825
  • Energy class A, saves water and energy
  • Eco-start, 17°C when lever straight forward
  • Adjustable comfort flow and comfort temperature
ECO-TAP/ENERGY-SAVING eco_tap_vattenspar_cmyk ECO-START
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • Complies with Safe Water installation requirementsEnergy class A, 1.41 kWh
Specifications Product datasheet BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Product image Flow diagram
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 70°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

Drawing Assembly instruction Care instruction
Packaging information
Length : 295 mm | Width : 285 mm | Height : 75 mm
Weight : 2.37 kg
Quantity in the package : 1

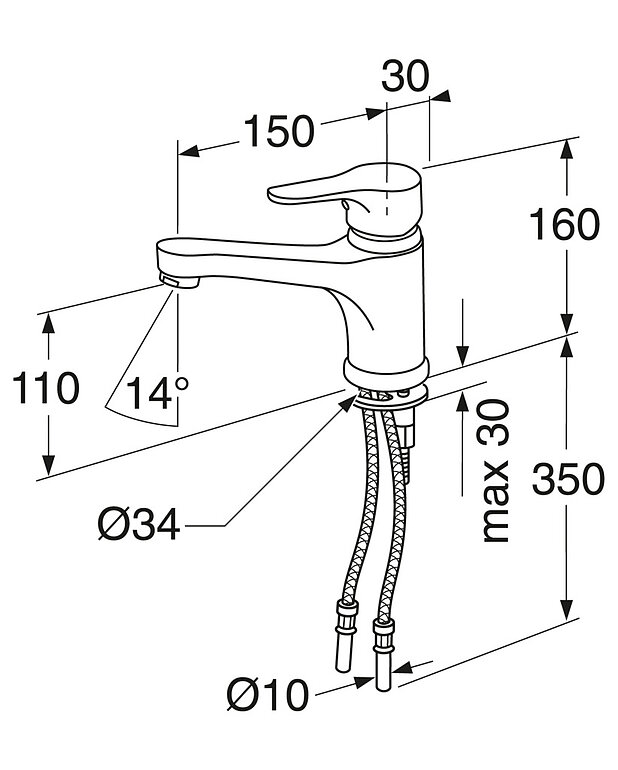

For product specific measurement, see drawing in the carousel.

Other info
Max. tap capacity (at 300 kPa): 0,24 l/s
Pressure loss with flow (0,1 l/s) 52 kPa
Features
  • Timeless and harmonic design by Rolf HerrströmEnergy class A, saves water and energy
  • All components made with food-safe materials
  • 150 mm pout pivoting 60°
  • Adjustable comfort flow (water-saving)
  • Adjustable comfort temperature (energy-saving)
  • Spring return to comfort position (water-saving)
  • Eco-start, 17°C when lever straight forward
  • Adjustable max temperature for increased scald protection
  • Ceramic cartridge ensures non-drip operation and longevity
