Toilet - Care - wall hung toilet 4G01 - extended

Toilet - Care - wall hung toilet 4G01 - extended

  • RSK-nr: |
  • ART-nr: 4G01R001 |
  • EAN-nr: 4051202353919
(36)
Without seat, white, Hygienic Flush
  • Hygienic Flush with open flush rim for easier cleaning
  • Flushes all the way up to the rim for improved hygiene
  • Extended model, for easier transfer from wheelchair

Product information

Standards & Approvals
  • ce_logo
Assembling & Care

Intended for installation with our Triomont fixtures. Mounted with bolts directly on the wall. Extended inlet connector ⌀45 mm included. Bolt projection from finished wall must be 100 ± 2 mm. See included installation instructions. According to the AMA the seat height should be 450 mm which corresponds to 270 mm distance (centre-centre) between the existing floor and center of drain.

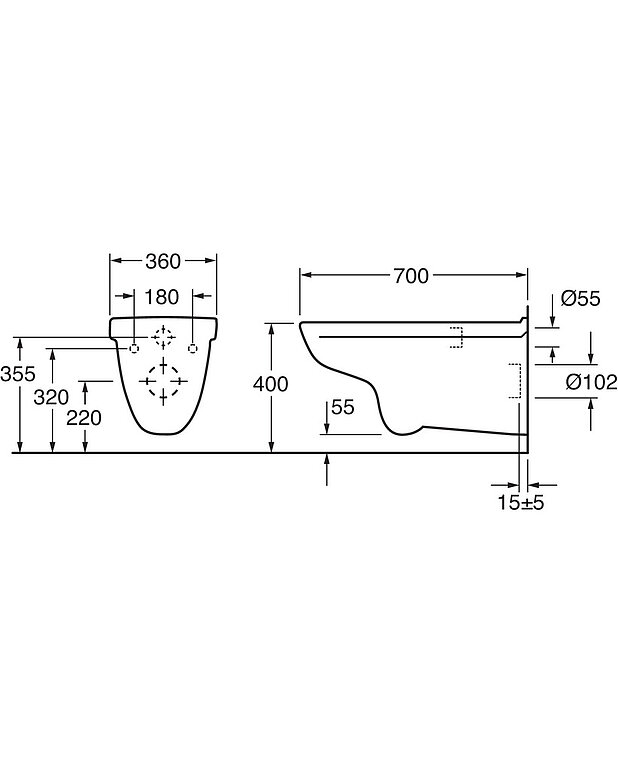

Drawing Assembly instruction Care instruction
Other info
Deep - 344 mm
Length - 700 mm
Width - 360 mm
Features
  • Made of hygienic, durable and tightly vitrified sanitary porcelain
  • Hygienic Flush with open flush rim for easier cleaning
  • Flushes all the way up to the rim for improved hygiene
  • Smooth, easy-to-clean surfaces
  • Extended model, for easier transfer from wheelchair
  • Suits our Triomont fixtures
  • Distance between bolts (centre to centre) 180 mm
  • Load tested to 400 kg
