Toilet - Care - wall hung toilet 4G01 - extended

Hygienic Flush with open flush rim for easier cleaning

Toilet - Care - wall hung toilet 4G01 - extended

Without seat, white, Hygienic Flush

  • Hygienic Flush with open flush rim for easier cleaning
  • Flushes all the way up to the rim for improved hygiene
  • Extended model, for easier transfer from wheelchair

Article number: 4G01R001
EAN-number: 4051202353919

PRODUCT INFORMATION

Assembling & Care

Intended for installation with our Triomont fixtures. Mounted with bolts directly on the wall. Extended inlet connector ⌀45 mm included. Bolt projection from finished wall must be 100 ± 2 mm. See included installation instructions. According to the AMA the seat height should be 450 mm which corresponds to 270 mm distance (centre-centre) between the existing floor and center of drain.

Assembly Instruction

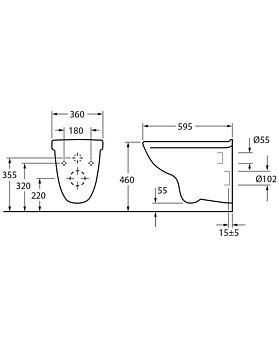

Drawing

Standards & Approvals

  • ce_logo

Other info

  • Deep - 344 mm
  • Length - 700 mm
  • Width - 360 mm

Features

  • Made of hygienic, durable and tightly vitrified sanitary porcelain
  • Hygienic Flush with open flush rim for easier cleaning
  • Flushes all the way up to the rim for improved hygiene
  • Smooth, easy-to-clean surfaces
  • Extended model, for easier transfer from wheelchair
  • Suits our Triomont fixtures
  • Distance between bolts (centre to centre) 180 mm
  • Load tested to 400 kg
