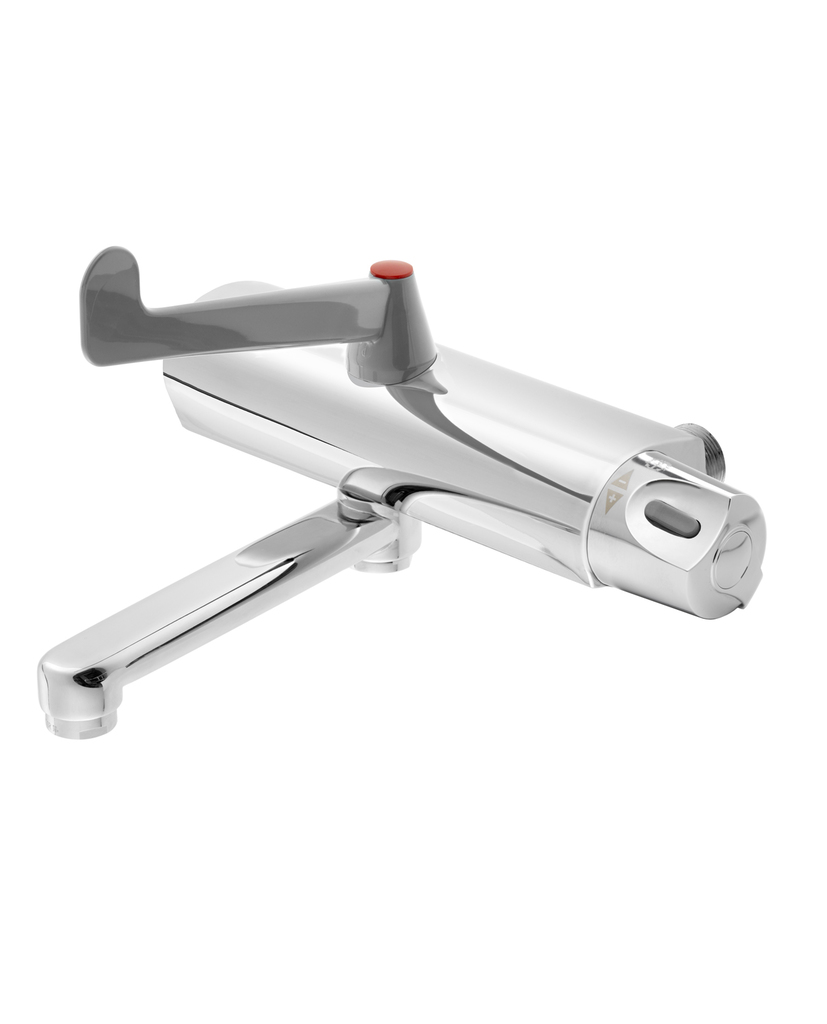

Bathroom sink faucet Care

Bathroom sink faucet Care

  • RSK-nr: |
  • ART-nr: GB41205352 0 |
  • EAN-nr: 7393792229333
Lead-free, elongated lever, 160 c-c
  • Safe Touch reduces heat on the front of the faucet
  • Contains less than 0.1% lead
  • Adjustable max temperature for increased scald protection
Safe_touch Even_temperature Lead_free
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
Specifications Product datasheet PDF with product image Product image Flow diagram
Assembling & Care

Mounted according to the instructions. Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

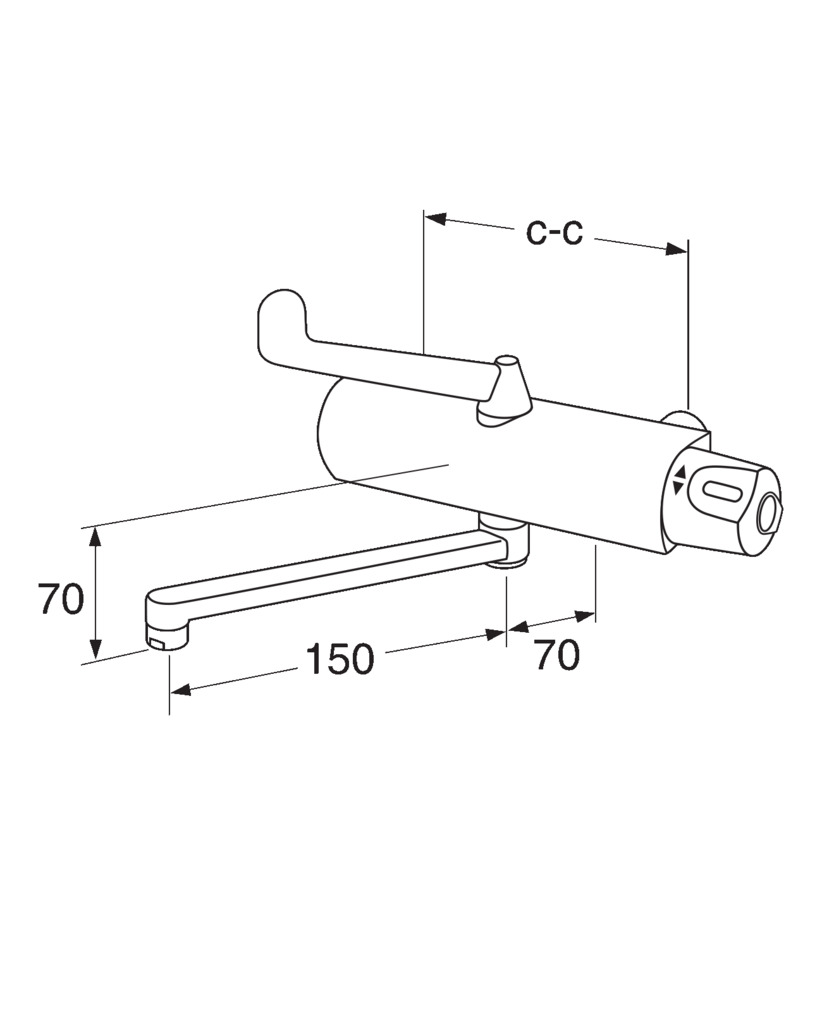

Drawing
Other info
Deep - 155 mm
Length - 270 mm
Width - 230 mm
Max. tap capacity (at 300 kPa): 0,46 l/s
Pressure loss with flow (0,2 l/s) 57 kPa
Features
  • Contains less than 0.1% lead
  • With functionally adapted elongated lever
  • All components made with food-safe materials
  • 150 mm fixed spout
  • Block button on the temperature side at comfort temperature 38°C
  • Adjustable max temperature for increased scald protection
  • Safe Touch reduces heat on the front of the faucet
  • Type-approved check valve in the inlet
  • Ceramic cartridge ensures non-drip operation and longevity
  • Backflow protection in accordance with SS-EN 1717 [AA]
