Square shower door Foldable

Square shower door Foldable

  • RSK-nr: |
  • ART-nr: GB51SRFD80RCR |
  • EAN-nr: 4062373900666
Flat glass, 80 cm, Chrome, Right
  • Foldable door, takes up less space
  • Can be used even in tight spaces where the folding function solves the problem
  • Not turnable, please select Left- or Right hand version
Elevating_hinge
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
Specifications Product datasheet PDF with product image BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Product image
Assembling & Care

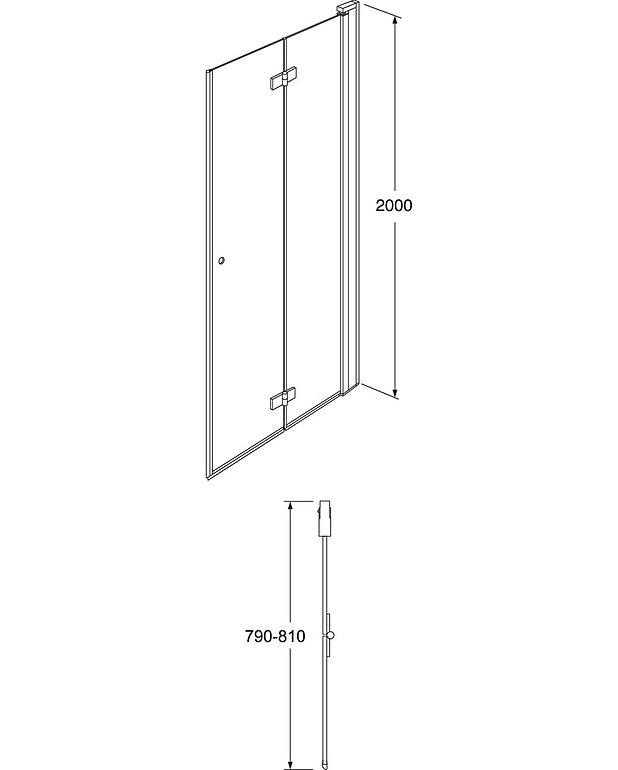

Drawing Assembly instruction
Other info
Deep - 2000 mm
Length - 32 mm
Width - 800 mm
Features
  • Foldable door, takes up less spaceCan be used even in tight spaces where the folding function solves the problem
  • Pre-fitted door profiles for quick and simple installation
  • Tempered safety glass, 6 mm
  • Polished profiles and door handles
  • Elevating hinges raise the door 5 mm on opening
  • Adjustable wall profile, 20 mm, for a straight shower even with angled walls
  • Opening angle: 180 degrees
  • Unequal-sided dimension combinations possible
  • Expansion profile, 20 mm, as an optional extra for increased adjustability
  • No floor profiles needed, for a hygienic and easy-to-clean shower
  • Space to drill holes for externally routed pipes
