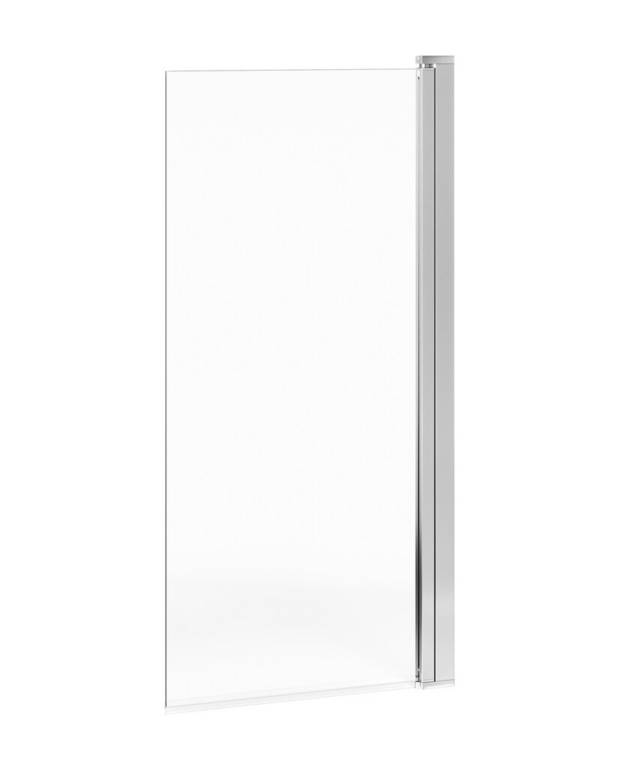

Square bathtub door

Square bathtub door

  • RSK-nr: |
  • ART-nr: GB51SRBD70CR |
  • EAN-nr: 7391530073583
Flat glass, 70 cm
  • Reversible for right/left-hand installation
  • Pre-fitted door profiles for quick and simple installation
  • Tempered safety glass, 6 mm
Elevating_hinge Reversible_doors
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • ce_logo
Specifications Product datasheet PDF with product image BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Declaration of performance Product image
Assembling & Care

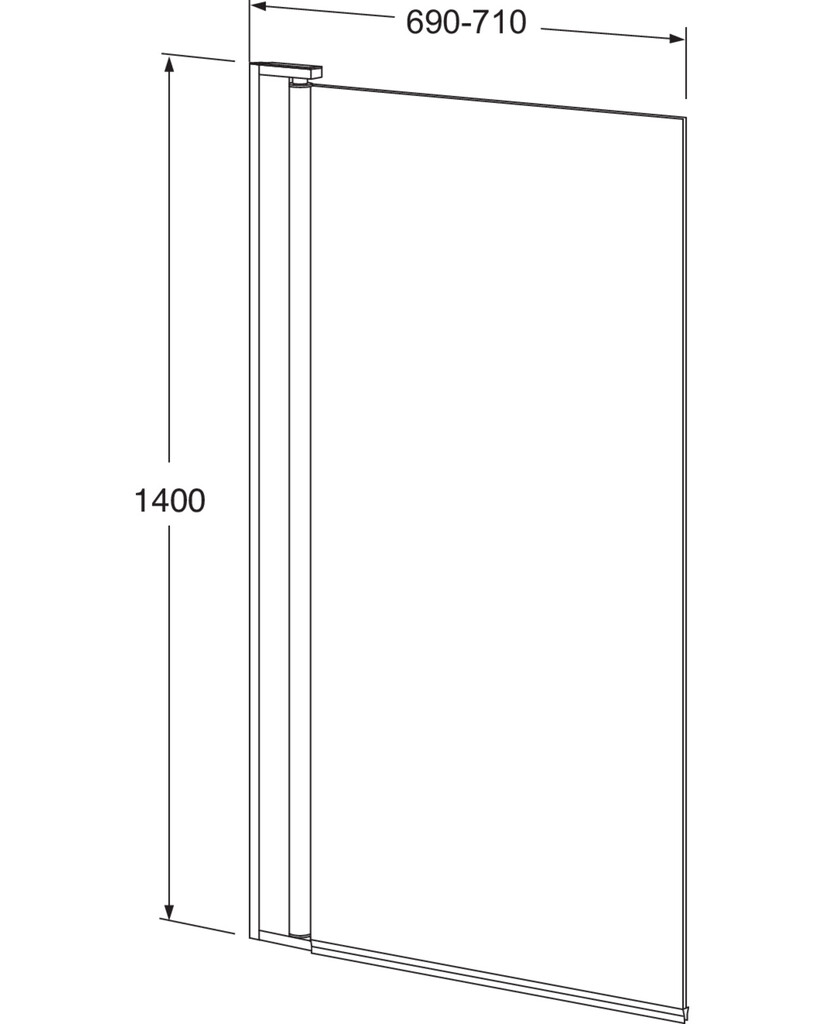

Drawing Assembly instruction
Other info
Deep - 1400 mm
Length - 31 mm
Width - 700 mm
Features
  • Reversible for right/left-hand installation
  • Pre-fitted door profiles for quick and simple installation
  • Tempered safety glass, 6 mm
  • Polished profiles
  • Elevating hinges raise the door 5 mm on opening
  • Adjustable wall profile, 25 mm, for a straight bathtub door even with angled walls
  • Opening angle: 180 degrees
