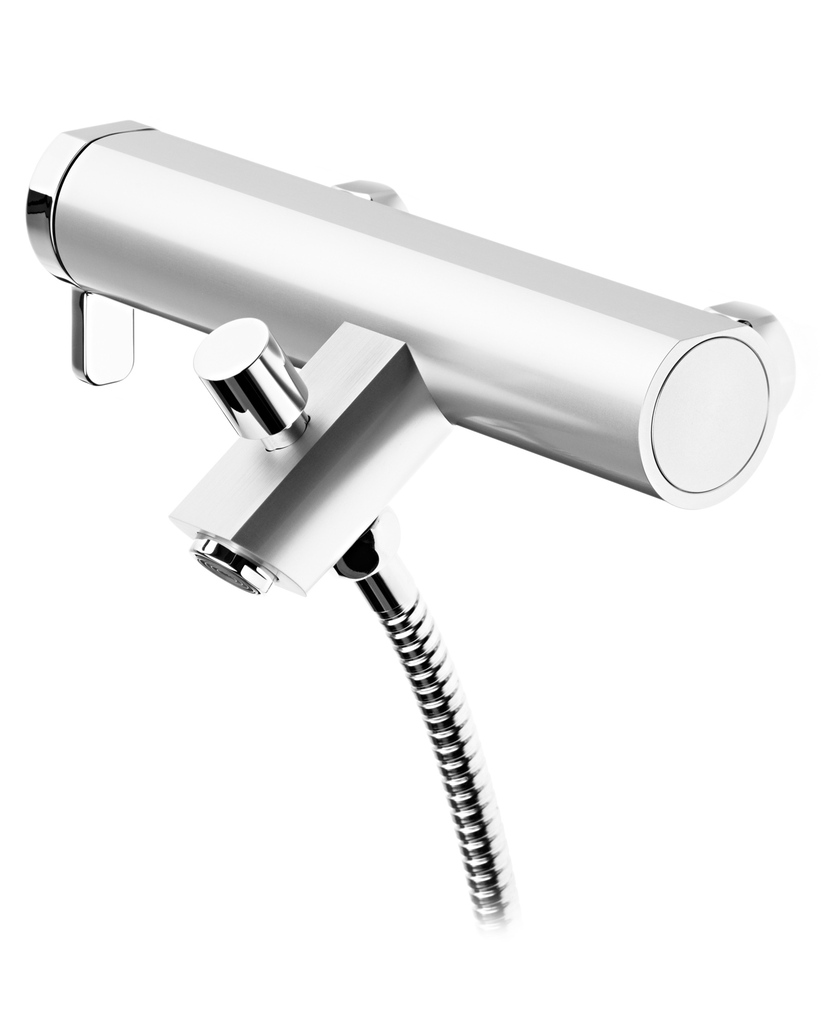

Product information

Standards & Approvals

Complies with Safe Water installation requirements.

Specifications Product datasheet PDF with product image BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Product image Flow diagram

Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

Drawing Assembly instruction Care instruction

Other info

Deep - 173 mm

Length - 175 mm

Width - 77 mm

Features

Clean and modern design
All components made with food-safe materials
Made from anodised aluminium, as mark-resistant as chrome plating
Pull diverter located on spout changes flow path from bath to shower with automatic return to bath
Ceramic cartridge ensures non-drip operation and longevity
Backflow protection in accordance with SS-EN 1717 [HC]

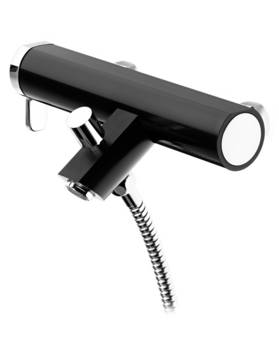

Available in several different colours
