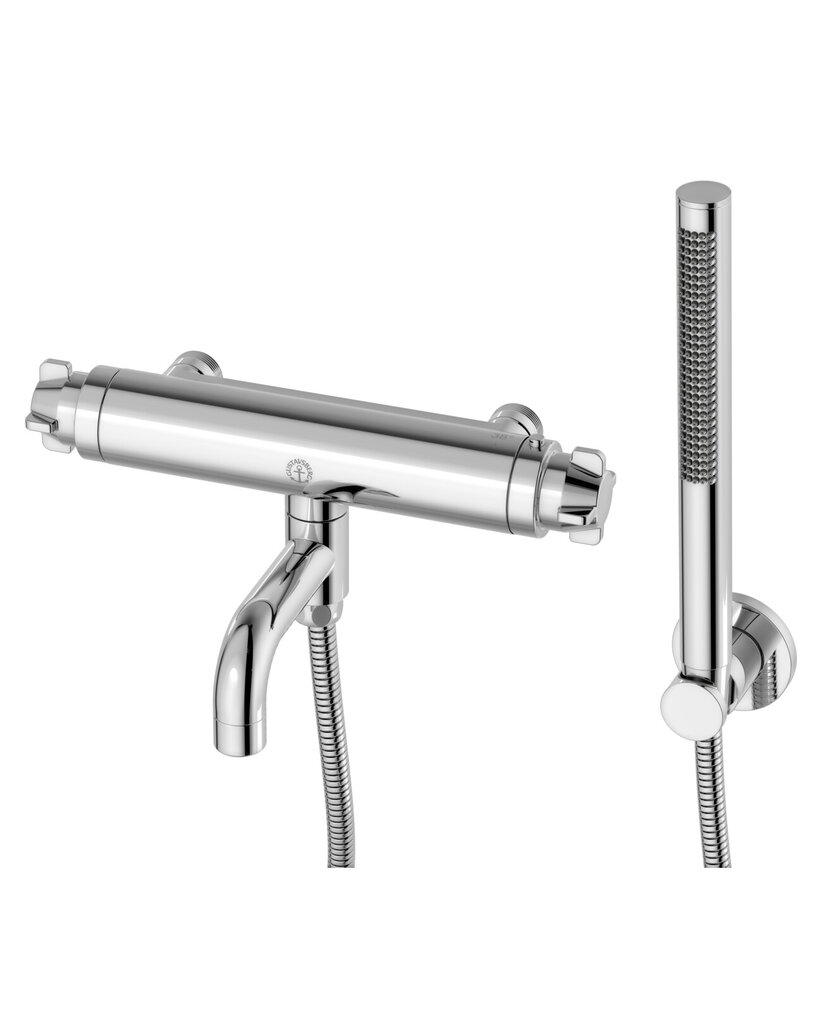

Bathtub mixer Ducentic

Bathtub mixer Ducentic

  • RSK-nr: |
  • ART-nr: GB41207032 |
  • EAN-nr: 7391530088082
160 c-c
  • Inspired by traditional and modern design

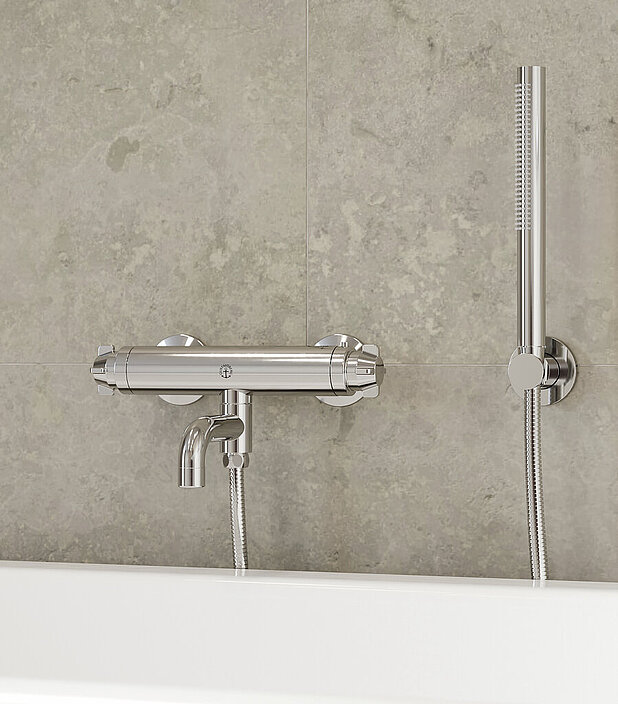

  • Great bath experience

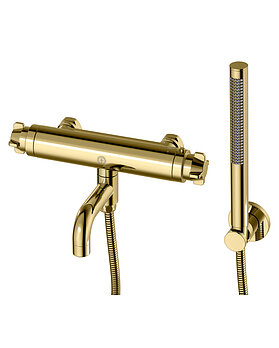

  • Available in Polished Brass and Chrome
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
Specifications Product datasheet Product image Flow diagram
Assembling & Care

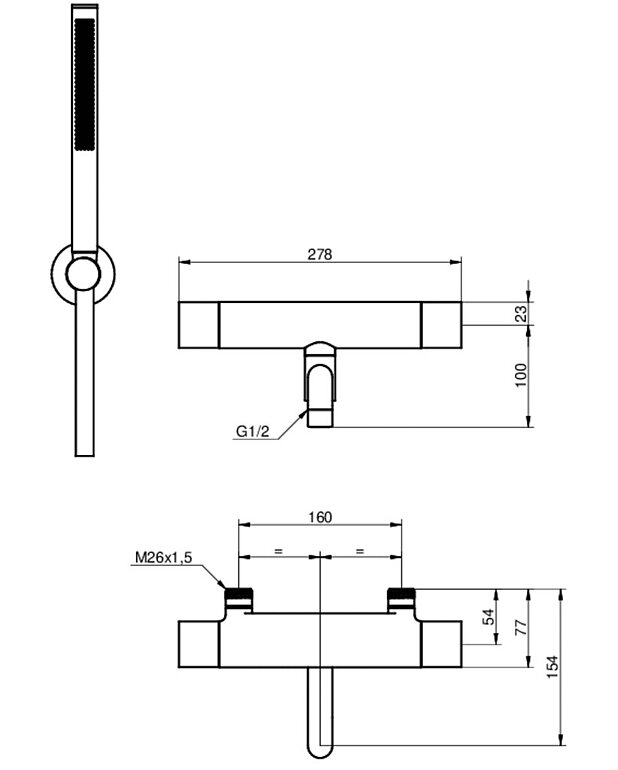

Drawing Assembly instruction
Packaging information
Length : 290 mm | Width : 290 mm | Height : 75 mm
Weight : 3.13 kg
Quantity in the package : 1

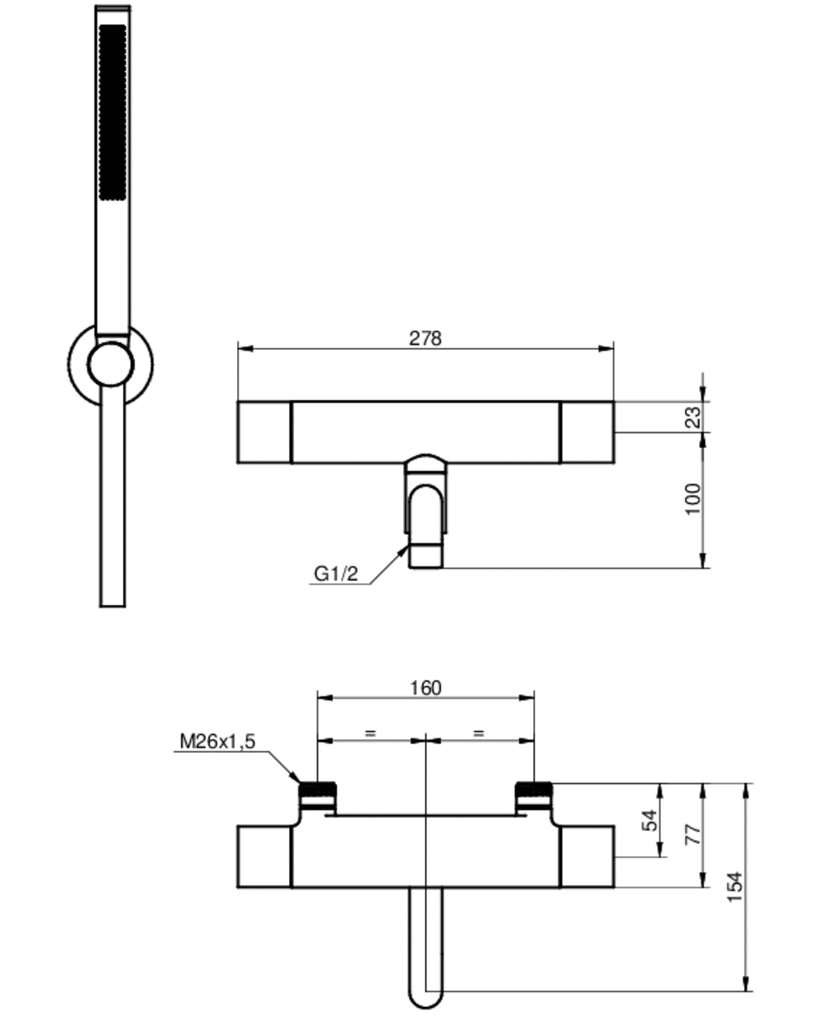

For product specific measurement, see drawing in the carousel.

Other info
Max. tap capacity (at 300 kPa): 0,352 l/s
Pressure loss with flow (0,33 l/s) 264 kPa
Features
  • Inspired by traditional and modern designBuilt-in automatic hot water shut-off for scalding protection
  • Lock button on the temperature side at a comfort temperature of 38°C
  • Adjustable maximum temperature for increased scalding protection
  • Safe Touch, minimizes the heat on the front of the mixer
  • Reacts quickly to pressure and temperature changes in the water flow, which provides an even water temperature
  • Ceramic shut-off for drip protection and long life, also simplifies use for small and weak hands
  • Type-approved non-return valves in the inlets
  • Backflow protection according to SS-EN 1717 [EB]
  • Available in chrome and polished brass
