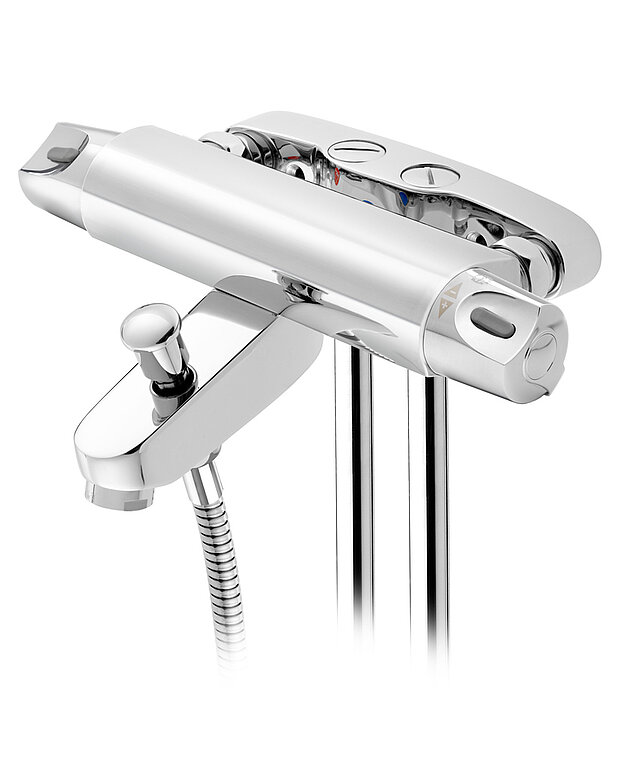

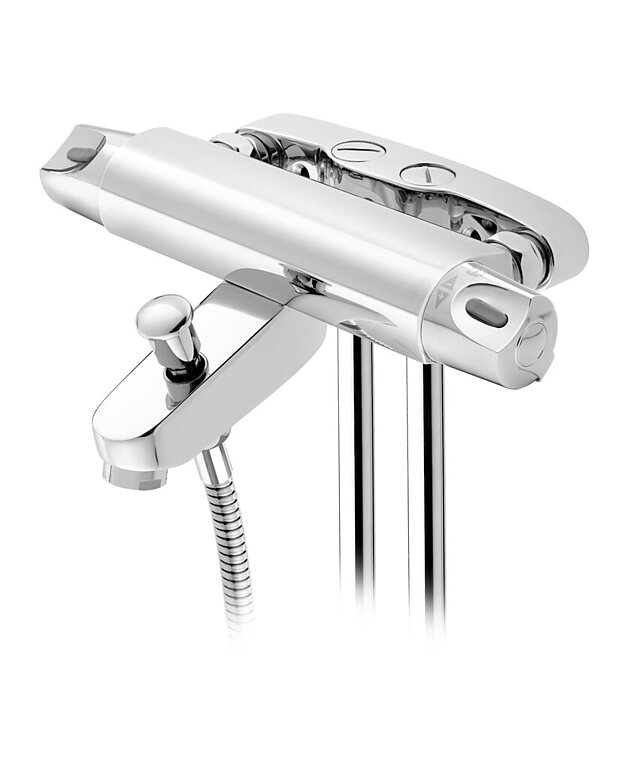

Tub faucet Nautic - thermostat

Tub faucet Nautic - thermostat

  • RSK-nr: |
  • ART-nr: GB41205433 |
  • EAN-nr: 7393792225588
160/40 c-c
  • Safe Tough reduces the heat on the front of the faucet.
  • Maintains even water temperature upon pressure and temperature changes
  • Pull diverter changes flow path from bath to shower
Safe_touch Even_temperature
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • Complies with Safe Water installation requirements.
Specifications Product datasheet PDF with product image Product image Flow diagram
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

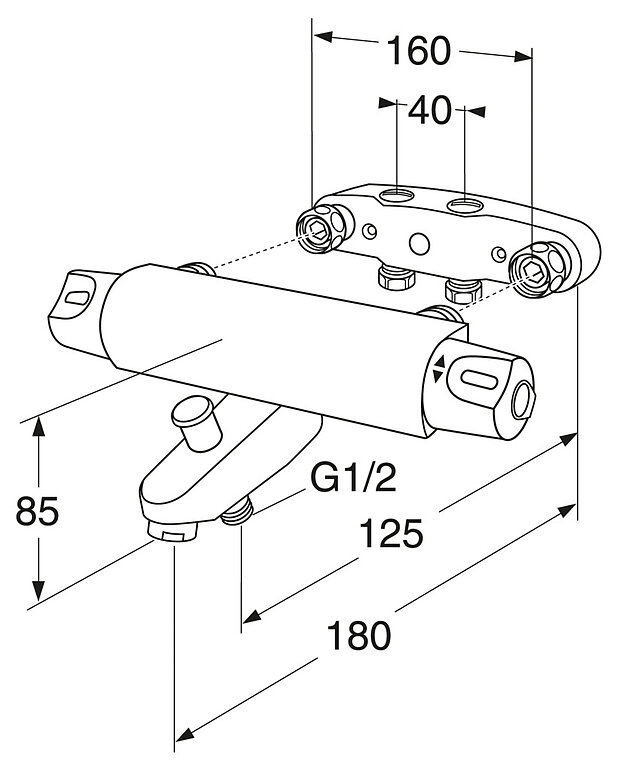

Drawing Assembly instruction Care instruction
Other info
Deep - 90 mm
Length - 395 mm
Width - 165 mm
Max. tap capacity (at 300 kPa): 0,46 l/s
Pressure loss with flow (0,2 l/s) 57 kPa

Package consists of: Faucet, RSK 8425481, Item no. GB41205304 Spout RSK 8156088, Item no. GB41636820. Faucet bracket 160/40 c-c RSK 8128993, Item no. GB41102872.

Features
  • Timeless and harmonic design
  • All components made with food-safe materials
  • Pull diverter located on spout changes flow path from bath to shower with automatic return to bath
  • Built-in automatic hot water block for scald protection
  • Block button on the temperature
