Shower mixer Atlantic 2.1 - Singel lever

Shower mixer Atlantic 2.1 - Singel lever

  • RSK-nr: |
  • ART-nr: GB41201387 |
  • EAN-nr: 7391530085043

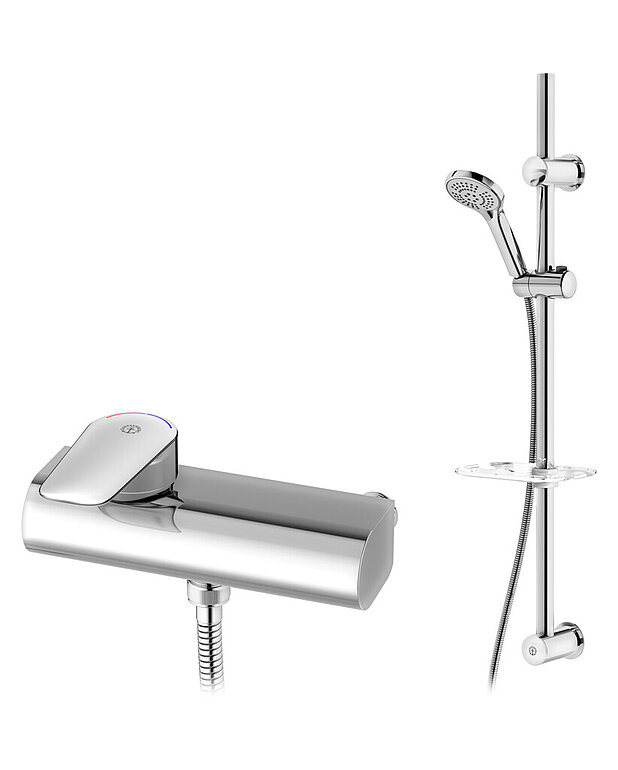

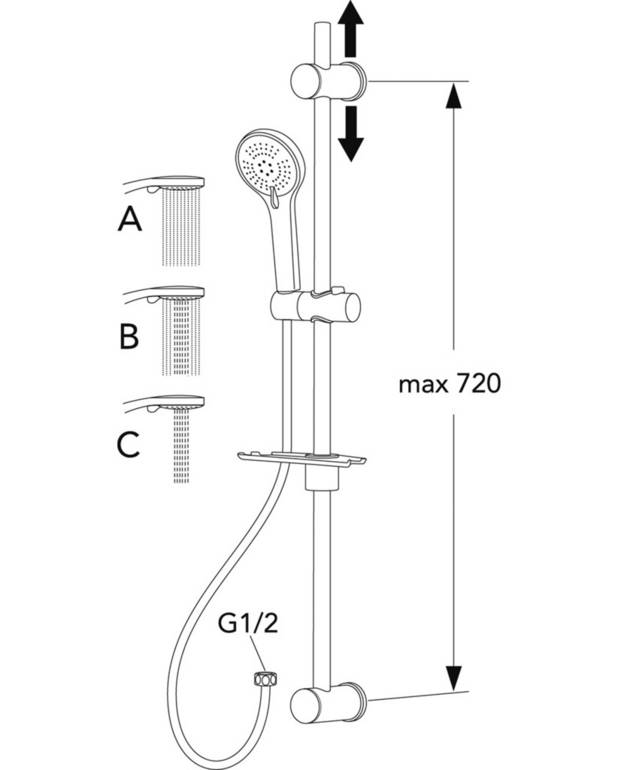

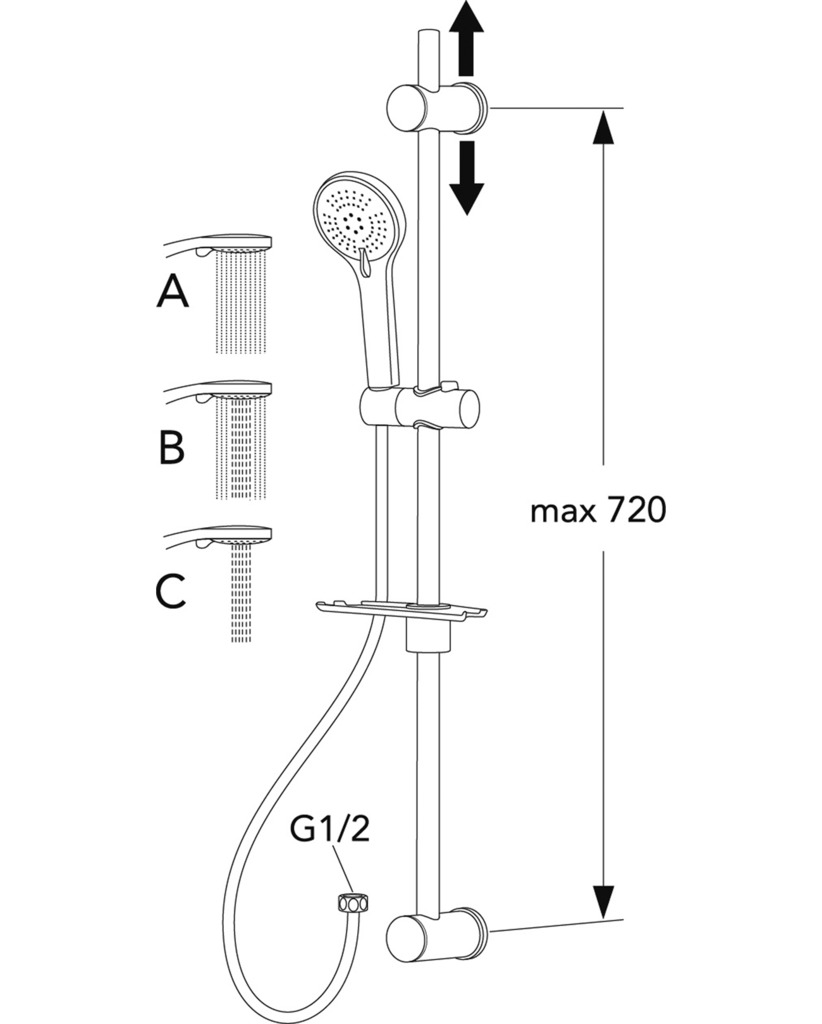

Shower pack incl. shower set, 160 c-c
  • Grip-friendly lever with clear color marking for hot and cold water
  • Soft move, ceramic package with smooth and precise operation
  • Eco-stop, adjustable maximum flow limitation

Product information

Standards & Approvals
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

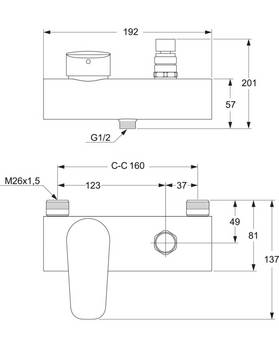

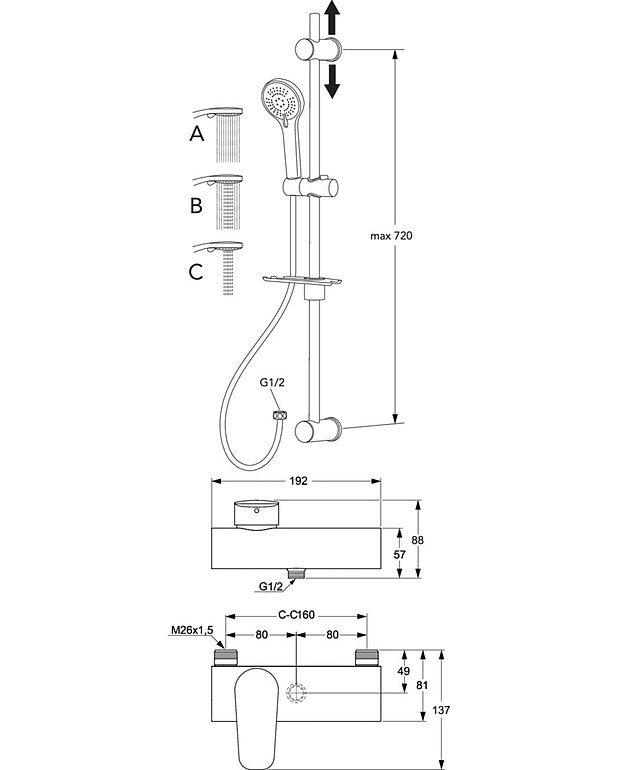

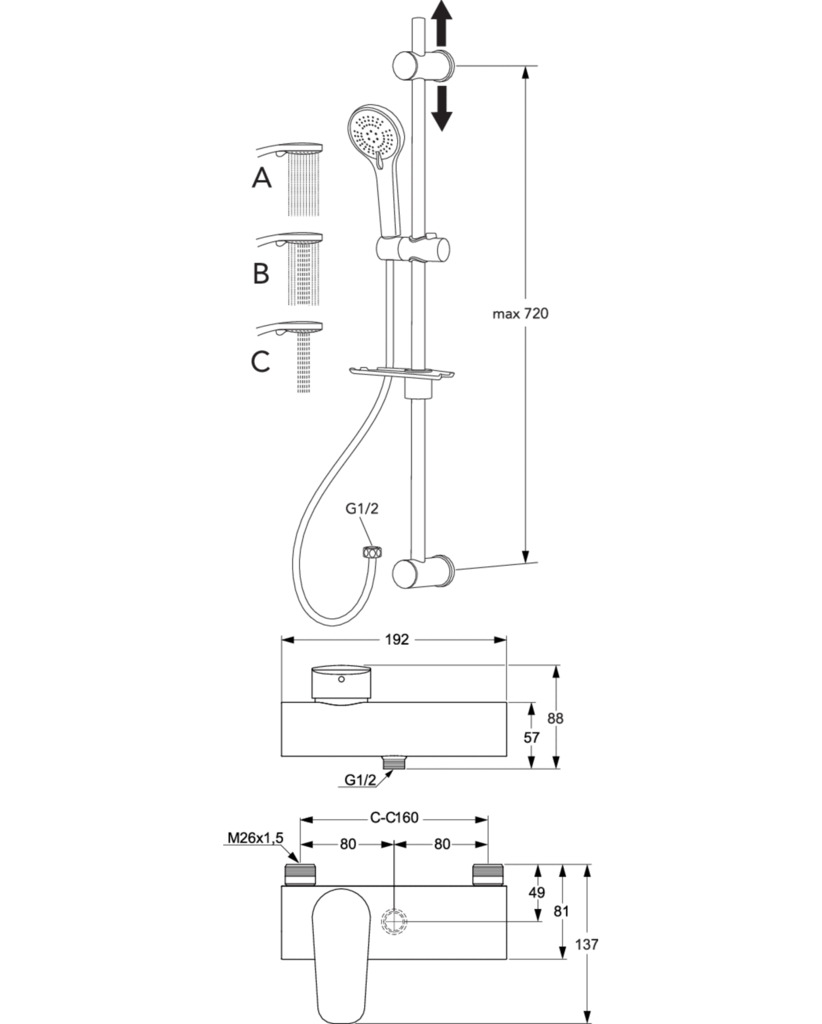

Drawing Care instruction
Other info
Deep -
Length -
Width -
Max. tap capacity (at 300 kPa): 0,1 l/s
Pressure loss with flow (0,1 l/s) 300 kPa
Features
  • Easy grip lever with clear colour marking for hot and cold
  • Soft move, technology for smooth and precise handling
  • Water and energy-saving hand shower
  • PVC-free shower hose 1.75 m
  • Max flow 6.5 l/min
  • Smart shelf with practical hooks
  • Eco-stop, adjustable maximum flow
  • Adjustable max temperature for increased scald protection
  • Ceramic cartridge ensures non-drip operation and longevity
  • Type-approved non-return valves in the inlet
  • Backflow protection in accordance with SS-EN 1717 [EB]
