Shower set G1

Shower set G1

  • RSK-nr: |
  • ART-nr: GB41103225 |
  • EAN-nr: 7393792226370

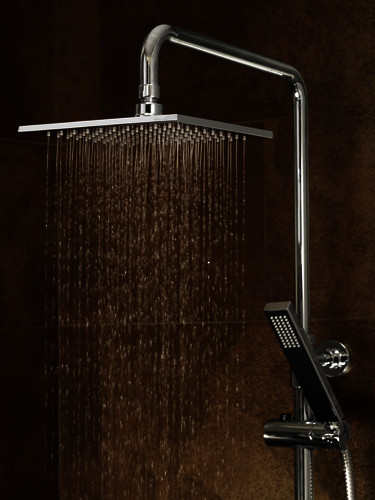

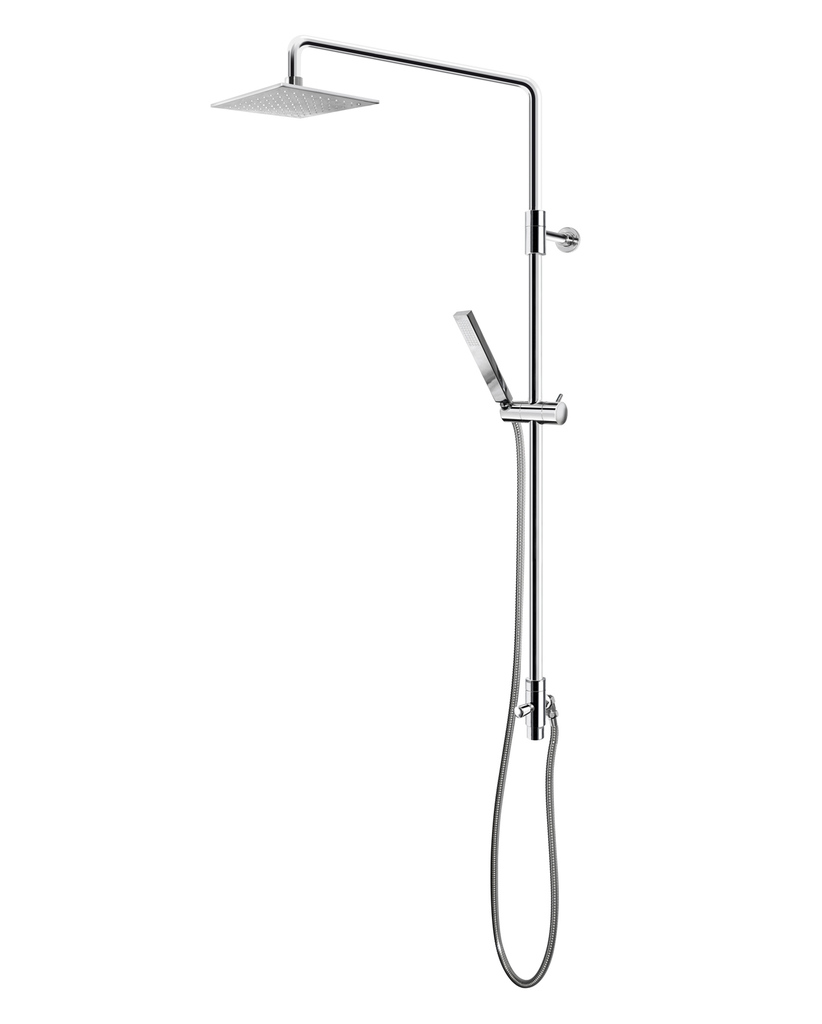

Fixed ceiling shower, square, chrome
  • Shower set in square design
  • Telescopically adjustable height
  • Fixed ceiling shower with hand shower on slider
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
Specifications Product datasheet PDF with product image BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Product image
Assembling & Care

Installed per included instructions.

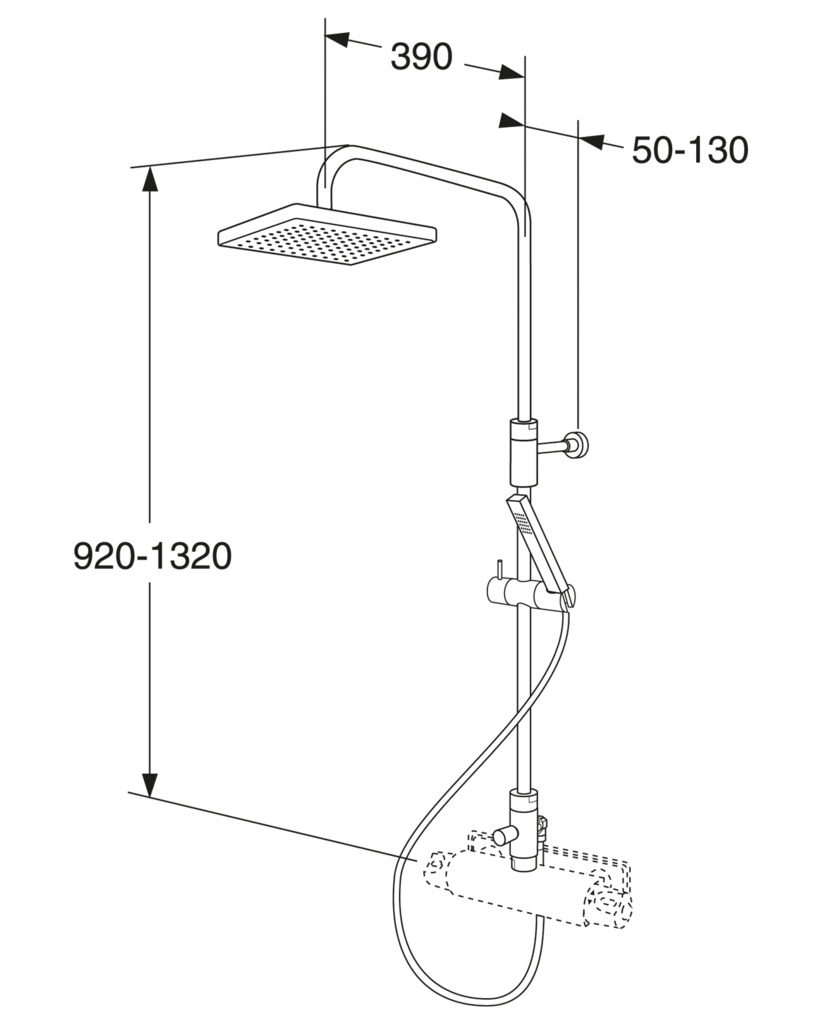

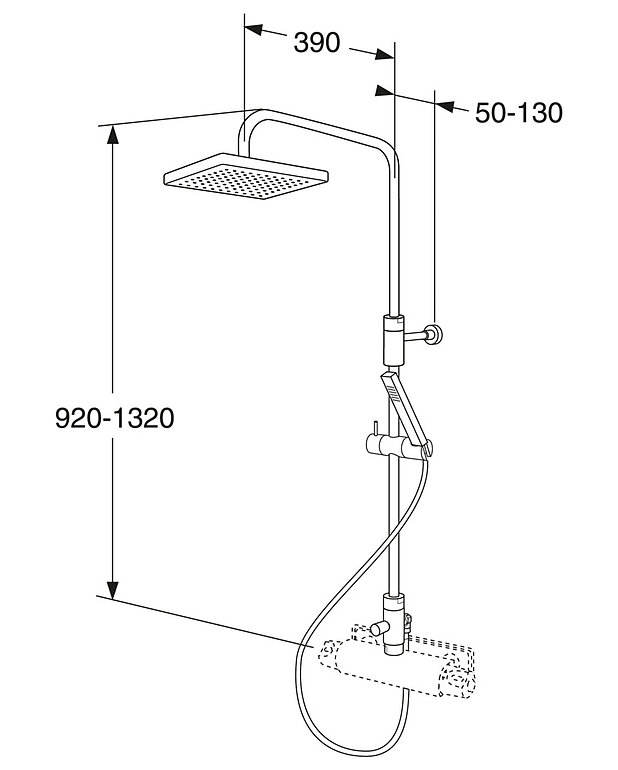

Drawing Assembly instruction Care instruction
Other info
Deep - 100 mm
Length - 900 mm
Width - 490 mm
Features
  • Design with straight lines and right angles
  • For faucet with shower connection upwards
  • Shower head 200x200 mm
  • Telescopically adjustable height 920-1320 mm
  • Fixed ceiling shower
  • Hand shower on slider
  • Pull diverter
  • 1.75 m metal braided shower hose
  • Flow at 3 bar: Ceiling shower 18.4 L/min, Hand shower 12.9 L/min
  • Option: Extra wall attachment with connection hose for installation with shower faucet with connection downwards
