Product information

Standards & Approvals

Specifications Product datasheet BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Product image Flow diagram

Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

Drawing Assembly instruction Care instruction

Other info

Deep - 55 mm

Length - 80 mm

Width - 285 mm

Max. tap capacity (at 300 kPa): 0,425 l/s

Pressure loss with flow (0,33 l/s) 181 kPa

Features

Organic design that suits all types of bathroomsBuilt-in automatic hot water shut-off for scalding protection
Lock button on the temperature side at a comfort temperature of 38°C
Adjustable maximum temperature for increased scalding protection
Safe Touch, minimizes the heat on the front of the mixer
Reacts quickly to pressure and temperature changes in the water flow, which provides an even water temperature
Ceramic shut-off for drip protection and long life, also simplifies use for small and weak hands
Type-approved non-return valves in the inlets
Backflow protection according to SS-EN 1717 [EB]

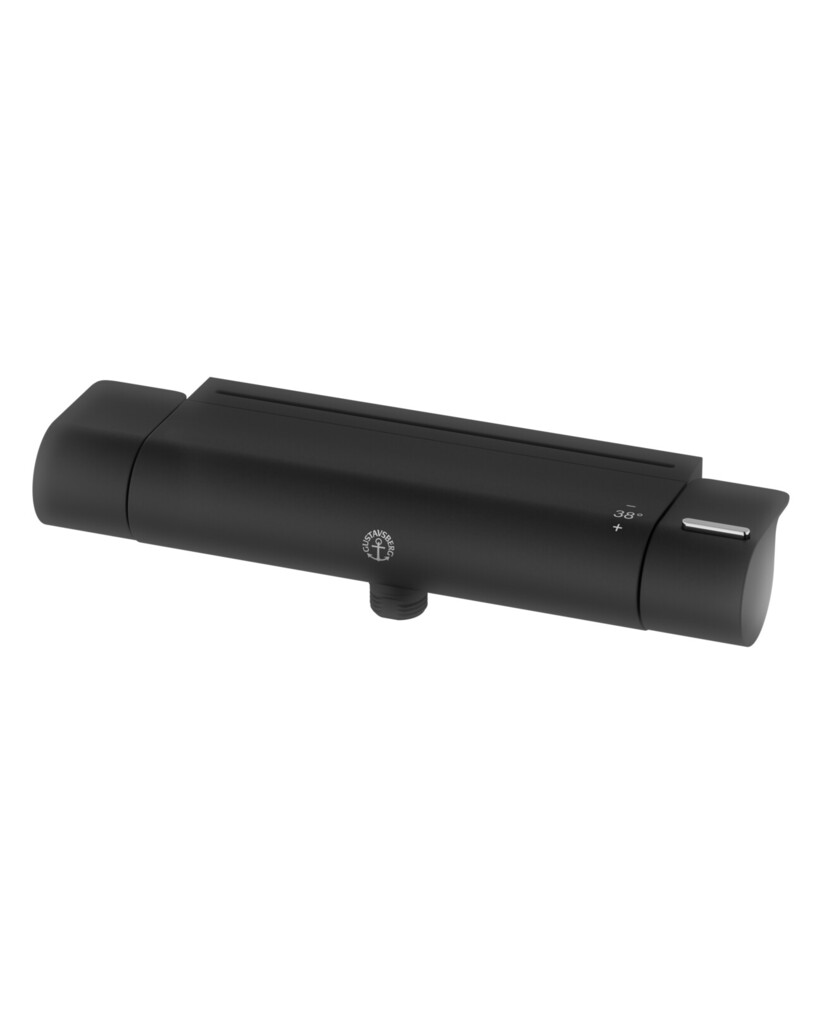

Available in chrome and matt black
Can be supplemented with all outlet pipes
