Product information

Standards & Approvals

Complies with Safe Water installation requirements.

Specifications Product datasheet PDF with product image BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Product image Flow diagram

Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

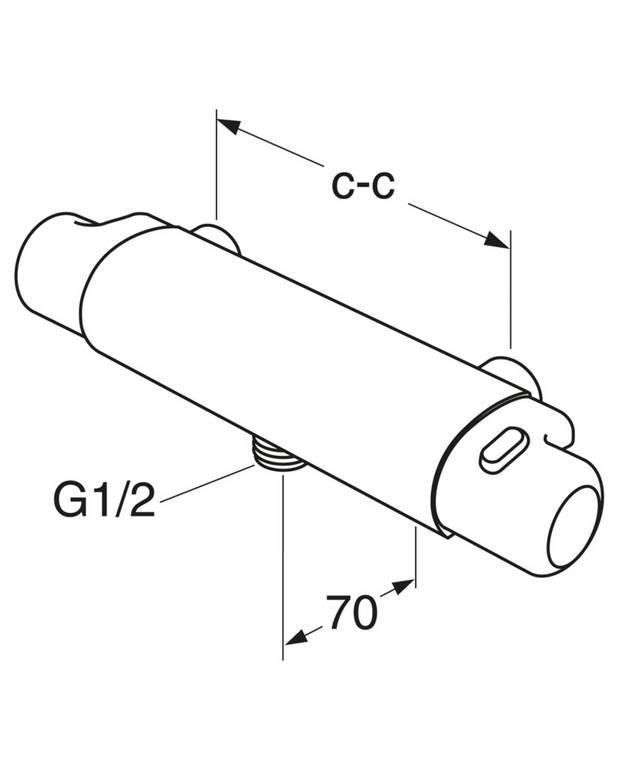

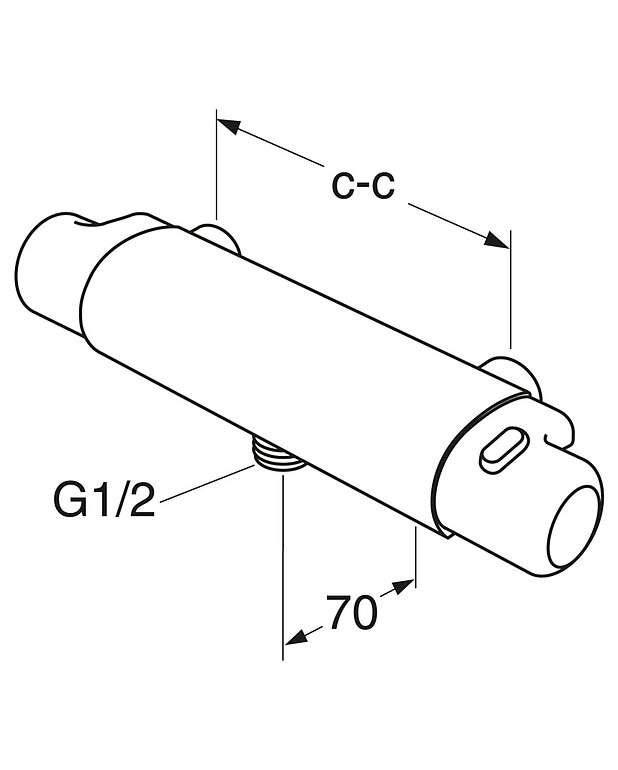

Drawing Assembly instruction Care instruction

Other info

Deep - 90 mm

Length - 290 mm

Width - 165 mm

Features

Organic design by Jon EliasonEasy-to-grasp knob
Built-in automatic hot water block for scald protection
Block button on the temperature side at comfort temperature 38°C
Adjustable max temperature for increased scald protection
Safe Touch reduces heat on the front of the faucet
Responds quickly to changes in pressure and temperature, maintaining even water temperature
Ceramic cartridge ensures non-drip operation and longevity
Type-approved non-return valves in the inlet
Backflow protection in accordance with SS-EN 1717 [EB]
Can be expanded with bathtub spout
