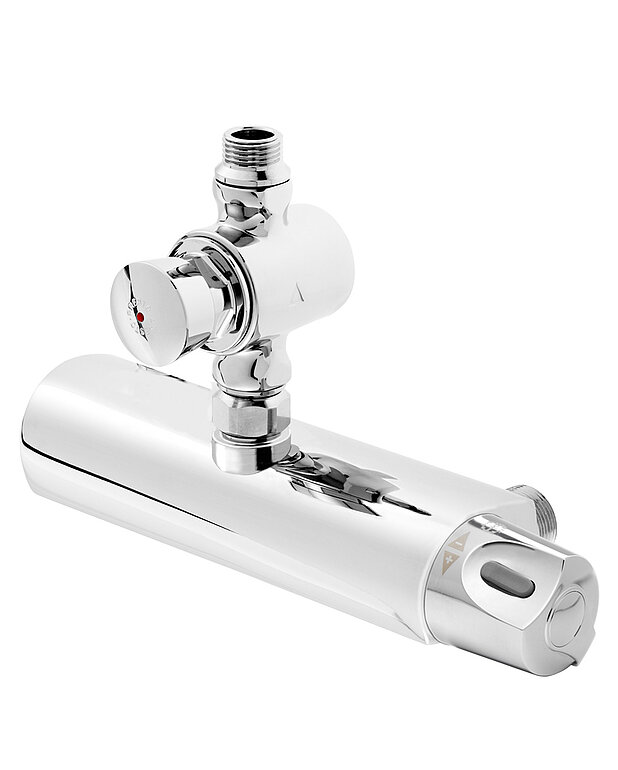

Shower mixer Nautic

Shower mixer Nautic

  • RSK-nr: |
  • ART-nr: GB41205364 |
  • EAN-nr: 7393792225557
Time valve, 160 c-c
  • Time-set pressure valve (Presto), with adjustable flow
  • Safe Touch reduces the heat on the front of the faucet
  • Maintains even water temperature upon pressure and temperature changes
Safe_touch Even_temperature Electronic.DW
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • Complies with Safe Water installation requirements.
Specifications Product datasheet PDF with product image Product image Flow diagram
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

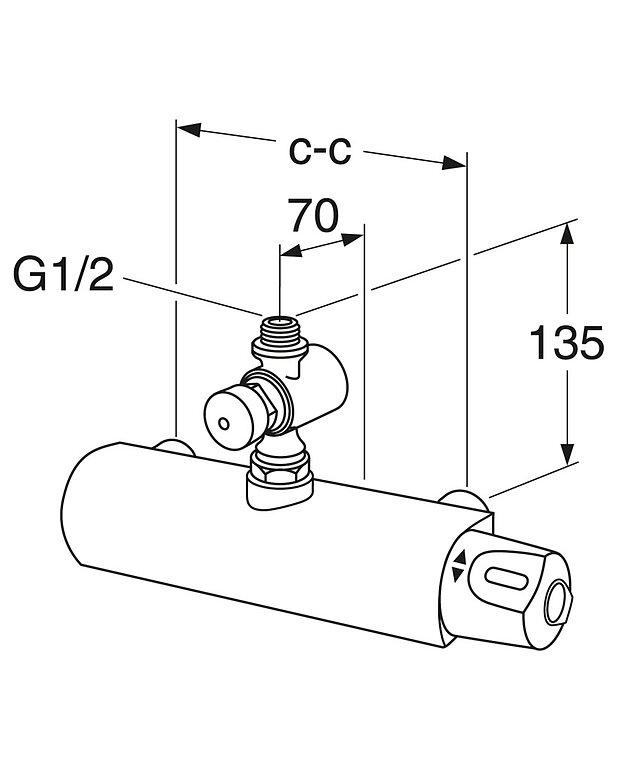

Drawing Assembly instruction Care instruction
Other info

The mixer is also available as 150 c-c with item number GB41215364, RSK-no. 8425491

Deep - 90 mm
Length - 395 mm
Width - 165 mm
Features
  • Timeless and harmonic design
  • All components made with food-safe materials
  • Time-set pressure valve (Presto) flush time approx. 30 seconds, adjustable flow
  • Built-in automatic hot water block for scald protection
  • Block button on the temperature side at comfort temperature
