Shower mixer Atlantic - thermostat, 40 c-c

Shower mixer Atlantic - thermostat, 40 c-c

  • RSK-nr: |
  • ART-nr: GB41205124 |
  • EAN-nr: 7393792233330
  • Current rating is 3.2 out of 5
  • 1
  • 2
  • 3
  • 4
  • 5
(293)
With shower connection upwards
  • 40 c-c for mounting with exposed plumbing
  • All through pipe connection
  • Safe Touch reduces heat on the front of the faucet
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
Specifications Product datasheet PDF with product image Product image
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

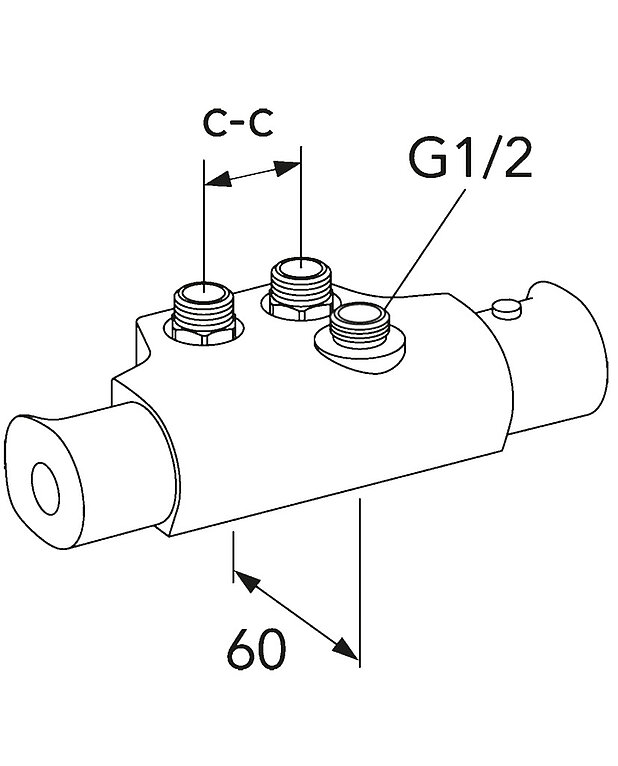

Drawing Assembly instruction
Other info
Deep - 70 mm
Length - 365 mm
Width - 105 mm
Features
  • 40 c-c for mounting with exposed plumbing
  • All through pipe connection
  • Built-in automatic hot water block for scald protection
  • Block button on the temperature side at comfort temperature 38°C
  • Adjustable max temperature for increased scald protection
  • Safe Touch reduces heat on the front of the faucet
  • Responds quickly to changes in pressure and temperature, maintaining even water temperature
  • Ceramic cartridge ensures non-drip operation and longevity
  • Type approved non-return valves in the inlet
  • Backflow protection in accordance with SS-EN 1717 [EB]
  • Can be combined with shower column Round or Square
