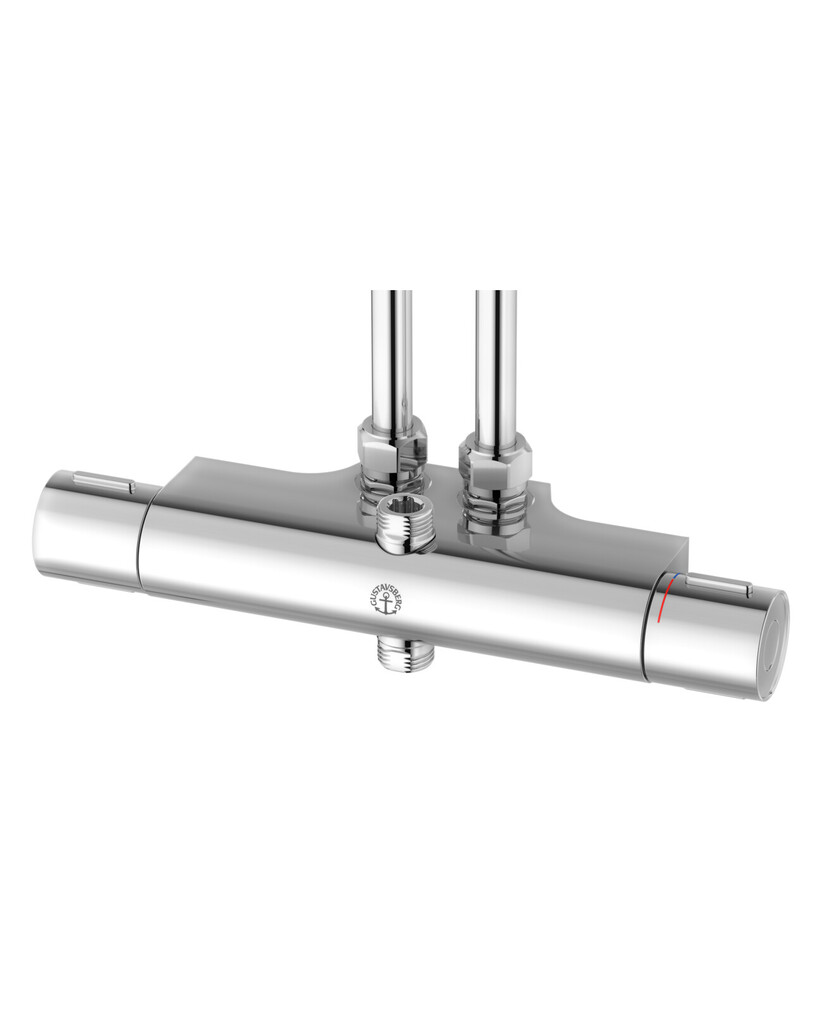

Shower mixer New Nautic - Thermostat

Shower mixer New Nautic - Thermostat

  • RSK-nr: |
  • ART-nr: GB412024020 |
  • EAN-nr: 7391530076362
Connection can be shifted, outlet up & down, 40 c-c, lead-free
  • Safe Touch reduces the heat on the front of the faucet
  • Maintains even water temperature upon pressure and temperature changes

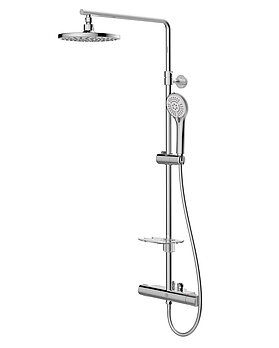

  • Can be expanded with bathtub spout
Smart_inside Safe_touch Even_temperature Lead_free
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • Complies with Safe Water installation requirements.
Specifications Product datasheet PDF with product image Product image Flow diagram
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

Drawing Assembly instruction Care instruction
Other info
Deep - 65 mm
Length - 80 mm
Width - 285 mm
Max. tap capacity (at 300 kPa): 0,465 l/s
Pressure loss with flow (0,33 l/s) 151 kPa
Features
  • Timeless and harmonic designAll components made with food-safe materials
  • 40 c-c for mounting with exposed plumbing
  • Pipe connection can be shifted downwards
  • Built-in automatic hot water block for scald protection
  • Block button on the temperature side at comfort temperature 38°C
  • Adjustable max temperature for increased scald protection
  • Safe Touch reduces heat on the front of the faucet
  • Responds quickly to changes in pressure and temperature, maintaining even water temperature
  • Ceramic cartridge ensures non-drip operation and longevity
  • Type-approved non-return valves in the inlet
  • Backflow protection in accordance with SS-EN 1717 [EB]
  • Can be expanded with bathtub spout
