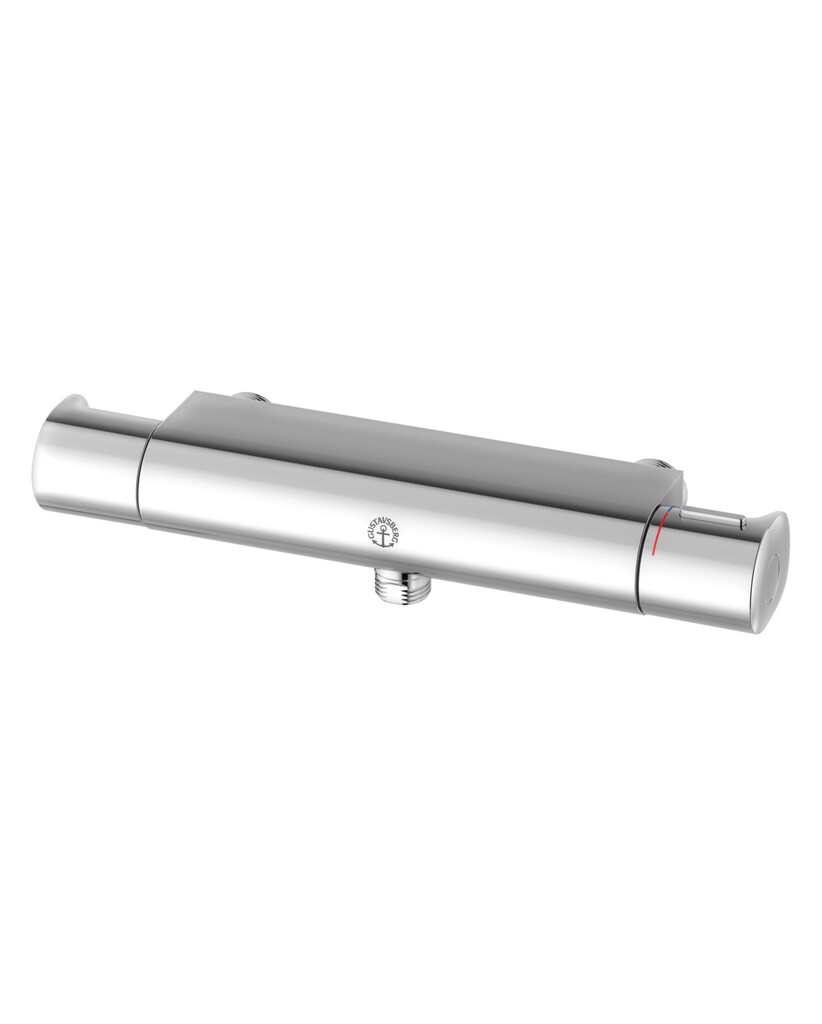

Shower mixer Atlantic - thermostat

Shower mixer Atlantic - thermostat

  • RSK-nr: |
  • ART-nr: GB412013040 |
  • EAN-nr: 7391530075792
With shower connection down, lead-free, 160 c-c
  • Safe Touch, minimizes the heat on the front of the mixer
  • Even water temperature during pressure and temperature changes
  • Contains less than 0.1% lead
Smart_inside Safe_touch Even_temperature Lead_free
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
Specifications Product datasheet PDF with product image Product image Flow diagram
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

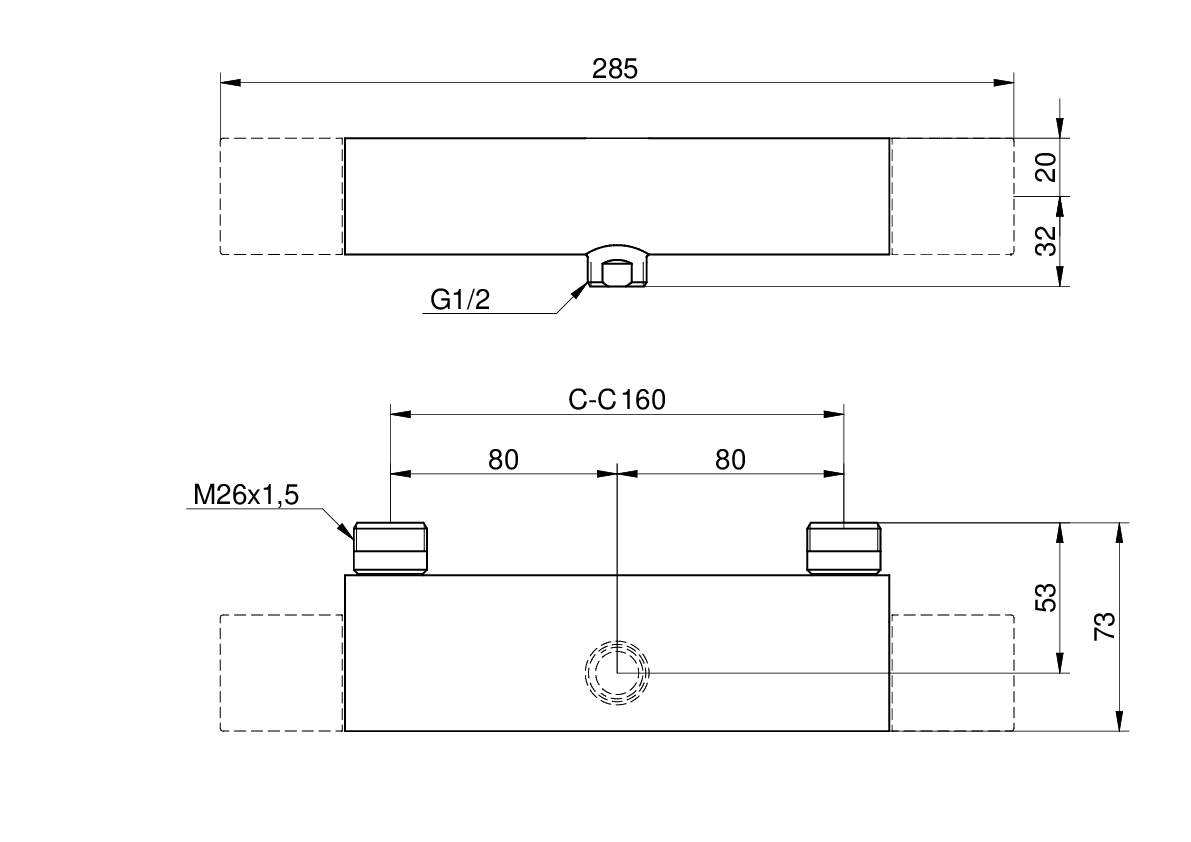

Drawing Assembly instruction Care instruction
Other info
Deep - 55 mm
Length - 80 mm
Width - 285 mm
Max. tap capacity (at 300 kPa): 0,425 l/s
Pressure loss with flow (0,33 l/s) 181 kPa
Features
  • Knob with clear color marking for hot and coldBuilt-in automatic hot water shut-off for scalding protection
  • Adjustable maximum temperature for increased scalding protection
  • Lock button on the temperature side at a comfort temperature of 38°C
  • Safe Touch, minimizes the heat on the front of the mixer
  • Reacts quickly to pressure and temperature changes in the water flow, which provides an even water temperature
  • Ceramic shut-off for drip protection and long life, also simplifies use for small and weak hands
  • Type-approved non-return valves in the inlets
  • Backflow protection according to SS-EN 1717 [EB]

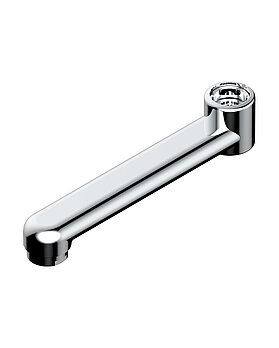

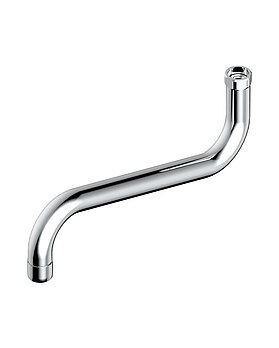

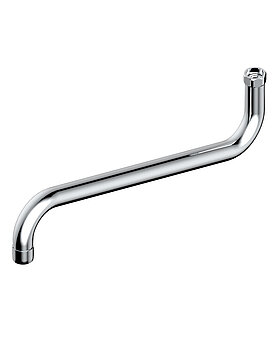

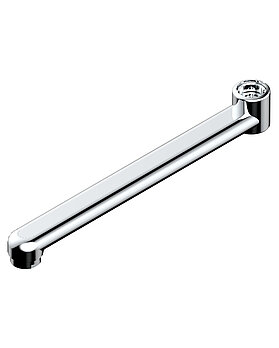

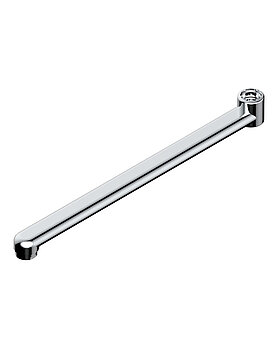

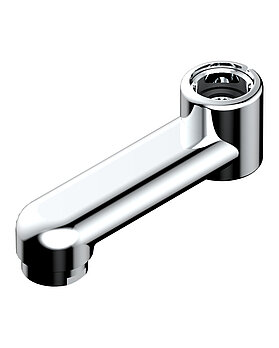

  • Can be completed with Gustavsberg bathtub spout
