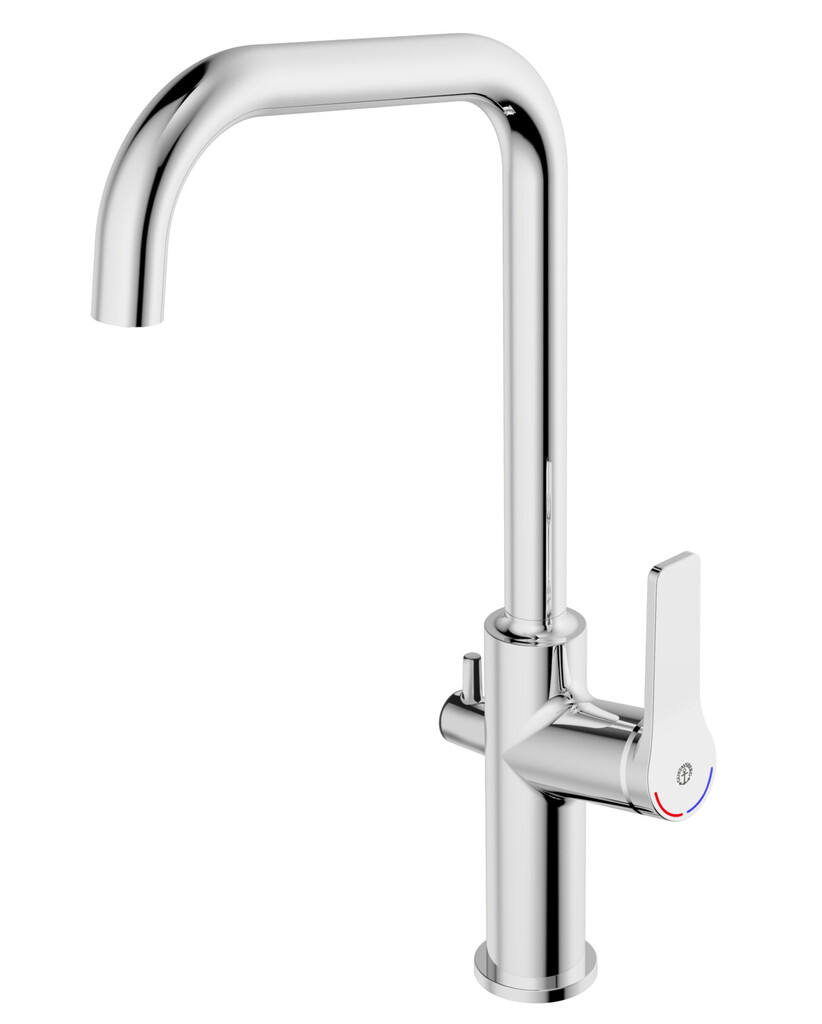

Kitchen mixer Epic - high spout

Kitchen mixer Epic - high spout

  • RSK-nr: |
  • ART-nr: GB41209996 |
  • EAN-nr: 7393792233828
Chrome, with dishwasher shut-off
  • A kitchen mixer in modern design
  • Soft move, technology for smooth and precise handling
  • Eco-flow for water and energy efficiency
Eco_flow
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
Specifications Product datasheet PDF with product image Product image Flow diagram
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 70°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

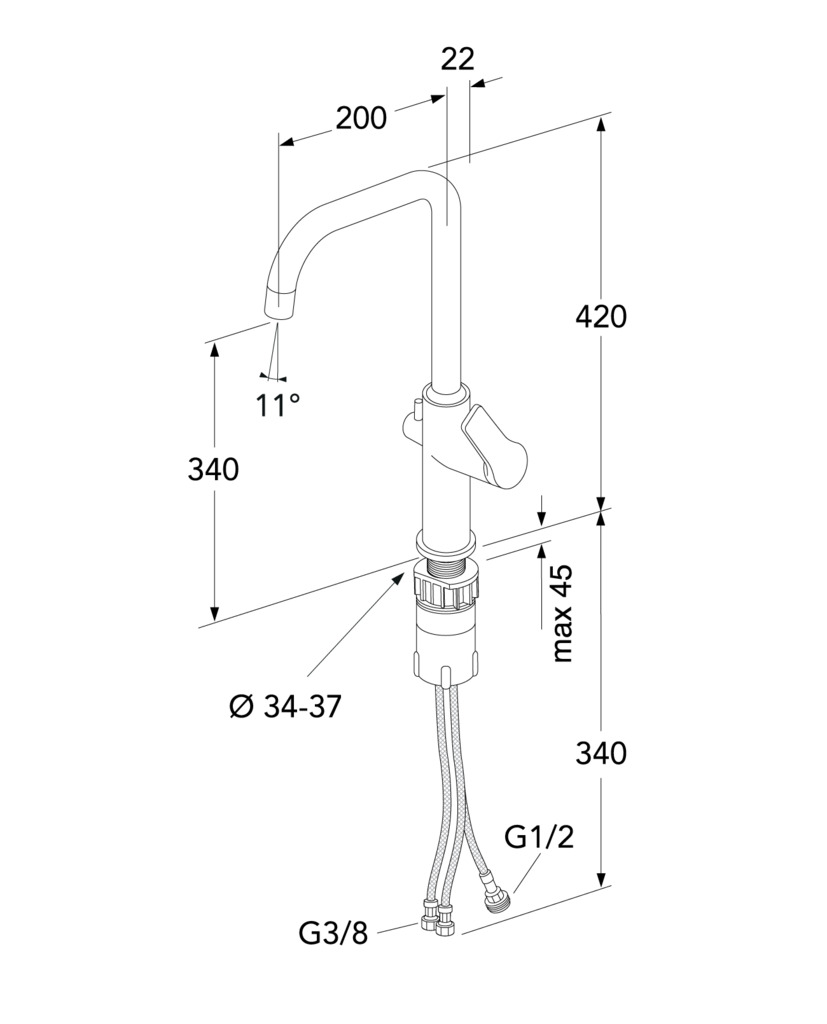

Drawing Assembly instruction Care instruction
Other info
Deep - 40 mm
Length - 419 mm
Width - 232 mm
Max. tap capacity (at 300 kPa): 0,156 l/s
Pressure loss with flow (0,2 l/s) 494 kPa
Features
  • A kitchen mixer in modern designLever with clear color marking for hot and cold water
  • Pivoting spout 110°
  • Soft move, technology for smooth and precise handling
  • Ceramic seal for drip-free operation and long service life
  • Eco-flow for water and energy efficiency
  • All components made in food approved materials
  • Type-approved flexible water connection with 3/8" for simpler installation
  • Backflow protection in accordance with SS-EN 1717 [AA]
  • Available in different colours
