Kitchen mixer New Nautic - high Spout

Kitchen mixer New Nautic - high Spout

  • RSK-nr: |
  • ART-nr: GB41206097R |
  • EAN-nr: 7393792234825
Energy class C, dishwasher shut-off, G3/8 con.
  • Easy grip lever with clear colour marking for hot and cold
  • Soft move, technology for smooth and precise handling
  • Pivoting spout 110° (0° and 60° block included)
Eco_flow AdjustableFlow Quick fit
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
Specifications Product datasheet PDF with product image BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Product image Flow diagram
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 70°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

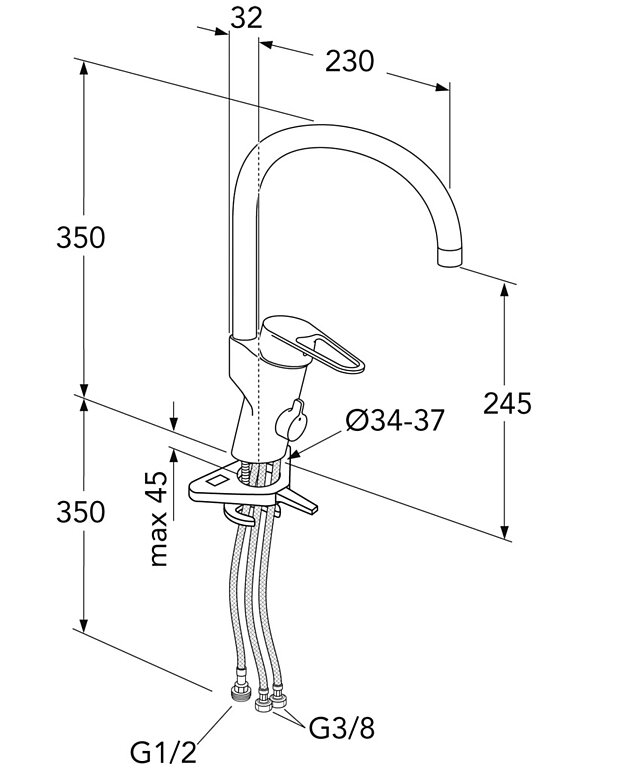

Drawing Assembly instruction
Other info
Deep - 350 mm
Length - 260 mm
Width - 50 mm
Max. tap capacity (at 300 kPa): 0,123 l/s
Pressure loss with flow (0,2 l/s) 789 kPa
Features
  • Design that makes cleaning of larger pots and buckets easier
  • Easy grip lever with clear colour marking for hot and cold
  • Soft move, technology for smooth and precise handling
  • Eco-flow for water and energy efficiency
  • Eco-stop, adjustable maximum flow
  • Pivoting spout 110° (0° and 60° block included)
  • Outlet for table-top dishwasher
  • Ceramic seal to prevent dripping and ensure a long service life
  • Smart inside, sustainable construction for future requirements
  • Energy class C
  • Adjustable max temperature for improved scald protection
  • All components made in food approved materials
  • Brass in DZR quality
  • Patented quick fixation nut for easy installation
  • Type-approved 3/8" flexible water connection for simpler installation
  • Backflow protection in accordance with SS-EN 1717 [AA]
  • Can be equipted with elongated lever
  • Design Propeller AB
