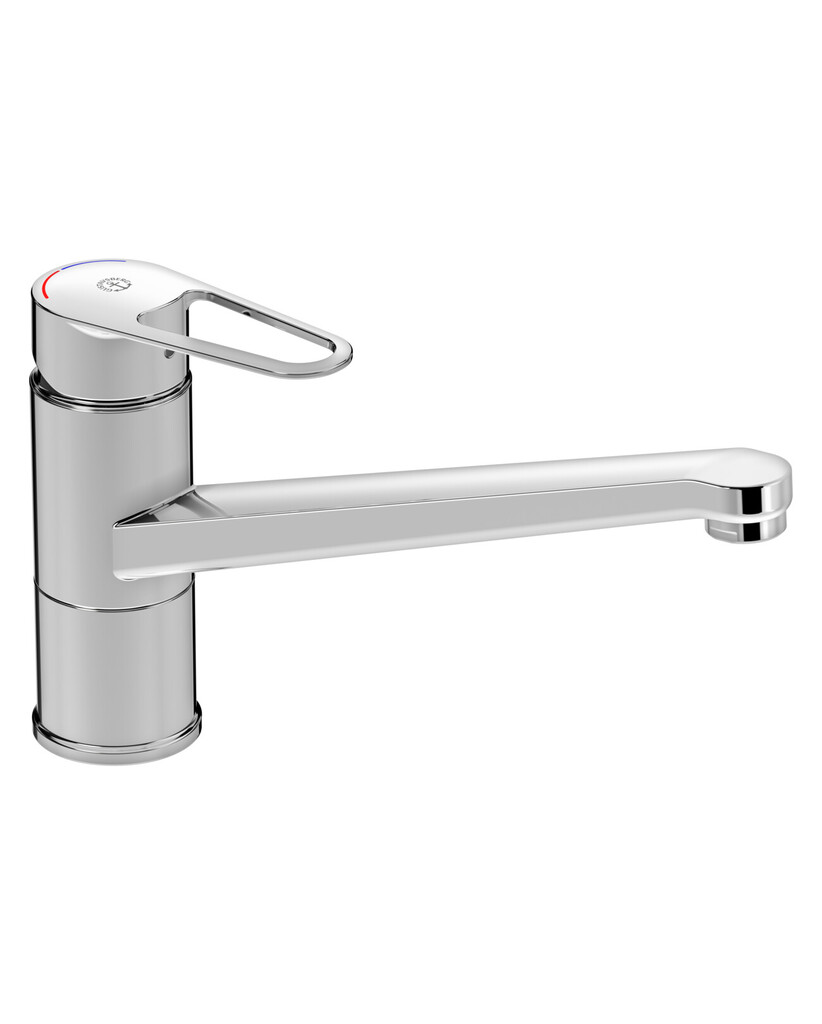

Kitchen mixer New Nautic - low Spout

Kitchen mixer New Nautic - low Spout

  • RSK-nr: |
  • ART-nr: GB41206055 |
  • EAN-nr: 7393792235310
Energy class C
  • Easy grip lever with clear colour marking for hot and cold
  • Soft move, technology for smooth and precise handling
  • Pivoting spout 110° (0° and 80° block included)
Eco_flow Cold_start AdjustableFlow Quick fit
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
Specifications Product datasheet PDF with product image Product image Flow diagram
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 70°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

Drawing Assembly instruction
Other info
Deep - 75 mm
Length - 295 mm
Width - 285 mm
Max. tap capacity (at 300 kPa): 0,122 l/s
Pressure loss with flow (0,2 l/s) 811 kPa
Features
  • Easy grip lever with clear colour marking for hot and cold
  • Soft move, technology for smooth and precise handling
  • Eco-flow for water and energy efficiency
  • Eco-stop, adjustable maximum flow
  • Pivoting spout 110° (0° and 80° block included)
  • Ceramic seal to prevent dripping and ensure a long service life
  • Smart inside, sustainable construction for future requirementsEnergy class C
  • Adjustable max temperature for improved scald protection
  • All components made in food approved materials
  • Brass in DZR quality
  • Patented quick fixation nut for easy installation
  • Type-approved flexible water connection for simpler installation
  • Backflow protection in accordance with SS-EN 1717 [AA]

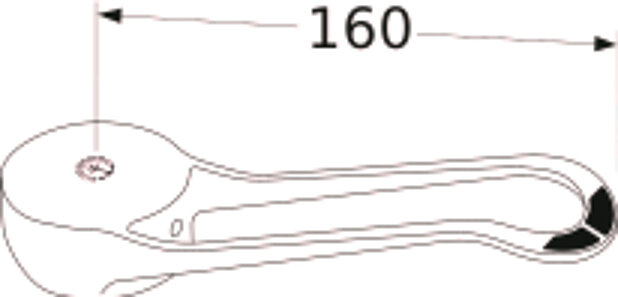

  • Can be equipted with elongated lever
  • Design Propeller AB
