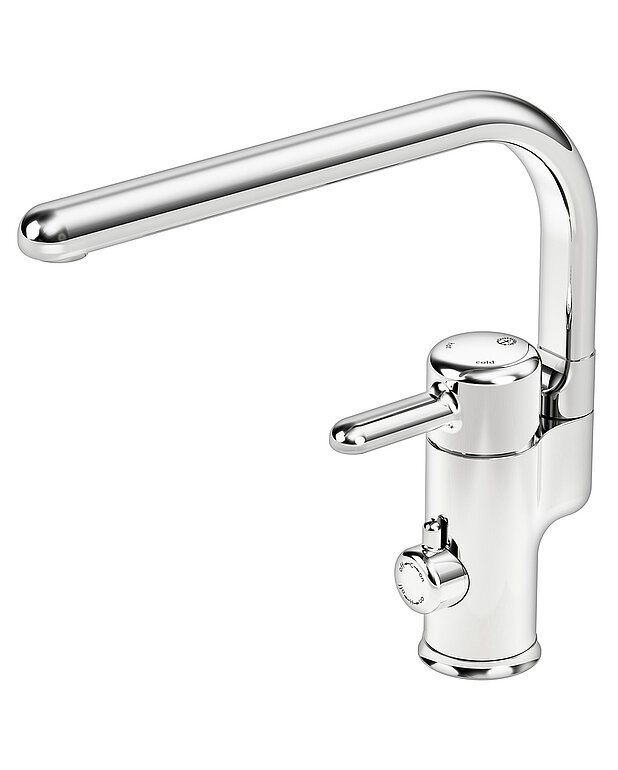

Kitchen mixer Logic - high spout

Kitchen mixer Logic - high spout

  • RSK-nr: |
  • ART-nr: GB41204996 |
  • EAN-nr: 7393792227025
With dishwasher shut-off
  • Energy class B, saves energy and water
  • Adjustable comfort flow and comfort temperature
  • Optional coloured levers
ECO-TAP/ENERGY-SAVING eco_tap_vattenspar_cmyk
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • Complies with Safe Water installation requirementsEnergy class B, 1.90 kWh
Specifications Product datasheet PDF with product image BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Product image Flow diagram
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

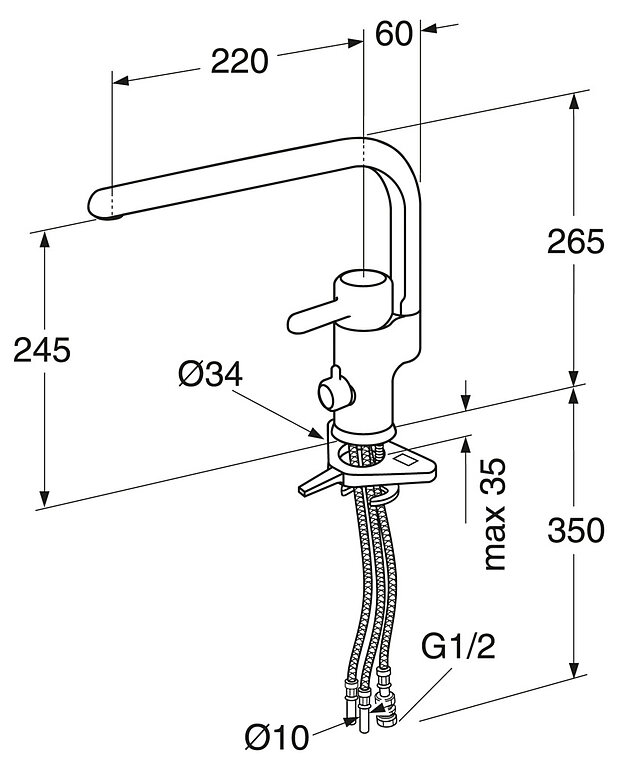

Drawing Assembly instruction Care instruction
Other info
Deep - 70 mm
Length - 440 mm
Width - 275 mm
Features
  • Organic design by Jon EliasonEnergy class B, saves energy and water
  • All components made with food-safe materials
  • Pivoting spout 110° (0° and 60° block included)
  • Dishwasher outlet reversible between cold water and warm water
  • Adjustable comfort flow (water-saving)
  • Adjustable comfort temperature (energy-saving)
  • Spring return to comfort position (water-saving)
  • Adjustable max temperature for increased scald protection
  • Ceramic cartridge ensures non-drip operation and longevity
  • Backflow protection in accordance with SS-EN 1717 [AA]
  • Optional coloured levers
