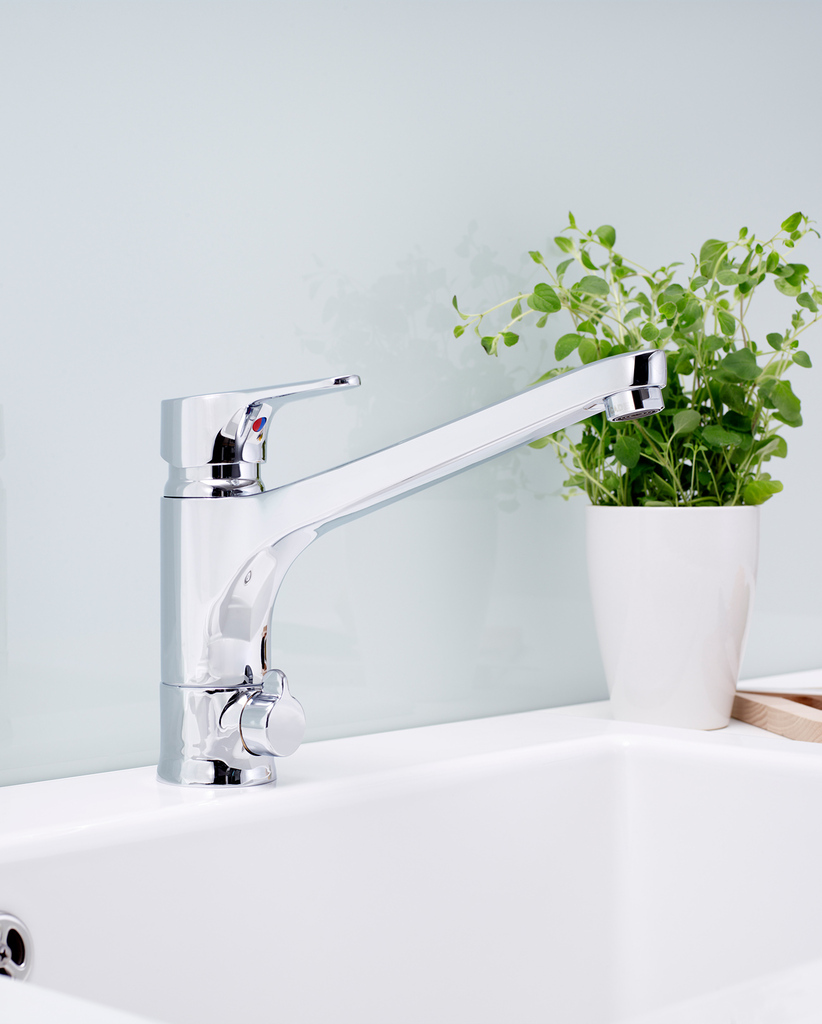

Kitchen mixer Nautic - low cast spout

Kitchen mixer Nautic - low cast spout

  • RSK-nr: |
  • ART-nr: GB41204095 |
  • EAN-nr: 7393792221146
With dishwasher shut-off
  • Energy class B, saves energy and water
  • Adjustable comfort flow and comfort temperature
  • Outlet for table-top dishwasher in rear
ECO-TAP/ENERGY-SAVING ECO-TAP/WATER-SAVING
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • Complies with Safe Water installation requirementsEnergy class B, 1.88 kWh
Specifications Product datasheet PDF with product image BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Product image Flow diagram
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 70°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

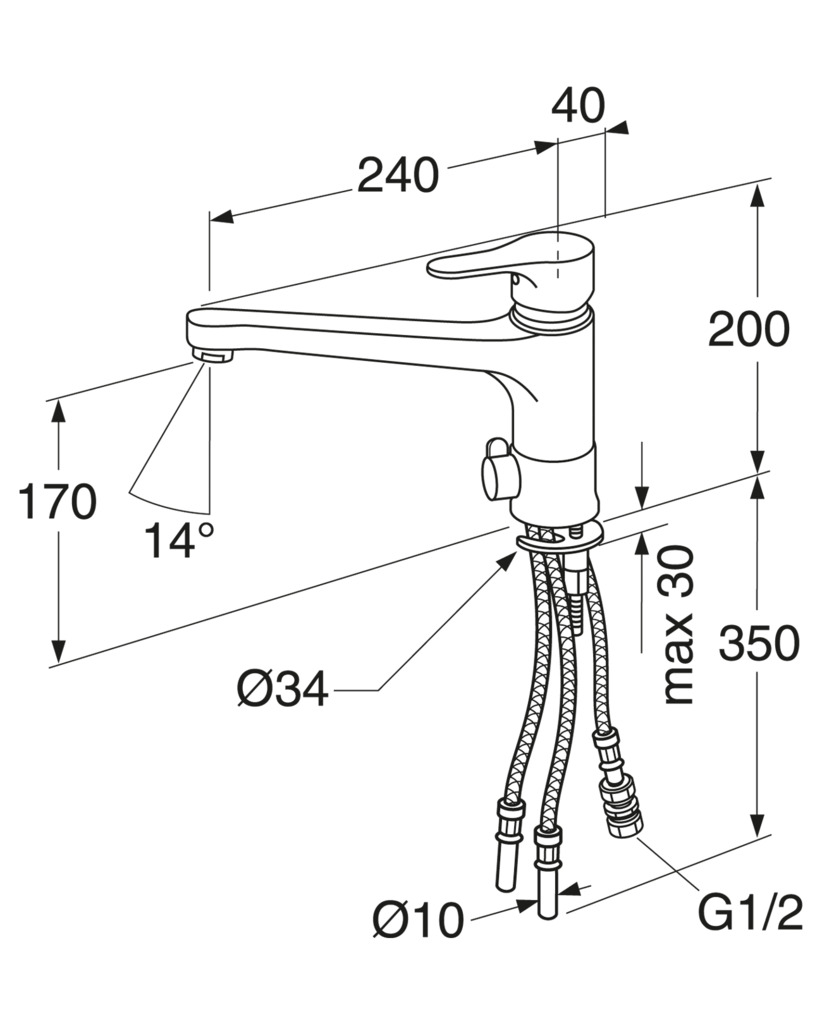

Drawing Assembly instruction Care instruction
Other info
Deep - 75 mm
Length - 290 mm
Width - 290 mm
Max. tap capacity (at 300 kPa): 0,24 l/s
Pressure loss with flow (0,2 l/s) 208 kPa
Features
  • Timeless and harmonic design
  • Energy class B, saves energy and water
  • All components made with food-safe materials
  • Spout pivots 110° (block pin as accessory)
  • Dishwasher outlet reversible between cold water and warm water
  • Outlet for table-top dishwasher
  • Adjustable comfort flow (water-saving)
  • Adjustable comfort temperature (energy-saving)
  • Spring return to comfort position (water-saving)
  • Adjustable max temperature for increased scald protection
  • Ceramic cartridge ensures non-drip operation and longevity
  • Backflow protection in accordance with SS-EN 1717 [AA]
