Washbasin Mixer O.novo Kids

Washbasin Mixer O.novo Kids

  • RSK-nr: |
  • ART-nr: GB45216251P4 |
  • EAN-nr: 4051202797904
(1038)

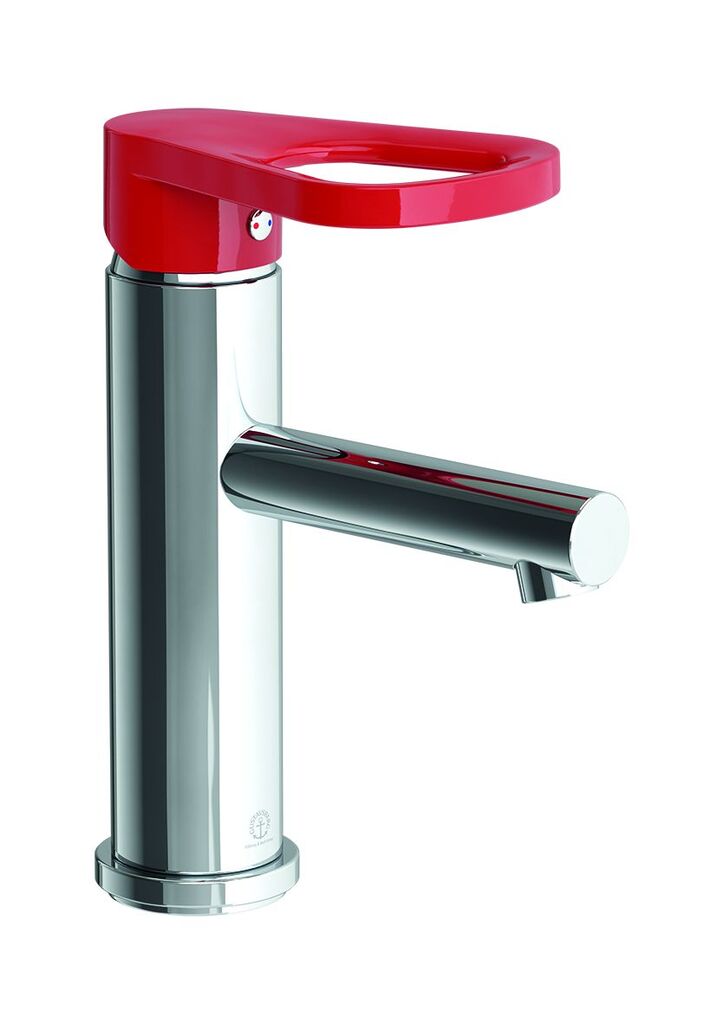

Cherry Red

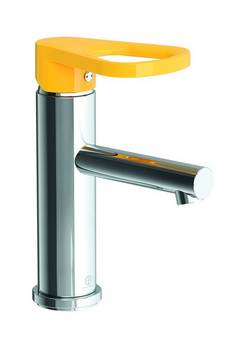

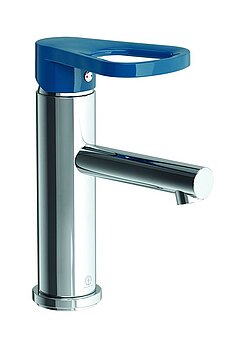

  • Ergonomic, child-friendly handle in 3 bright colours: Cherry Red, Sunshine Yellow, Ocean Blue
  • Intuitive and easy to use – children can operate the lever by themselves and easily adjust the pressure and temperature
  • Taps and fittings with reliable scald protection as the maximum temperature can be set individually when installed

Product information

Standards & Approvals
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 70°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

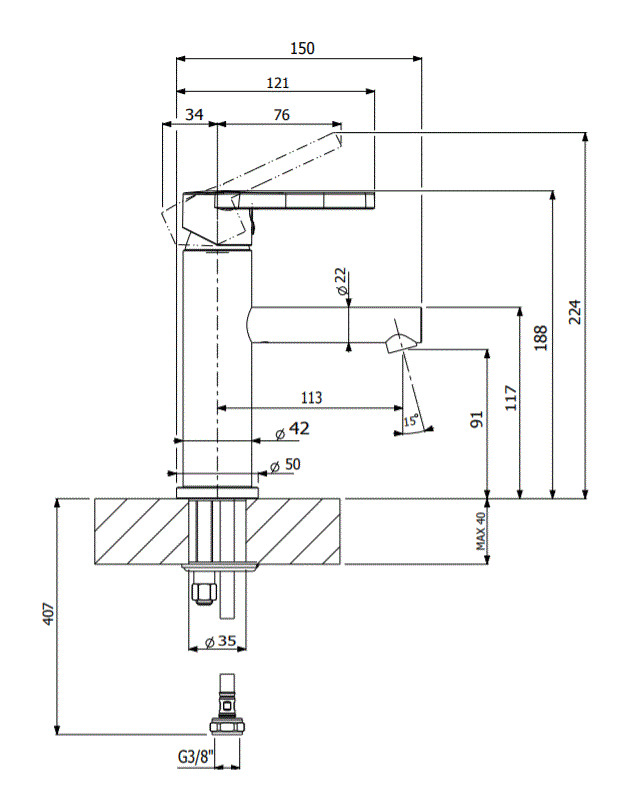

Drawing Assembly instruction
Other info
Deep - 188 mm
Length - 150 mm
Width - 70 mm
Features
  • Ergonomic, child-friendly handle in 3 bright colours: Cherry Red, Sunshine Yellow, Ocean Blue
  • Intuitive and easy to use – children can operate the lever by themselves and easily adjust the pressure and temperature
  • Taps and fittings with reliable scald protection as the maximum temperature can be set individually when installed
  • Maximum flow 5l/min
  • Single-lever washbasin mixers with DVGW certification
  • Backflow protection AA
  • Cooperation with Villeroy & Boch, where there are toilets and washbasins as well for this collection
