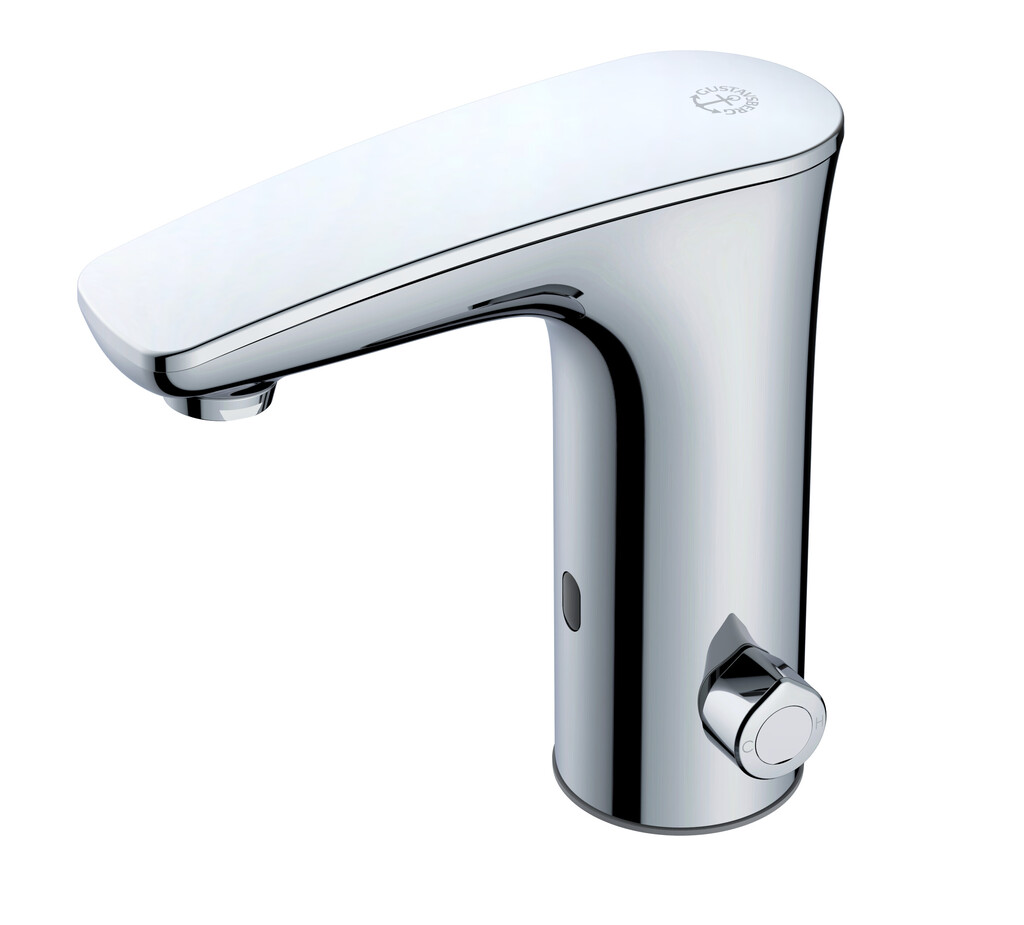

Washbasin mixer Sensoric 1.0

Washbasin mixer Sensoric 1.0

  • RSK-nr: |
  • ART-nr: GB41218881 |
  • EAN-nr: 7391530080826
Lead-free, sensor mixer
  • Sensor that saves water and energy
  • Contains less than 0.1% lead
  • Adjustable comfort temperature
Sensor_controlled Lead_free
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
Specifications Product datasheet PDF with product image Product image Flow diagram
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 70°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

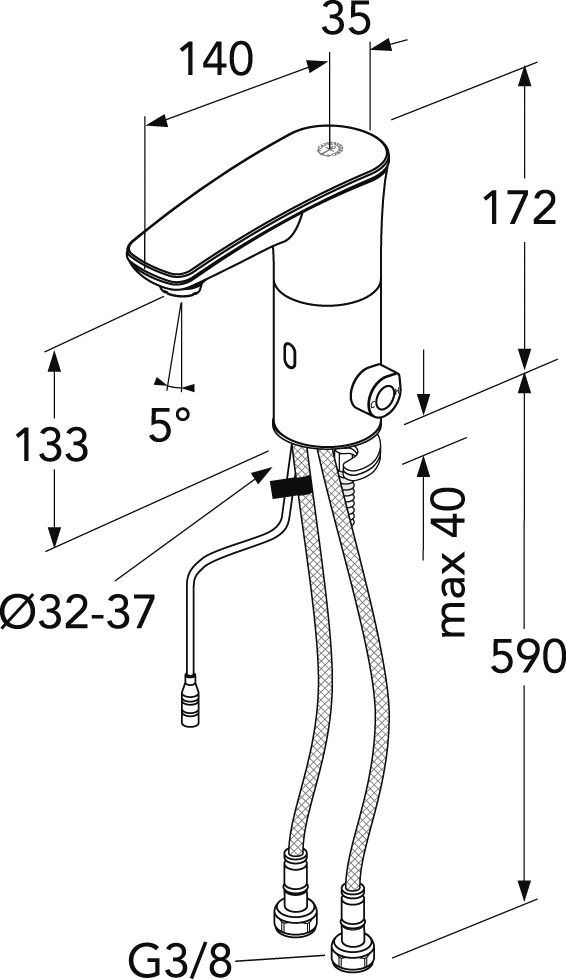

Drawing Assembly instruction Care instruction
Other info
Deep - 173 mm
Length - 175 mm
Width - 77 mm
Max. tap capacity (at 300 kPa): 0,032 l/s
Features
  • Timeless and harmonic design
  • Contains less than 0.1% lead
  • Can be modified for pre-temperature or cold water only
  • 9V system, Batteries (AA standard) are included

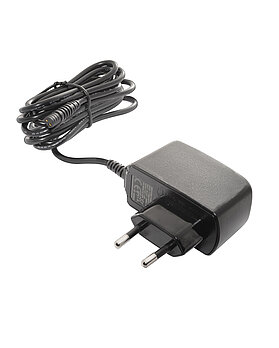

  • Possible to add a 240 V supply (3m cable)
  • Leed & Breeam adapted Flow, limited to 1,9 or 4,5 l/min (PCA areators included in package)
  • Backflow protection in accordance with SS-EN 1717 [AA]
  • Max flow time 1 min
