- Alias number: |
- Tootenumber: GB111510201311 |
- EAN number: 7391530069203
- Easy-to-clean and minimalistic design
- With open flush edge for simplified cleaning
- Low flush button with a neat design
Tooteinfo
Vastavustunnistused
-
2021:1
-
-
10
-
-
S-P-04161
-
- CE heakskiiduga, mõõdustandardit SS-EN 33 ja funktsioonistandardit SS-EN 997. Vastab ohutu veevärgi nõuetele.
Tehnilised andmed
Tooteleht
BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa)
Toimivusdeklaratsioon
Tootepilt
Vooluhulga graafik
Paigaldus ja hooldus
Pakendiinfo
Pikkus
: 360 mm
|
Laius
: 680 mm
|
Kõrgus
: 940 mm
Kaal
: 33 kg
Number pakendis
: 1

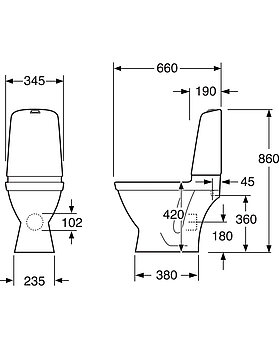

Toote mõõtmetega joonise leiad piltide alt.
Tehniline info
- CO2e jalajälg : 76.73 kg
Omadused
- Made from hygienic, durable and densely sintered sanitary wareEasy-to-clean and minimalistic design
- Glazed under the flush edge for simplified cleaning
- Factory set dual flush 2.6/4L
- Flush volume adjustable up to 6L
- Low flush button with a neat design
- Seat height: 420mm
- Full-coverage, condensation-free cistern
- Quiet refilling
- Can be combined with armrest and care seat for improved accessibility
- Several seat options in two different colours, white or black
- With open, glazed flush edge for simplified cleaning
- Flushes all the way up to the rim for improved hygiene
- The P-trap makes it possible to connect the waste pipe to the floor, straight against the wall, or to the side at any angle
- Adjustable water connection R1/2´ for flexible installation
- Concealed mounting to floor with two screws or adhesive installation
- Floor bracket for easier installation
- Suitable for corner installation
