Dušikomplekt Atlantic 2.1 – termostaat

Dušikomplekt Atlantic 2.1 – termostaat

  • Alias number: |
  • Tootenumber: GB412013870 |
  • EAN number: 7391530076416
Sh dušilift, pliivaba, energiaklass A, 160 c-c
  • Complete with energy class A shower set
  • Maintains even water temperature during pressure and temperature changes
  • Contains less than 0.1% lead
Smart_inside Safe_touch Even_temperature Lead_free
Tooteinfo Tooteinfo Leia edasimüüja Teised sarnased tooted Lisatarvikud ja kinnitusdetailid Muud huvitavad tooted Leia edasimüüja

Tooteinfo

Vastavustunnistused
Tehnilised andmed Tooteleht PDF with product image BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Tootepilt Vooluhulga graafik
Paigaldus ja hooldus

Enne paigaldamist tuleb torude loputamiseks lasta veel joosta. Segisti on ühendatud paremalt külmaveetoruga ja vasakult kuumaveetoruga. Veesurve: max 1000 kPa, min 50 kPa. Kuuma vee temperatuur: max 80 °C, min 45 °C. Me ei vastuta valest paigaldusest tuleneva kahju eest.

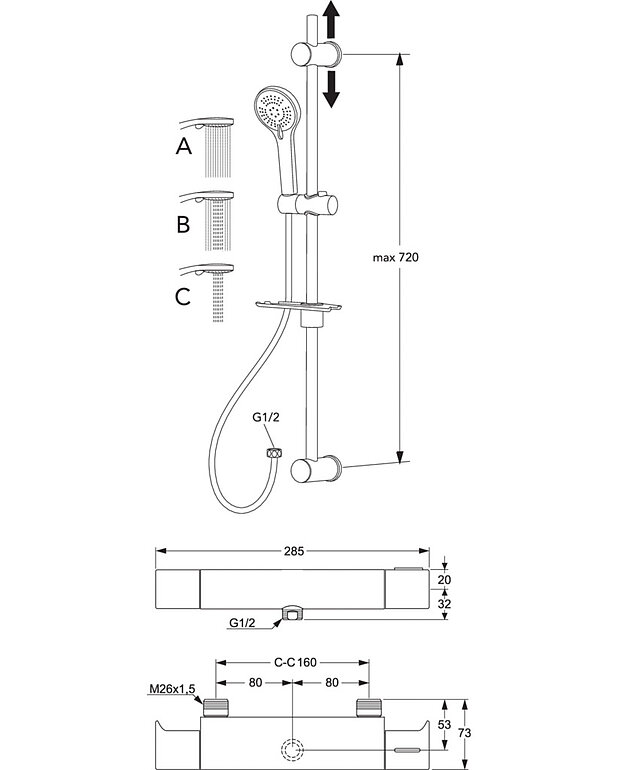

Joonis Paigaldusjuhendid
Muu info
Sügavus -
Kõrgus -
Laius -
Max. tap capacity (at 300 kPa): 0,1 l/s
Pressure loss with flow (0,1 l/s) 300 kPa
Omadused
  • Knob with clear color marking for hot and coldBuilt-in automatic hot water shut-off for scalding protection
  • Adjustable maximum temperature for increased scalding protection
  • Lock button on the temperature side at a comfort temperature of 38°C
  • Safe Touch reduces the heat on the front of the mixer
  • Reacts quickly to pressure and temperature changes in the water flow, which provides an even water temperature
  • Ceramic shut-off for drip protection and long life, also simplifies use for small and weak hands
  • Lead free brass in DZR quality
  • Type-approved non-return valves in the inlets
  • Backflow protection according to SS-EN 1717 [EB]
  • Complete with energy class A shower set
