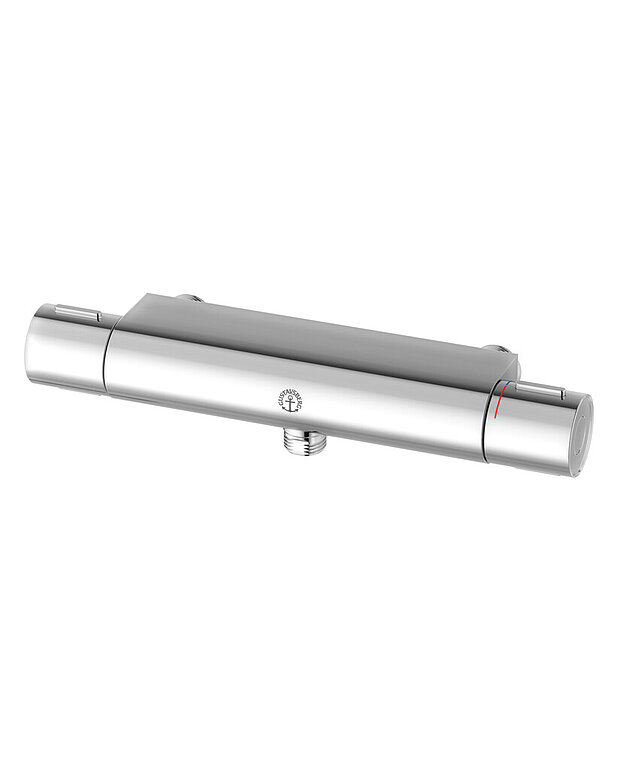

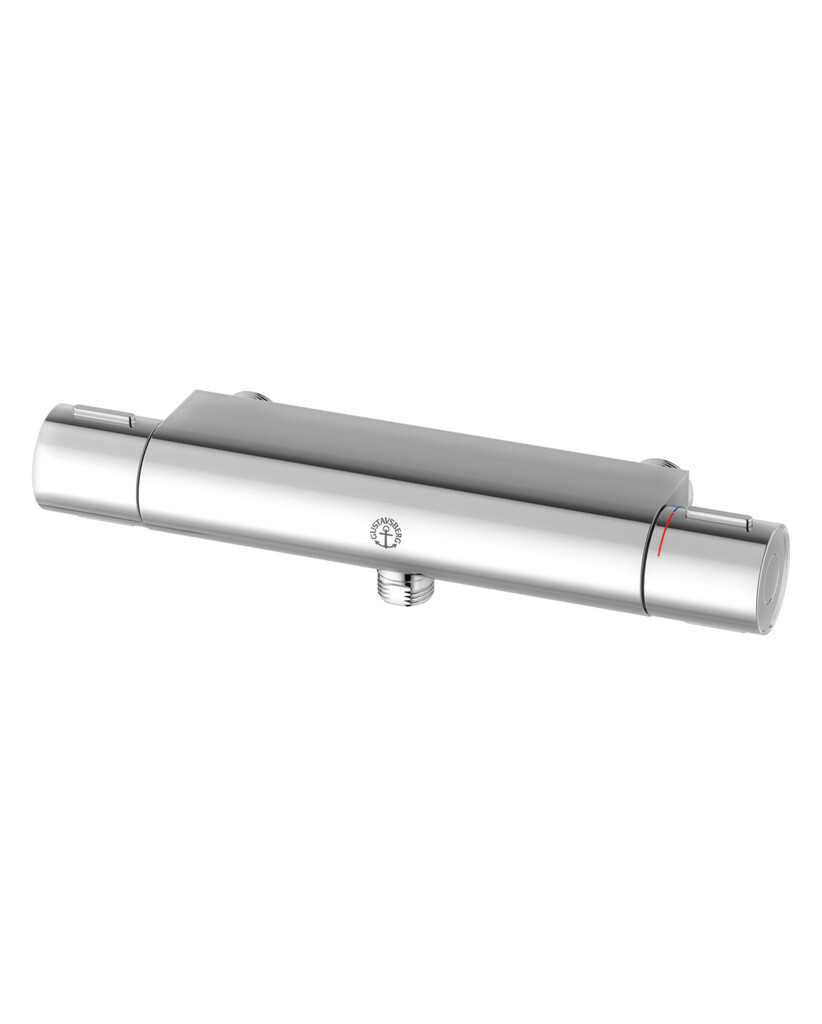

Suihkusekoitin New Nautic – termostaatti

Suihkusekoitin New Nautic – termostaatti

  • LVI-numero: |
  • ART-nr: GB41202304 |
  • EAN-nr: 7391530075747
Ulostulo alaspäin, 160 c-c
  • Safe Touch reduces the heat on the front of the faucet
  • Maintains even water temperature during pressure and temperature changes
  • Can be combined with bathtub spout
Smart_inside Safe_touch Even_temperature
(0 EUR ilman veroa) * Hinnat ovat suositeltavia likimääräisiä hintoja.

Tuotteen tiedot

Standardit & hyväksynnät
Kokoaminen & hoito

Putket on huuhdottava ennen asennusta. Hana kytketään oikealta kylmävesijohtoon ja vasemmalta kuumavesijohtoon. Vedenpaine: enintään 1 000 kPa, vähintään 50 kPa. Kuuman veden lämpötila: enintään 80 °C, vähintään 45 °C. Huomaathan, että emme vastaa vahingoista, jotka johtuvat virheellisestä asennuksesta.

Mittapiirros Asennusohjeet
Muut tiedot
Syvä - 55 mm
Pituus - 80 mm
Leveys - 285 mm
Virtaama (300 kPa): 0,425 l/s
Painehäviö virtaamalla (0,33 l/s) 181 kPa
Ominaisuudet
  • Built-in automatic hot water block for scald protection
  • Block button on the temperature side at comfort temperature 38°C
  • Adjustable max temperature for increased scald protection
  • Safe Touch reduces the heat on the front of the mixer
  • Block button on flow side at comfort flow
  • Reacts quickly to pressure and temperature changes in the water flow, which provides an even water temperature
  • Ceramic shut-off for drip protection and long life, also simplifies use for small and weak hands
  • Type-approved non-return valves in the inlets
  • Backflow protection according to SS-EN 1717 [EB]
  • Can be equipped with grip-friendly knobs for functional adaptation
  • Can be combined with bathtub spout
