Tooteinfo

Vastavustunnistused

Tehnilised andmed Tooteleht PDF with product image BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Tootepilt Vooluhulga graafik

Paigaldus ja hooldus

Enne paigaldamist tuleb torude loputamiseks lasta veel joosta. Segisti on ühendatud paremalt külmaveetoruga ja vasakult kuumaveetoruga. Veesurve: max 1000 kPa, min 50 kPa. Kuuma vee temperatuur: max 80 °C, min 45 °C. Me ei vastuta valest paigaldusest tuleneva kahju eest.

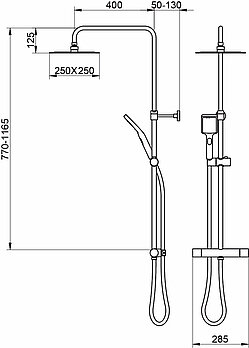

Joonis Paigaldusjuhendid

Muu info

Sügavus - 1265 mm

Kõrgus - 655 mm

Laius - 285 mm

Max. tap capacity (at 300 kPa): 0,425 l/s

Pressure loss with flow (0,33 l/s) 181 kPa

Omadused

Super thin round roof shower Ø250 mm
Easy clean – the design of the shower nozzles means that lime deposits can be effectively wiped away
Ceiling shower and shower arm are rotatable and can be adjusted completely individually
400 mm long shower arm provides a generous shower space
Telescopically adjustable height 770-1165 mm
Flexible wall bracket 50-130 mm for easy installation
3-function hand shower with button
Hand shower on sliding
1.75 m chrome-plated hose
Reverse function in the flow knob
Built-in automatic hot water barrier for scalding protection
Lock button at comfort temperature 38°C
Safe Touch reduces the heat on the front of the mixer
Reacts quickly to pressure and temperature changes in the water flow, which provides an even water temperature
Ceramic shut-off for drip protection and long life, also simplifies use for small and weak hands
Type-approved non-return valves in the inlets
Backflow protection according to SS-EN 1717 [EB]

Peadušiga dušikomplekt Atlantic Round
