Bathroom sink faucet Nautic

Energy class A, saves water and energy

Bathroom sink faucet Nautic

With strainer plug

  • Energy class A, saves water and energy
  • Eco-start, 17°C when lever straight forward
  • Adjustable comfort flow and comfort temperature

Article number: GB41214043
EAN-number: 7393792221887

Remove from listADD TO WISHLISTLoading...

FIND A RETAILER

PRODUCT INFORMATION

Specifications

Product datasheet

Product datasheet with product image

BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa)

Product image

Flow chart

Reach

Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 70°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

Assembly Instruction

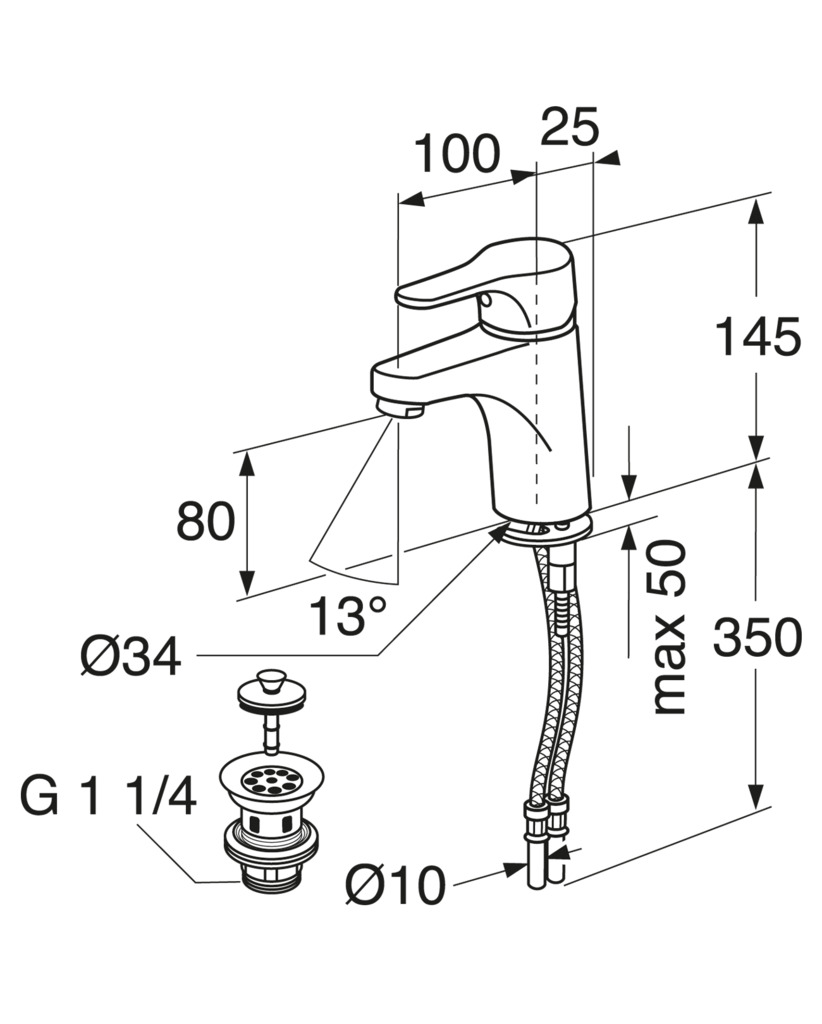

Drawing

Care instruction

Standards & Approvals

  • saker vatten
  • saker vatten
  • Complies with Safe Water installation requirementsEnergy class A, 1.41 kWh

Other info

  • Deep - 70 mm
  • Length - 225 mm
  • Width - 205 mm
  • Max. tap capacity (at 300 kPa): 0,24 l/s
  • Pressure loss with flow (0,1 l/s) 52 kPa

Features

  • Timeless and harmonic design by Rolf Herrström
  • Energy class A, saves water and energy
  • All components made with food-safe materials
  • Adjustable comfort flow (water-saving)
  • Adjustable comfort temperature (energy-saving)
  • Spring return to comfort position (water-saving)
  • Eco-start, 17°C when lever straight forward
  • Adjustable max temperature for increased scald protection
  • Ceramic cartridge ensures non-drip operation and longevity
  • Backflow protection in accordance with SS-EN 1717 [AA]
Show moreShow less

Included in the delivery

  • Strainer plug, GB41637445.
